Belt Conveyor

Applications:

Belt conveyors can be used for horizontal transportation or inclined transportation, it is widely used in various modern industrial enterprises, such as in metallurgy, coal, chemical industry building materials, light industry grain, and other industries.

Applications and Features

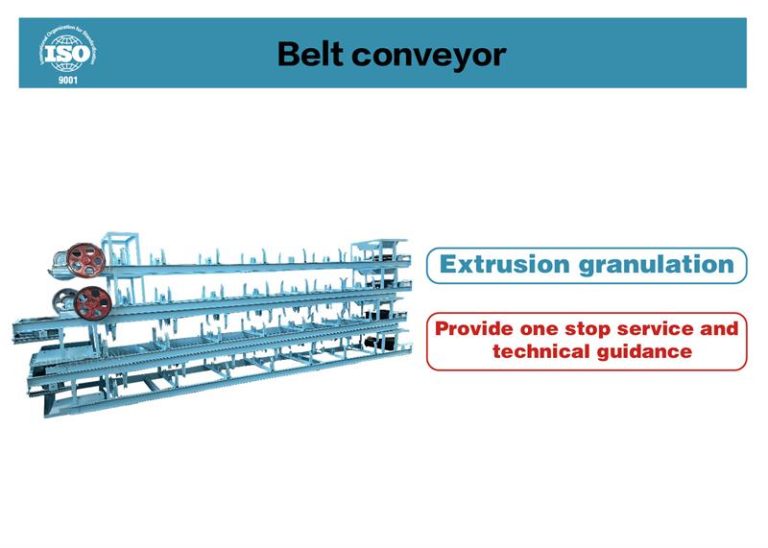

  • Belt conveyors can be used for horizontal transportation or inclined transportation, it is widely used in various modern industrial enterprises, such as in metallurgy, coal, chemical industry building materials, light industry grain, and other industries. The belt conveyor has the advantages of large conveying capacity, simple structure, convenient maintenance, low cost, and strong versatility. It is convenient to implement program control and automatic operation. The continuous or intermittent movement of the conveyor is used to transport powder and particles. Its operation speed is stable with low noise, and it also can have up and down slope transmission.

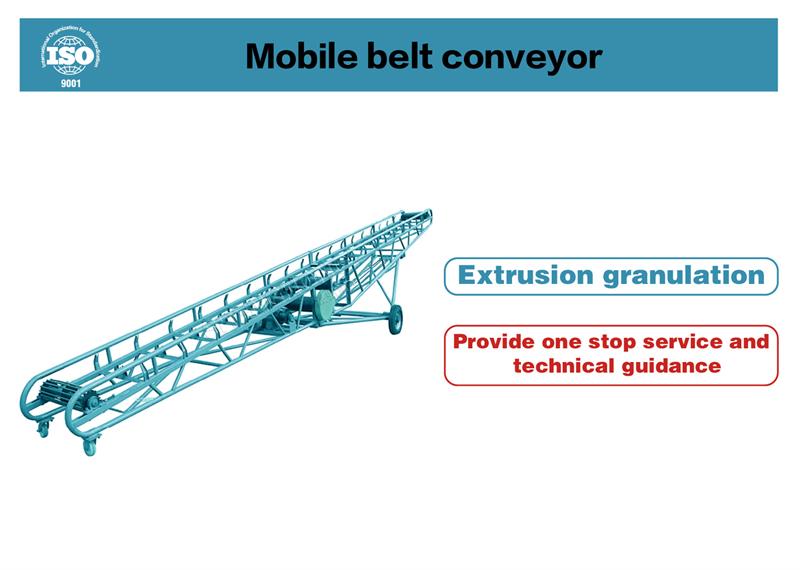

  • The mobile belt conveyor is mainly used in places where the loading and unloading locations often change, such as fertilizer plants, coal farms, mines, warehouses, construction sites, sand and stone yards, farms, etc., for short-distance transportation and loading and unloading of bulk materials or single pieces weighing less than 100 kg. It is a kind of continuous conveying and handling equipment with high efficiency and good mobility. Mobile belt conveyor is suitable for short-distance transportation and loading and unloading of bulk materials or pieces. Light and beautiful, with good maneuverability. The rotating device is electric rolling, and equipped with a tire walking wheel, easy to move. The Angle is adjustable and the conveying height is adjustable.

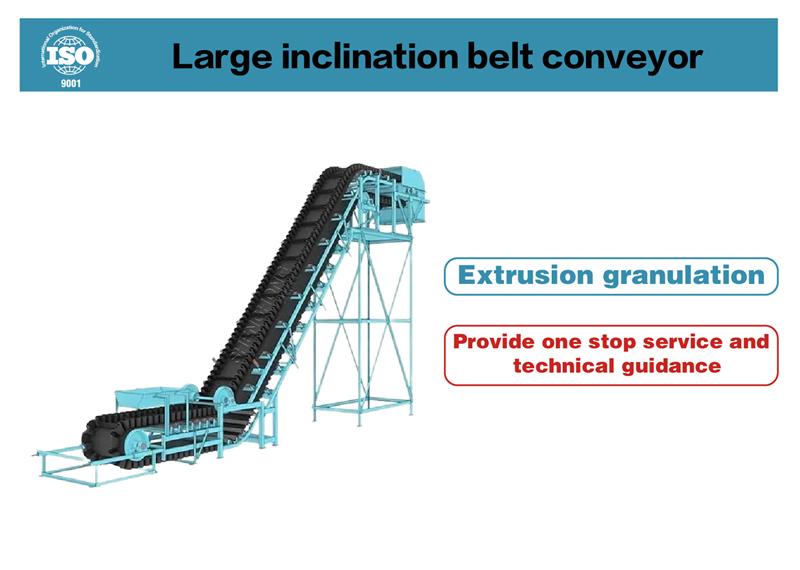

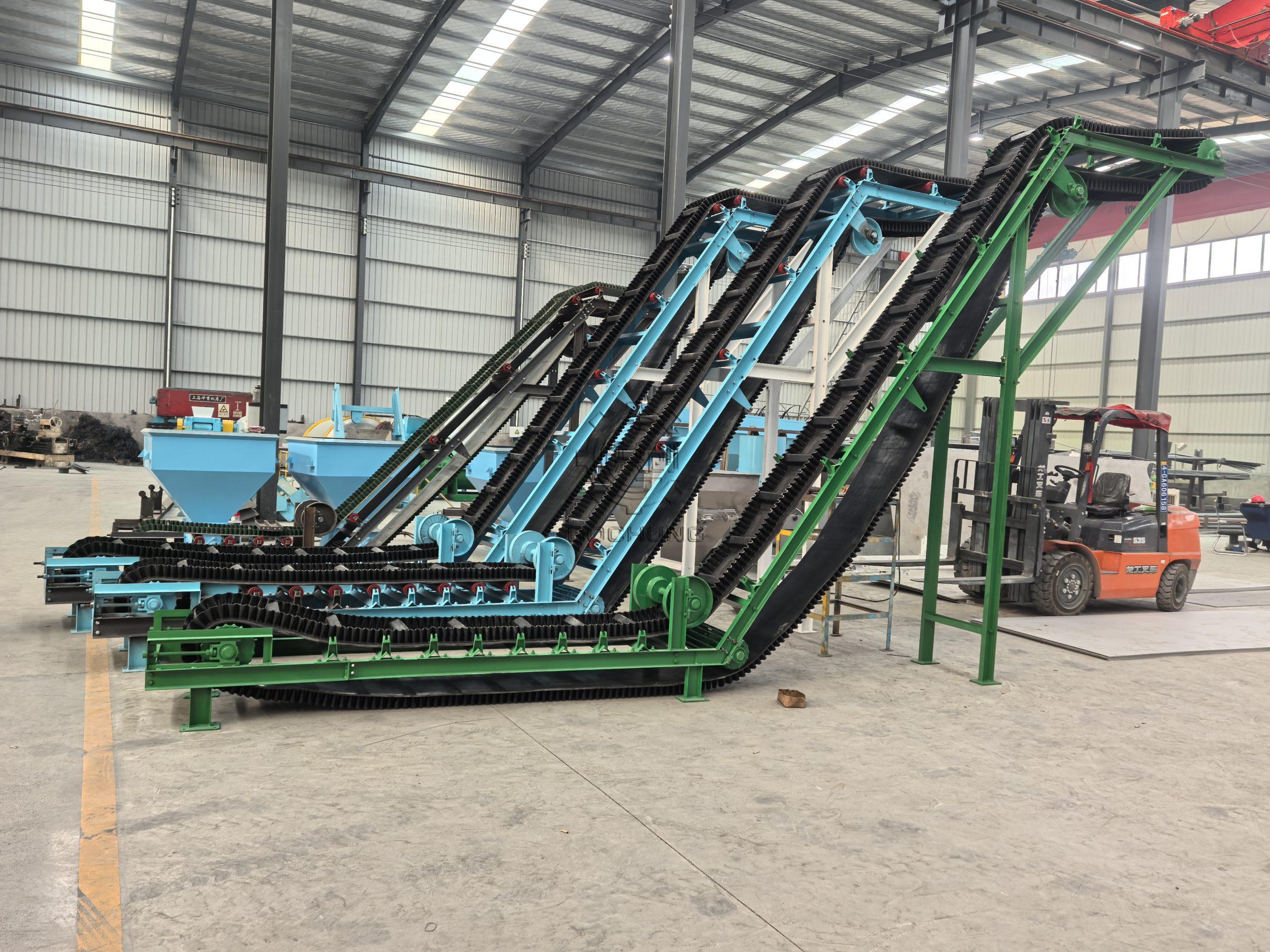

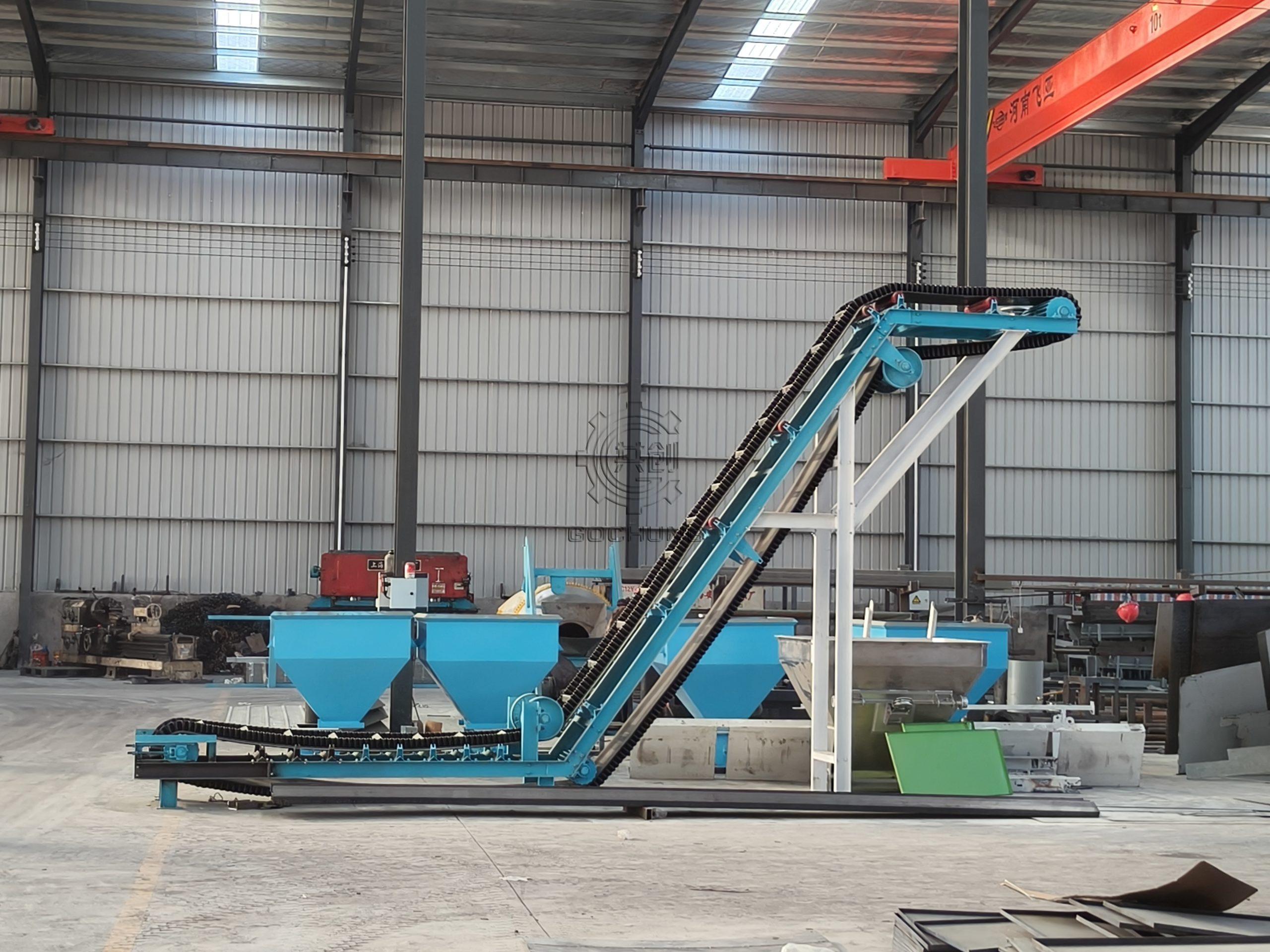

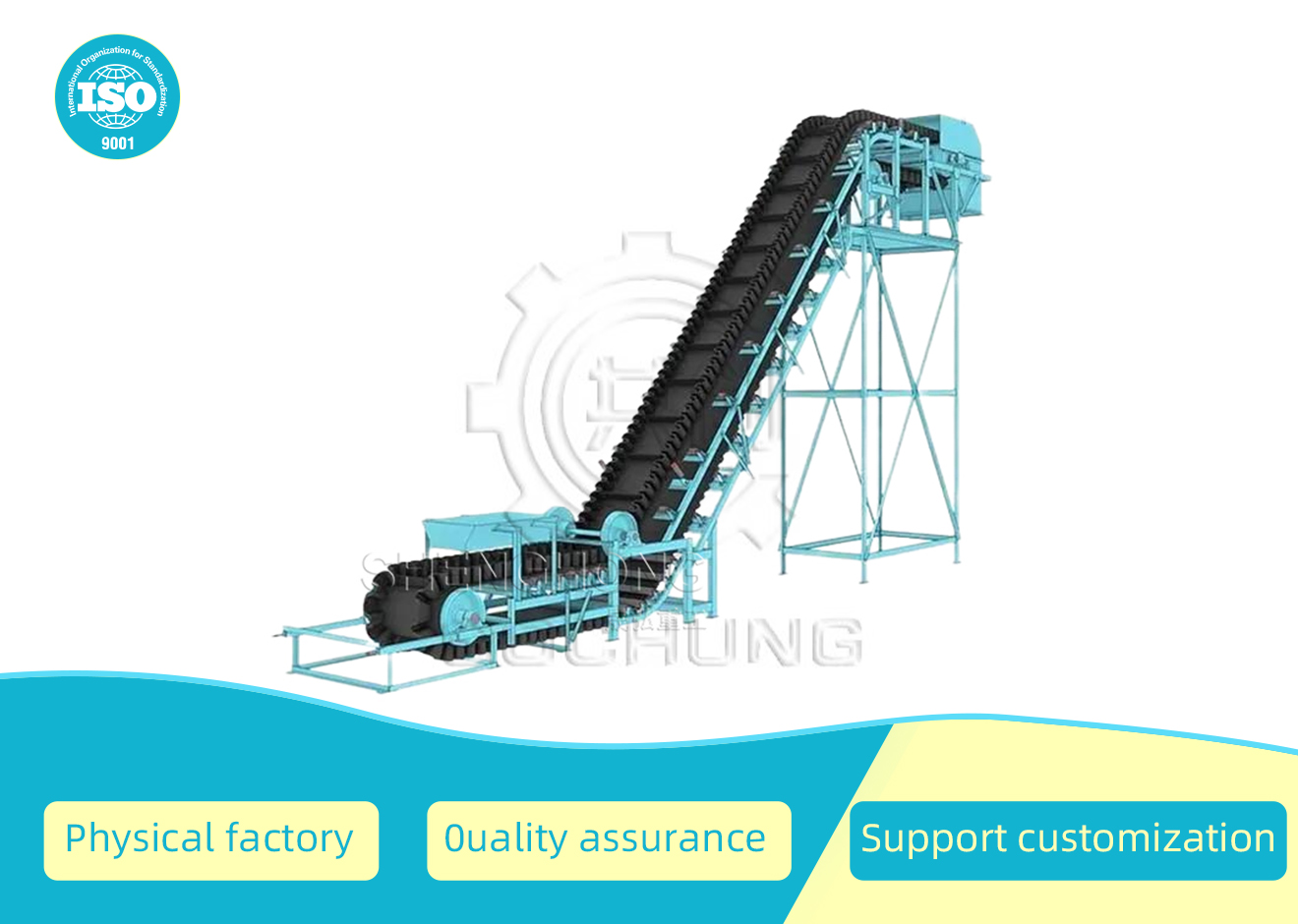

  • The large inclination belt conveyor adopts a conveyor belt with corrugated baffles and is suitable for continuous conveying of bulk materials. The machine can be used in fertilizer, coal, chemical industry, and building materials, industry industries to transfer various bulk materials with accumulation specific gravity of 0.5-2.5t/m within the range of -15 'C to + 40 C in the working environment humid widely used by a simple structure. convenient maintenance of small space occupation and investment savings can replace the point arrangement of conveyors and buckets, easy to arrange, and other holding points. t is with a large output, no micro-material, and a flexible layout

Technical parameters

ModelBelt width mmBelt speed (m/s)Conveying capacity (t/h)Power(KW)
5005001.620-25Depends on length
6006001.625-35
8008001.630-40
100010001.640-50
