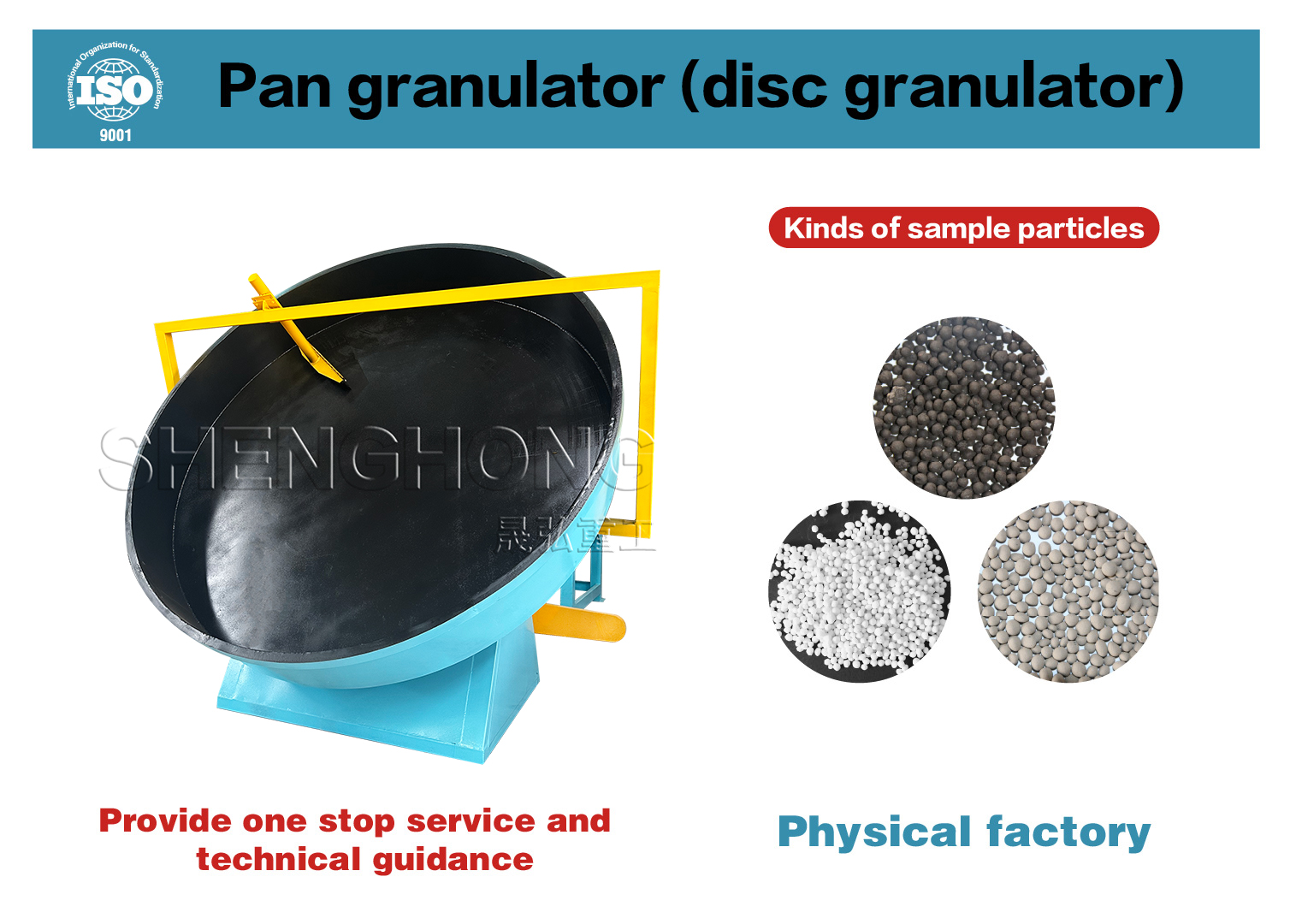

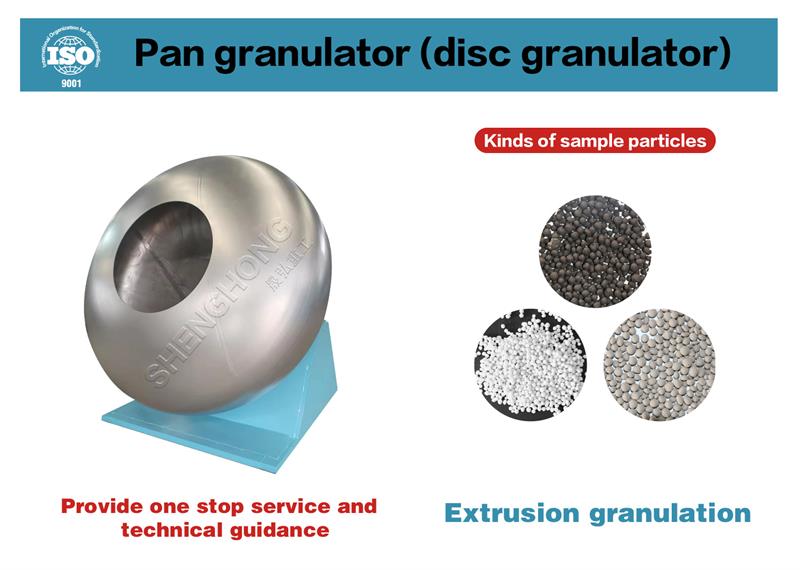

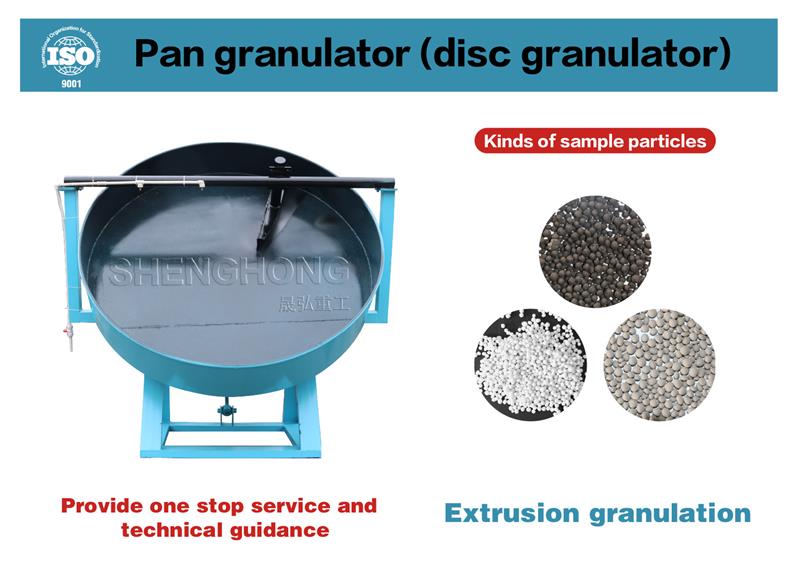

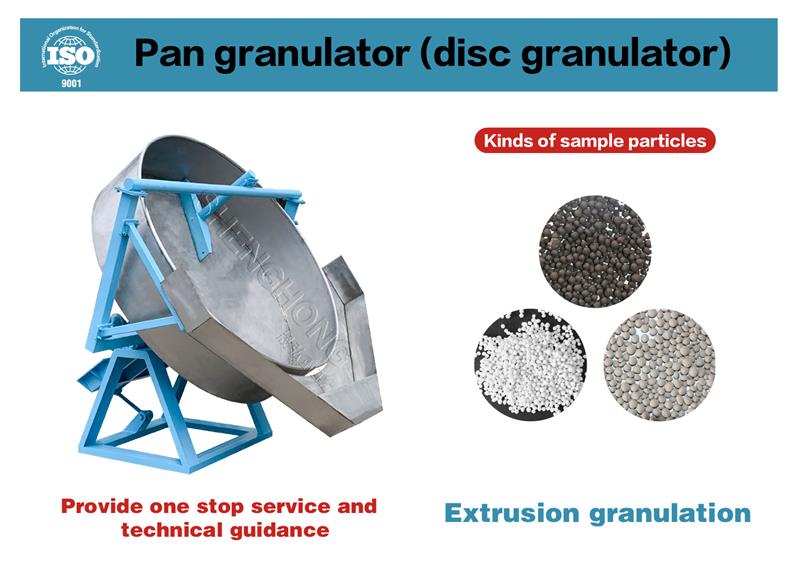

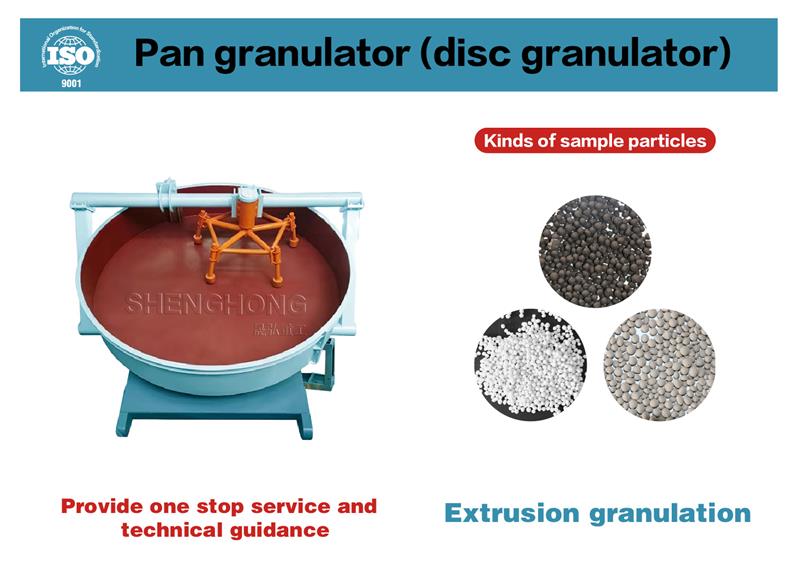

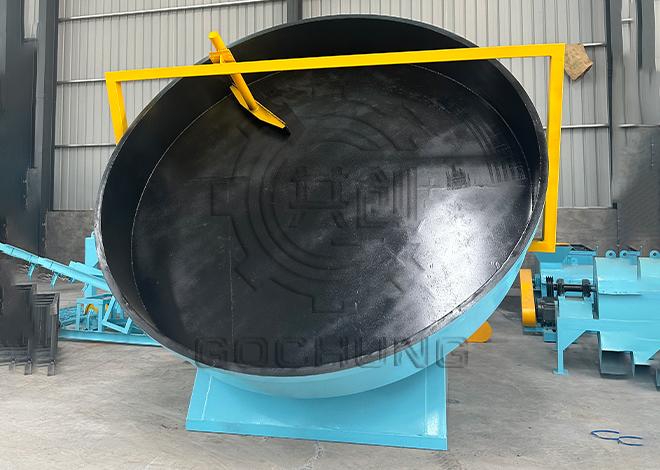

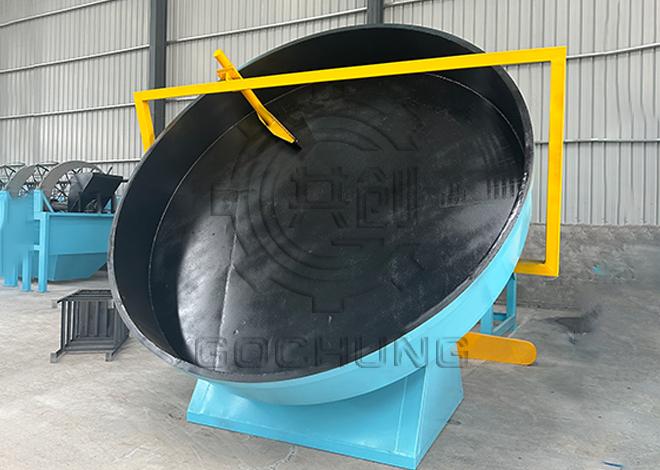

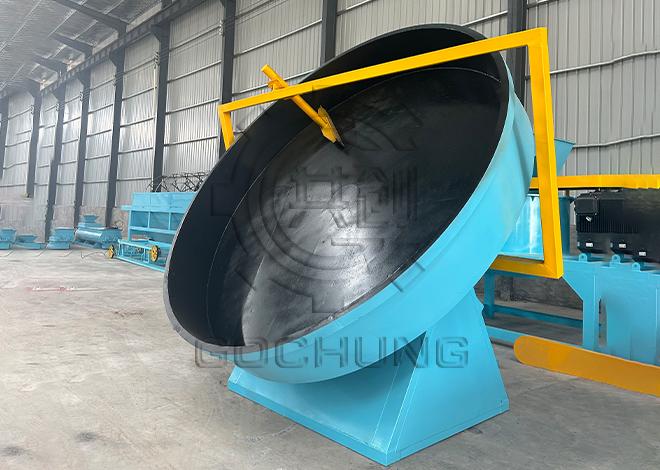

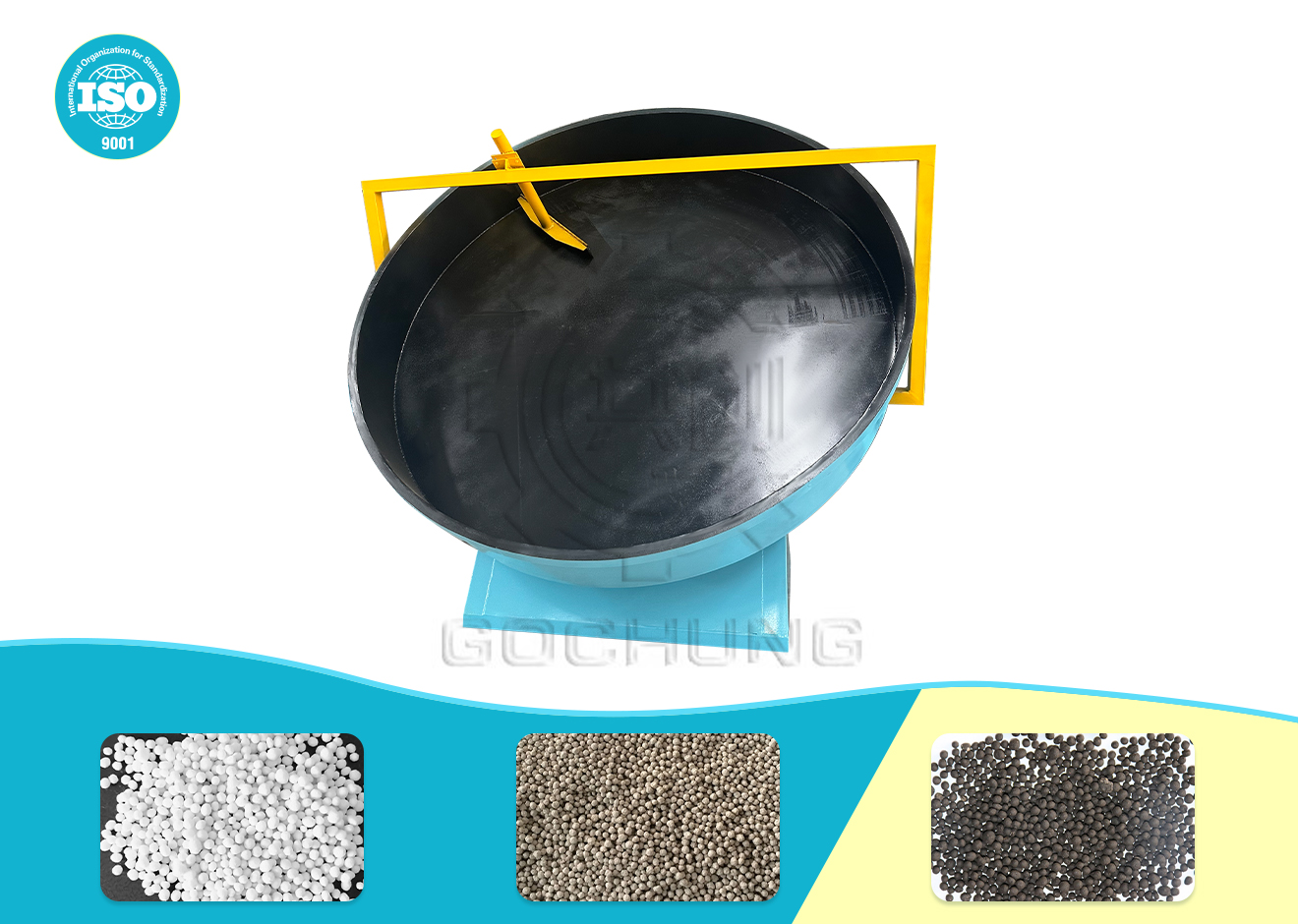

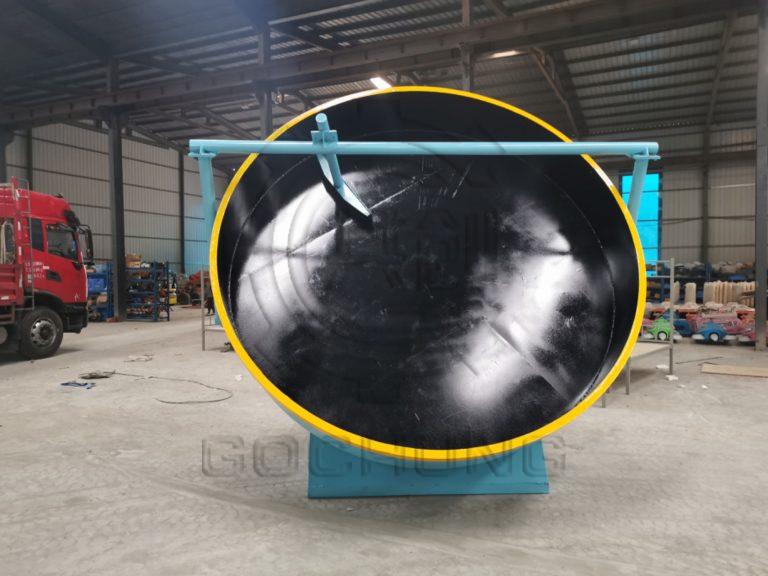

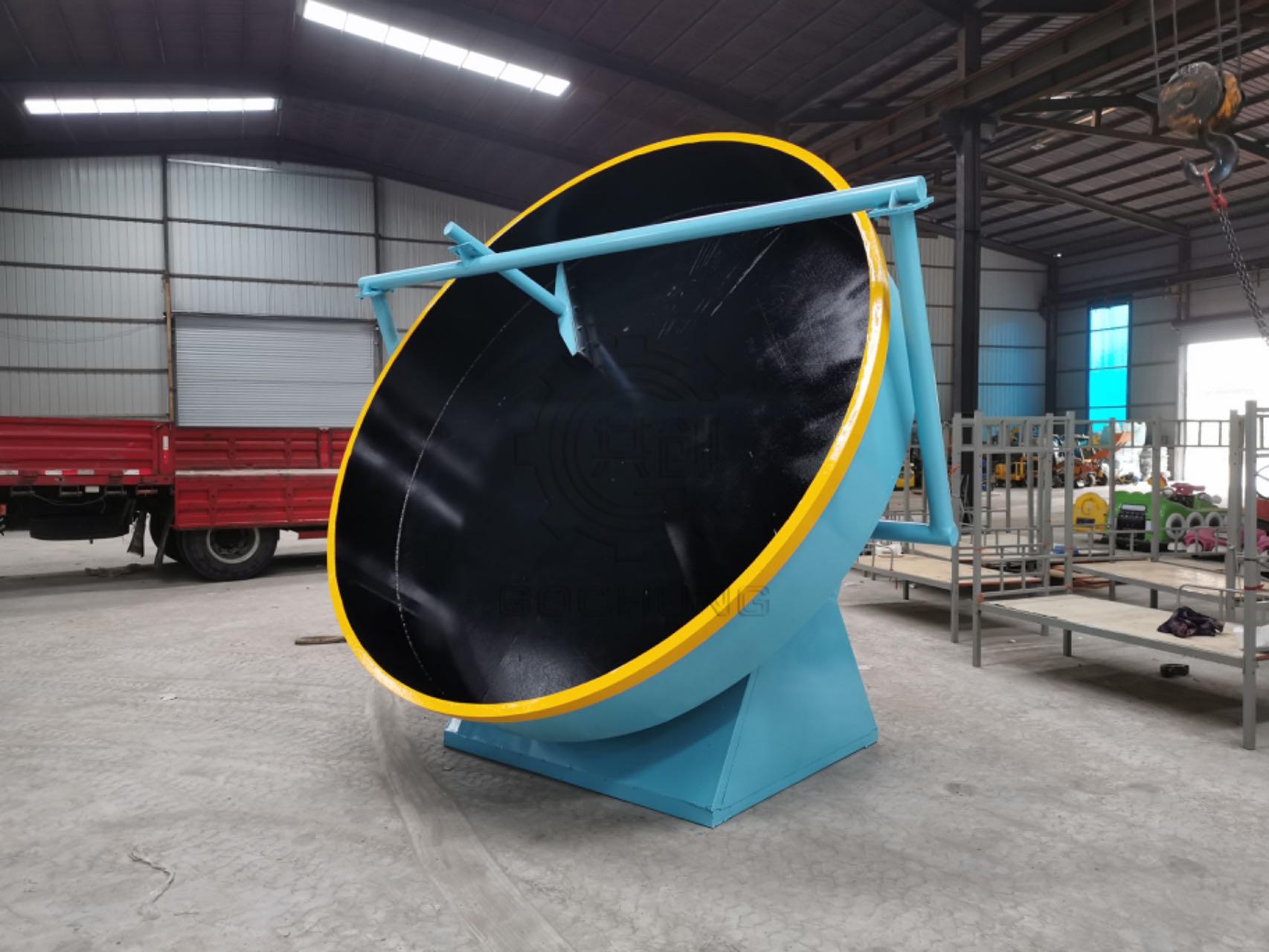

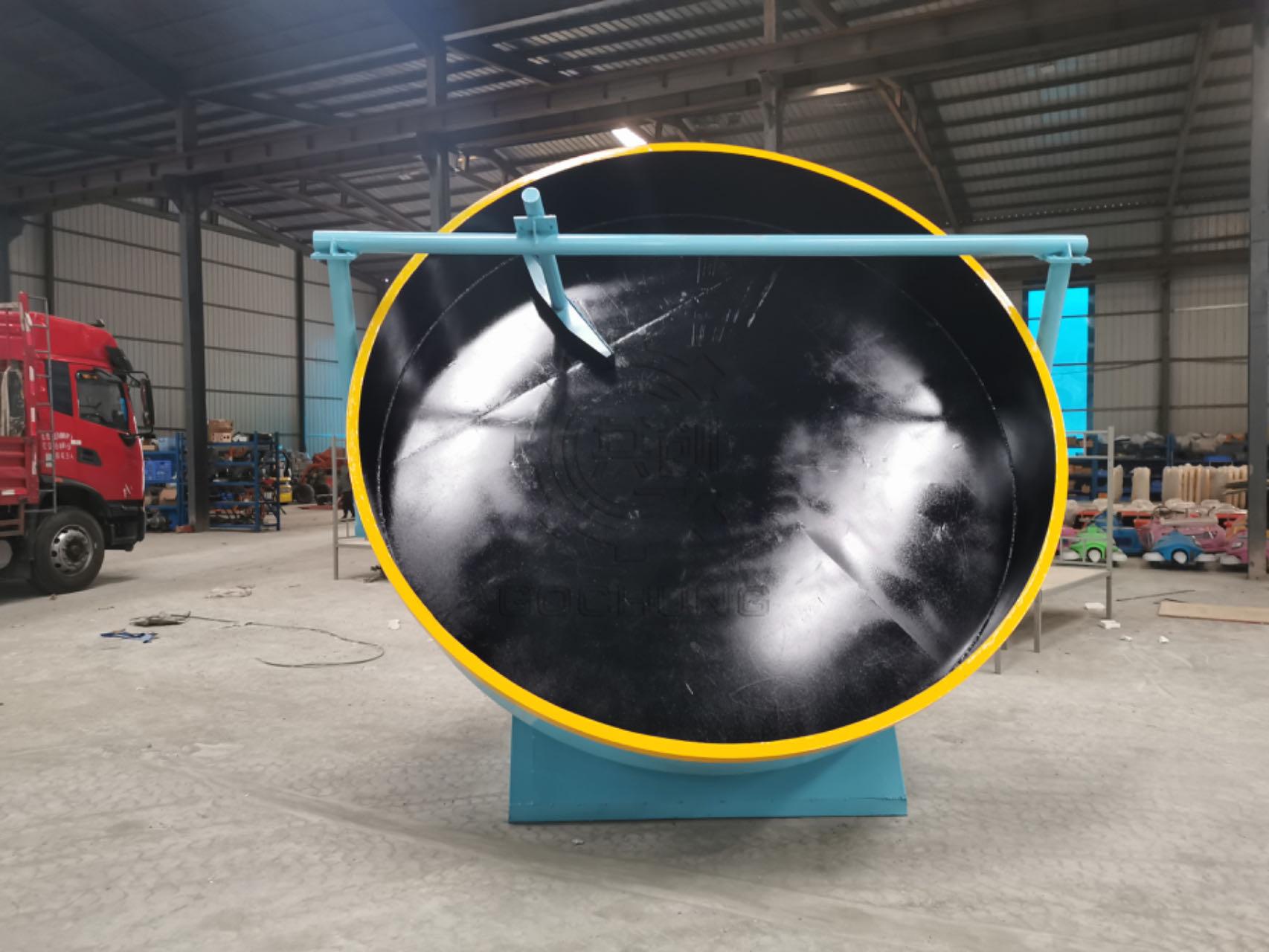

Disc Granulator

【Capacity】0.1-7T/H
【Motor Power】1.5-22kw
【Granular Diameter】3-10mm
【Applications】Organic fertilizer, compound fertilizer, sludge waste treatment, mining chemical industry, feed processing, and other fields of granulation.

Features

The disc granulator has the advantages of uniform granulation, beautiful granules, controllable diameter, and stable operation, and the granulation rate can reach more than 90%. It is well received by users, is the majority of users choose the ideal product.

Technical parameters

Model SpecificationsDiameter of granulation disc (mm)Edge height (mm)Rotation speed (r/min)Motor power (kw)Capacity (t/h)Length × width × height (mm)
SHQ-80800200251.50.1-0.2900*1100*1000
SHQ-101000250212.20.3-0.51400*1200*1400
SHQ-1515002501730.5-0.81750*1620*2000
SHQ-181800300175.50.6-12000*1980*2100
SHQ-202000300195.50.8-1.22200*2300*2200
SHQ-25250035013.67.51-1.52200*2800*2700
SHQ-28280040013.6111.8-33100*2350*3060
SHQ-30300045011113-4.53400*2500*3165
SHQ-32320045010153.5-53500*2600*3350
SHQ-36360045010225-74000*2990*3460
