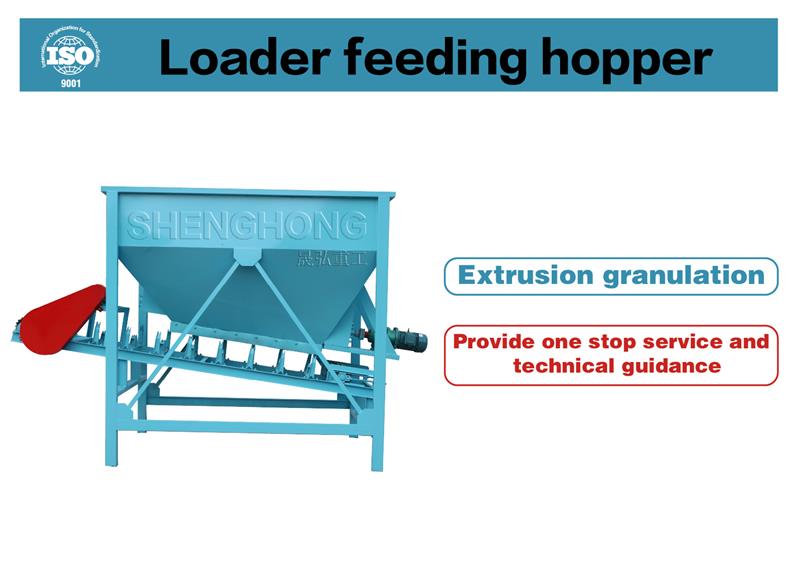

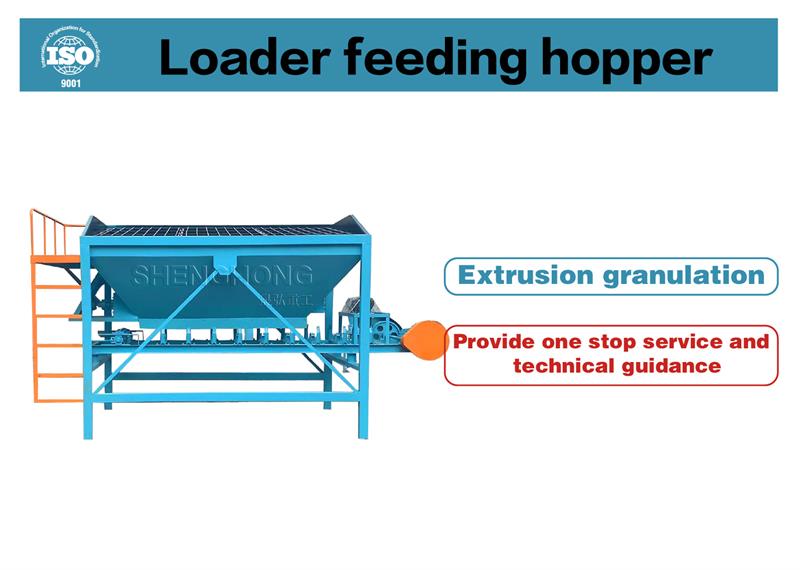

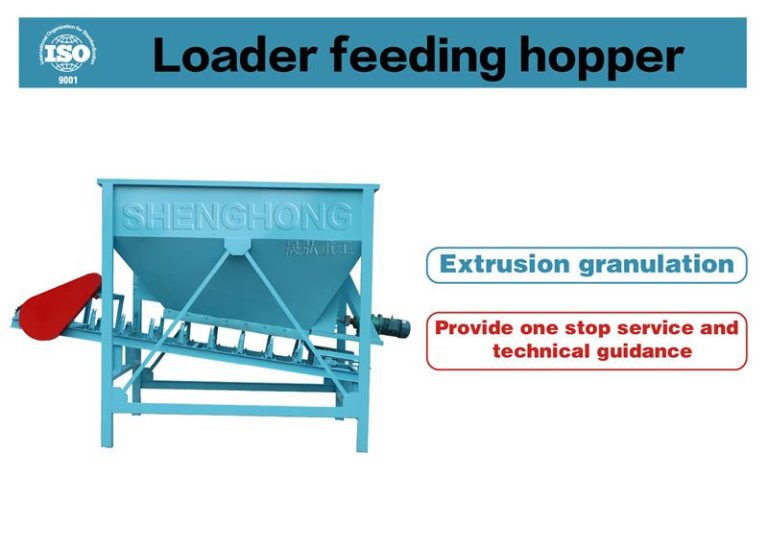

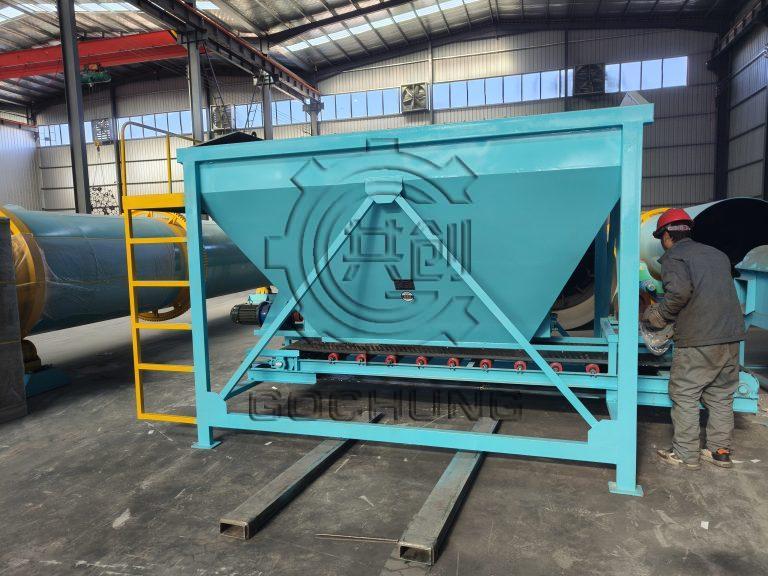

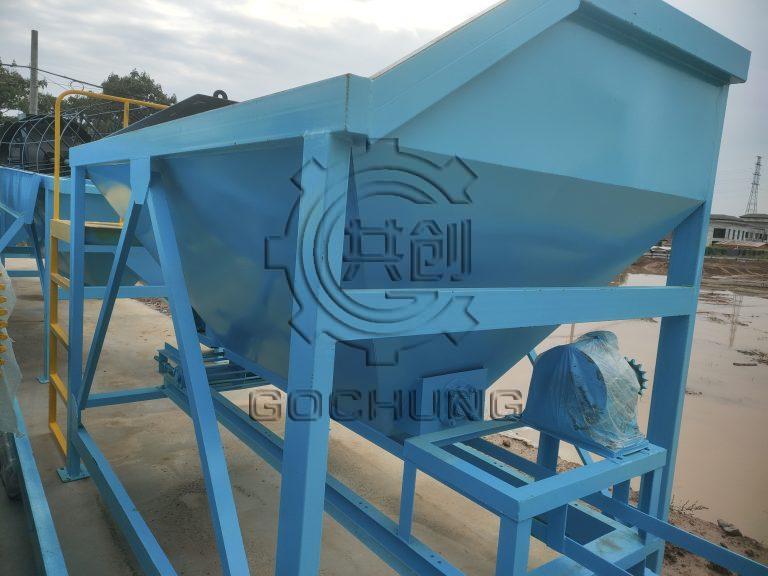

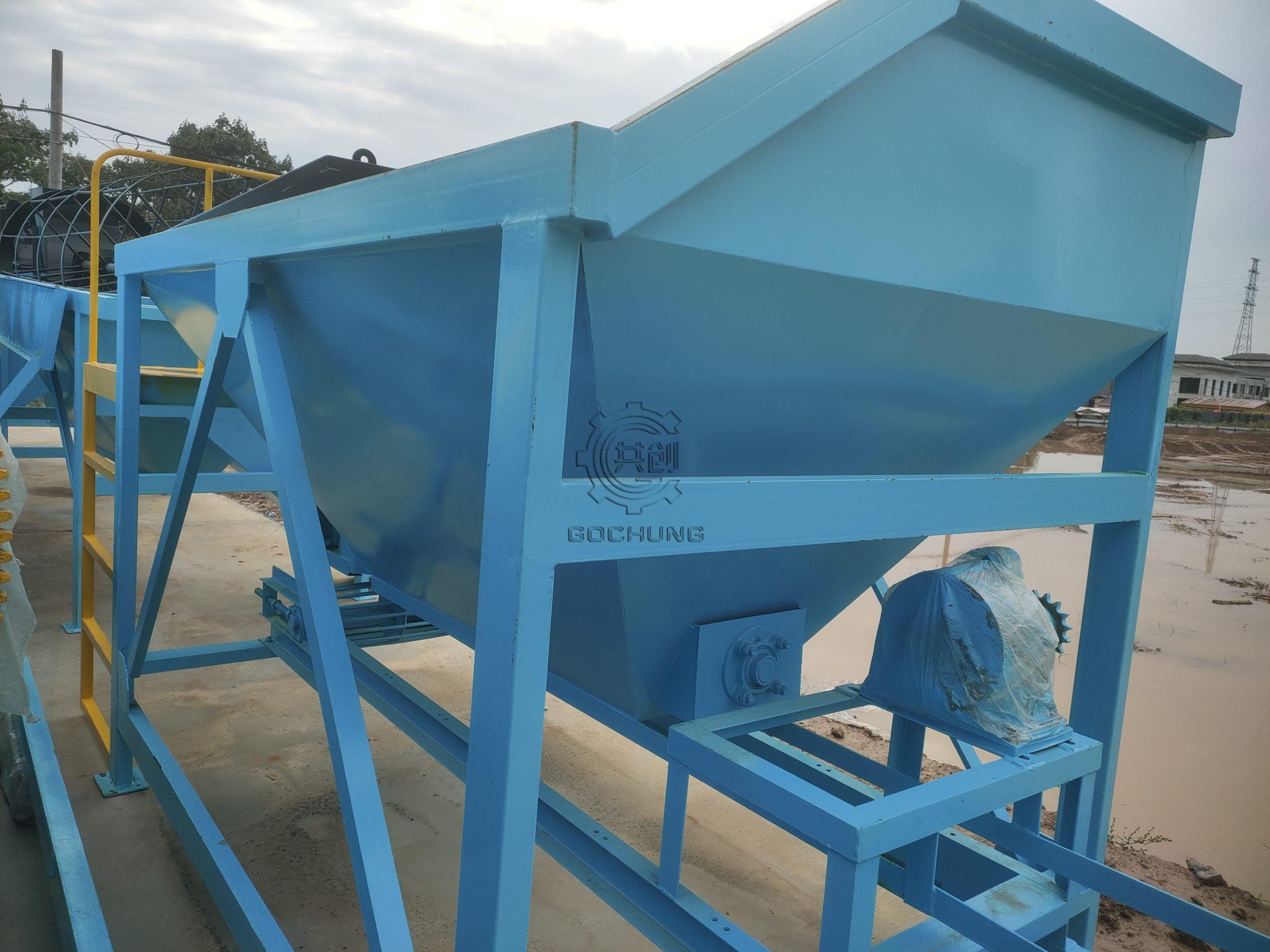

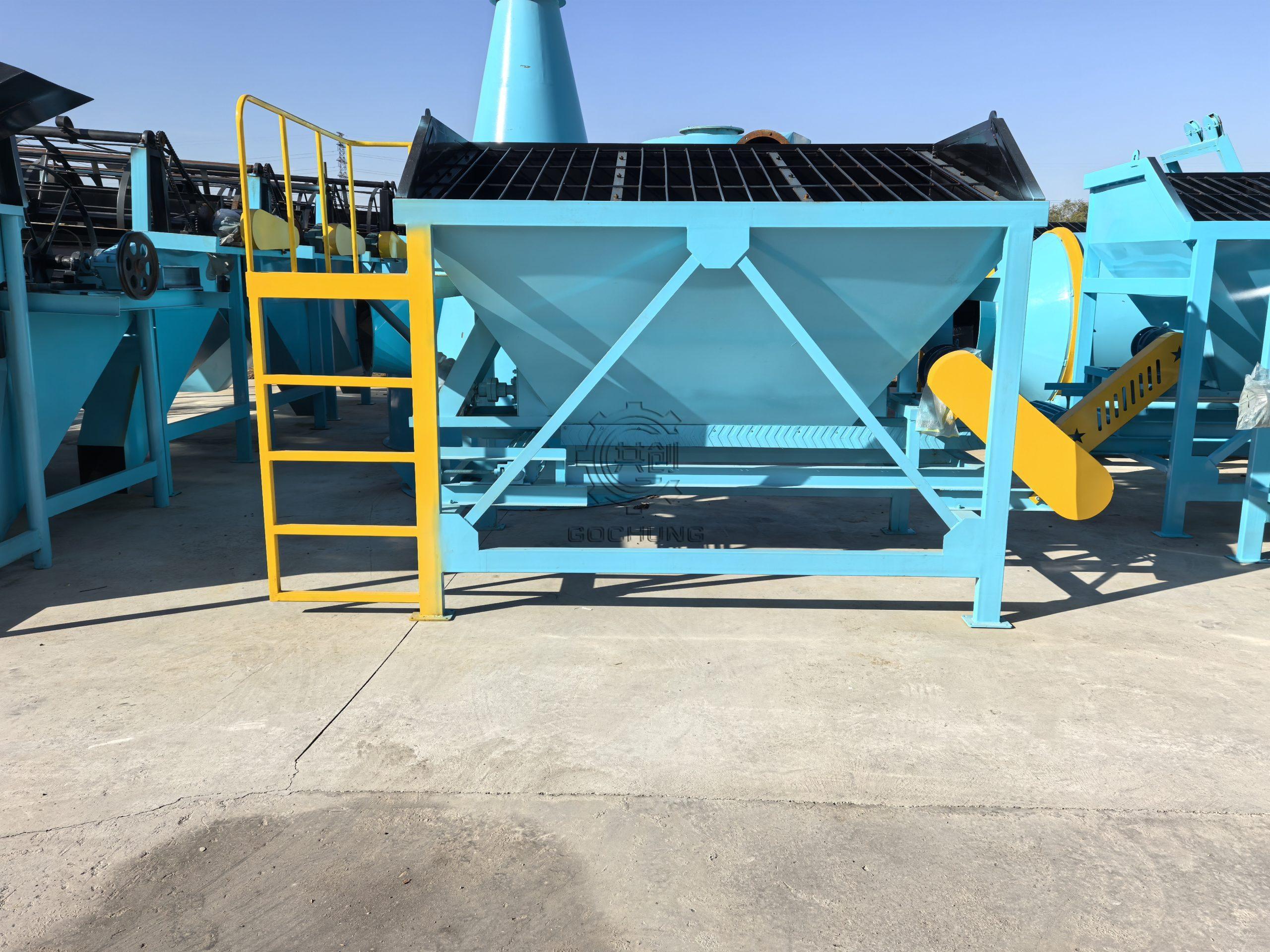

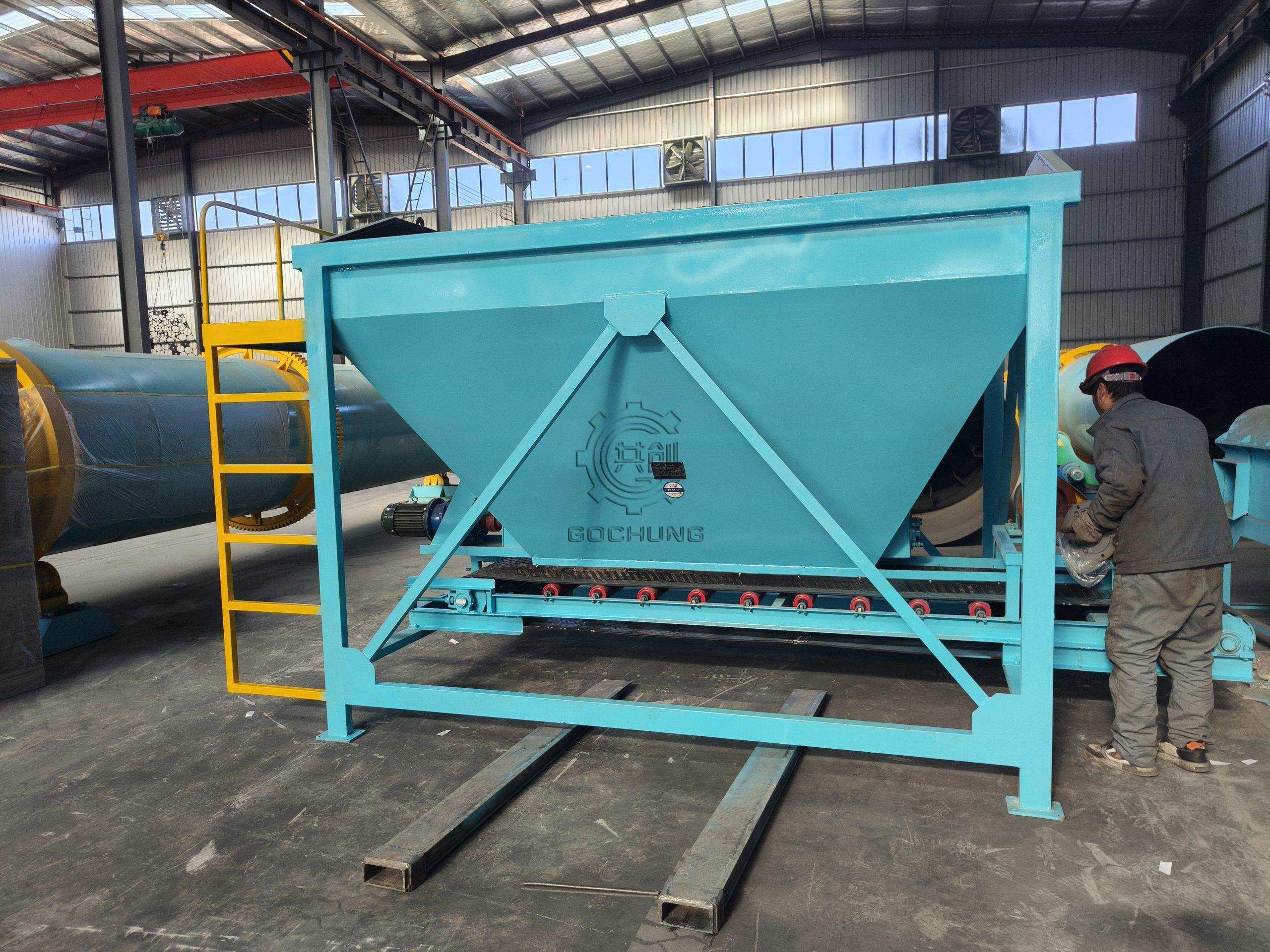

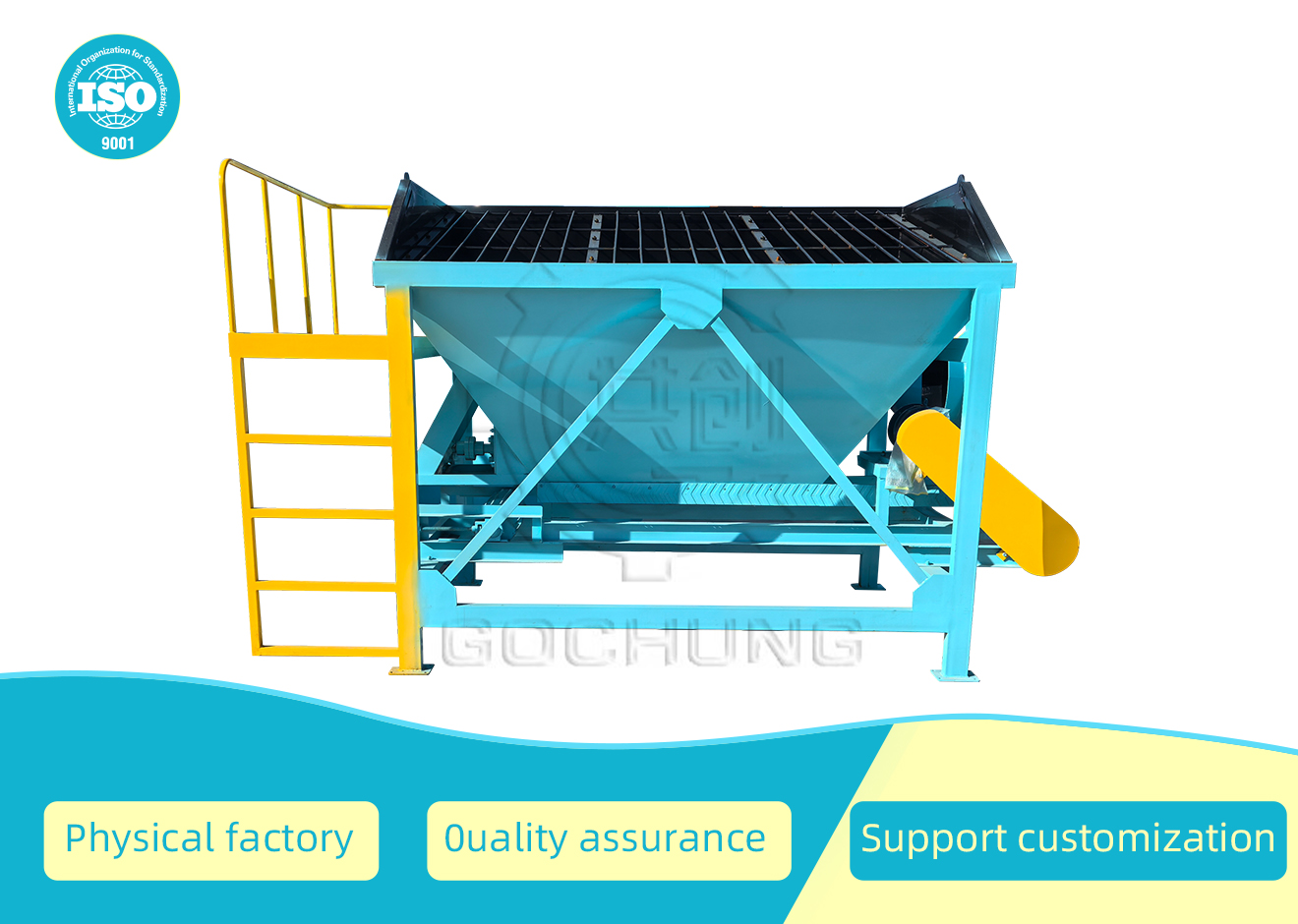

Loader Feeding Hopper

Applications:

It is mainly used for conveying materials of loader loading of powder materials and other organic and inorganic raw materials in fertilizer industry.

Applications and Functions

It is mainly used for conveying materials of loader loading of powder materials and other organic and inorganic raw materials in fertilizer industry. It also has the function of breaking and mixing loose bulk material. The main engine can be used as a speed regulating motor, and this hopper is suitable for the uniform feeding of the crusher in fertilizer production. The machine is simple in operation, no need for civil construction, good flexibility and saving labors.

Advantages

  • 01. Strong adaptability: according to different materials and needs, adjust the conveying capacity and way.
  • 02. Continuous and uniform: can achieve uniform and uninterrupted output of materials to ensure the continuity and stability of production.
  • 03. Easy to operate and maintain: equipped with anti-smashing net, vibration anti-blocking device, stirring anti-blocking device, frequency conversion speed regulation device, etc., can prevent material blockage, control the amount of material, reduce failure.

Structural Action

  • Silo: temporary storage of raw materials.
  • Grate: filter large materials.
  • Mixing device: crushing aggregate materials to prevent clogging.
  • Belt conveyor: the material from the silo uniform or quantitative supply to the receiving equipment.
  • Frame: connect each component, play a fixed support role.

Technical parameters

SpecificationsVolume(m³)Power (kw)Dimensions
length*width*height(mm)
1.5X2.53.63+3
Variable frequency
3650*1750*2220
1.5X3.09.23+3
Variable frequency
4100*1630*2850
2.0X3.08.33+3
Variable frequency
4200*2150*2550
2.0X4.0164+4
Variable frequency
4900*2130*2950
