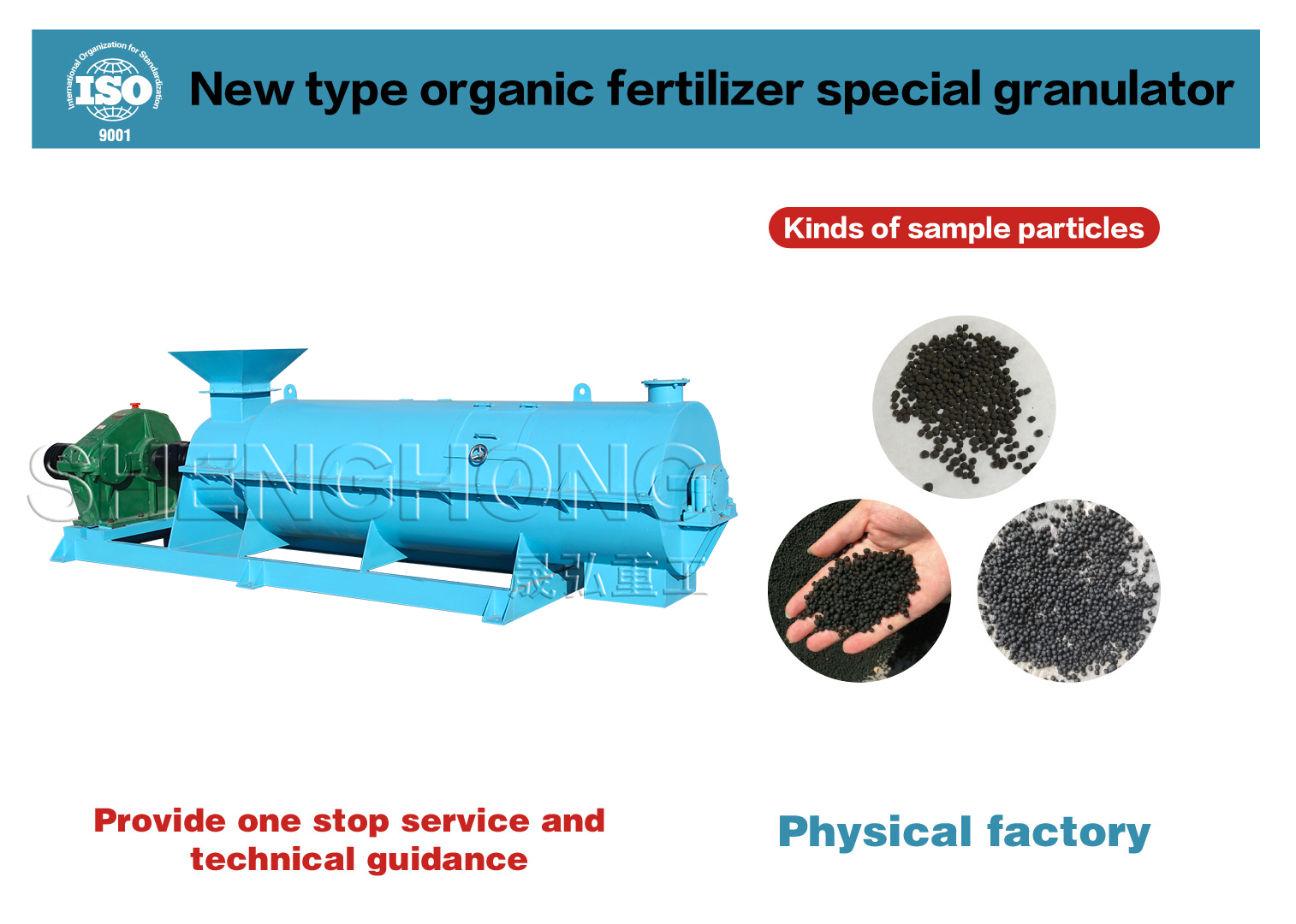

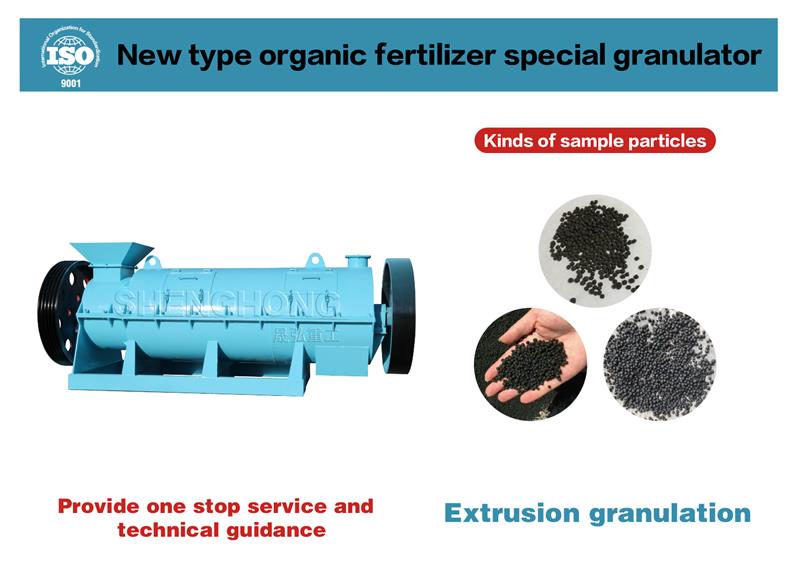

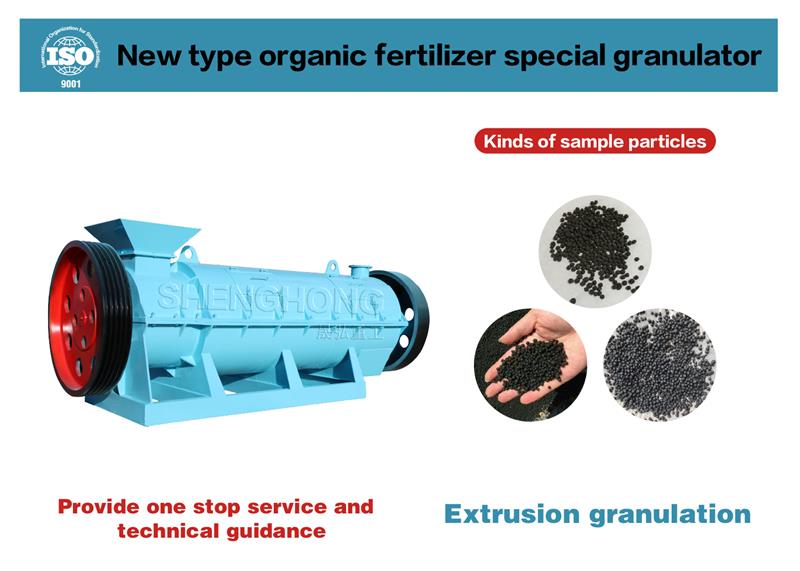

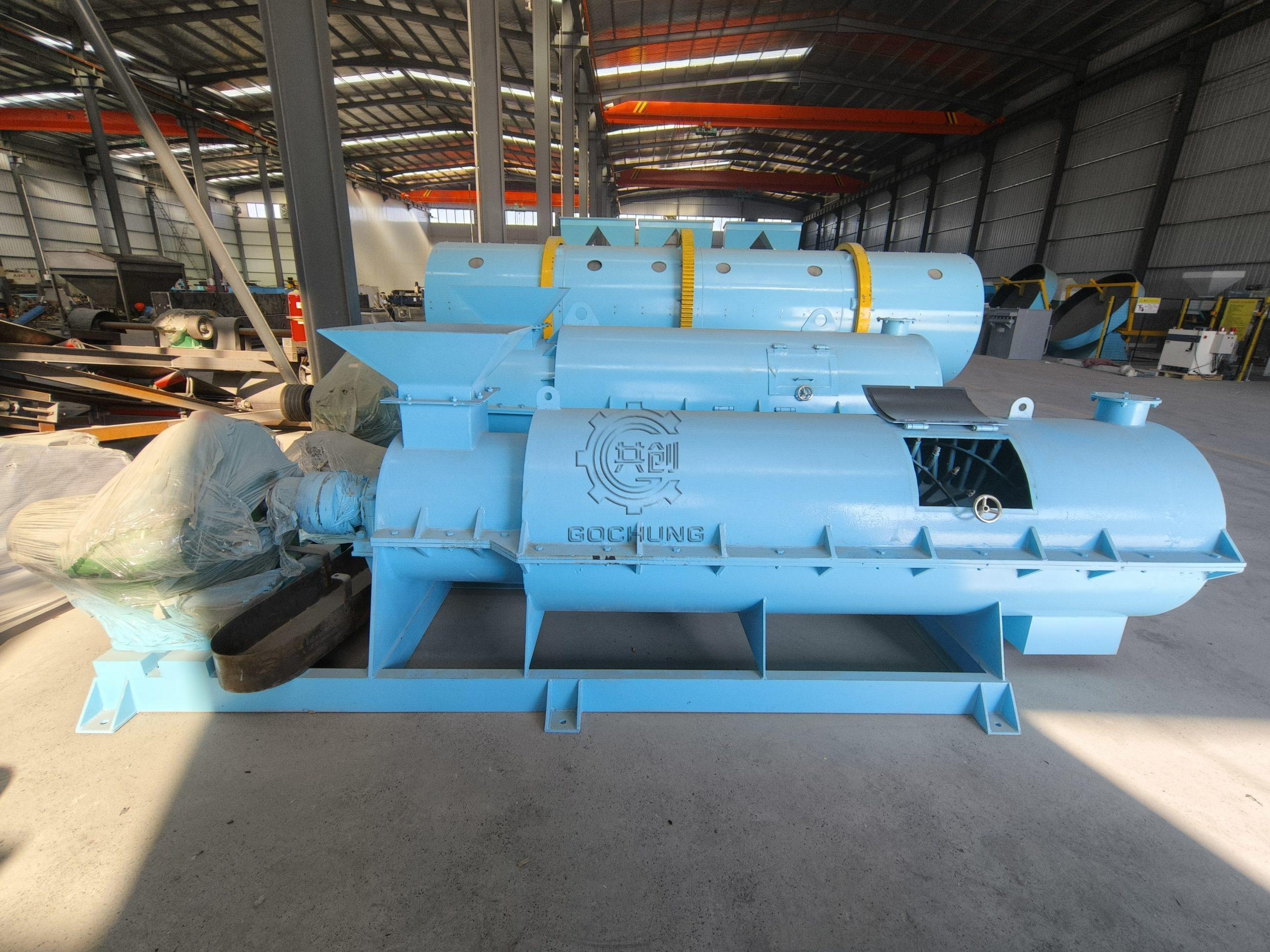

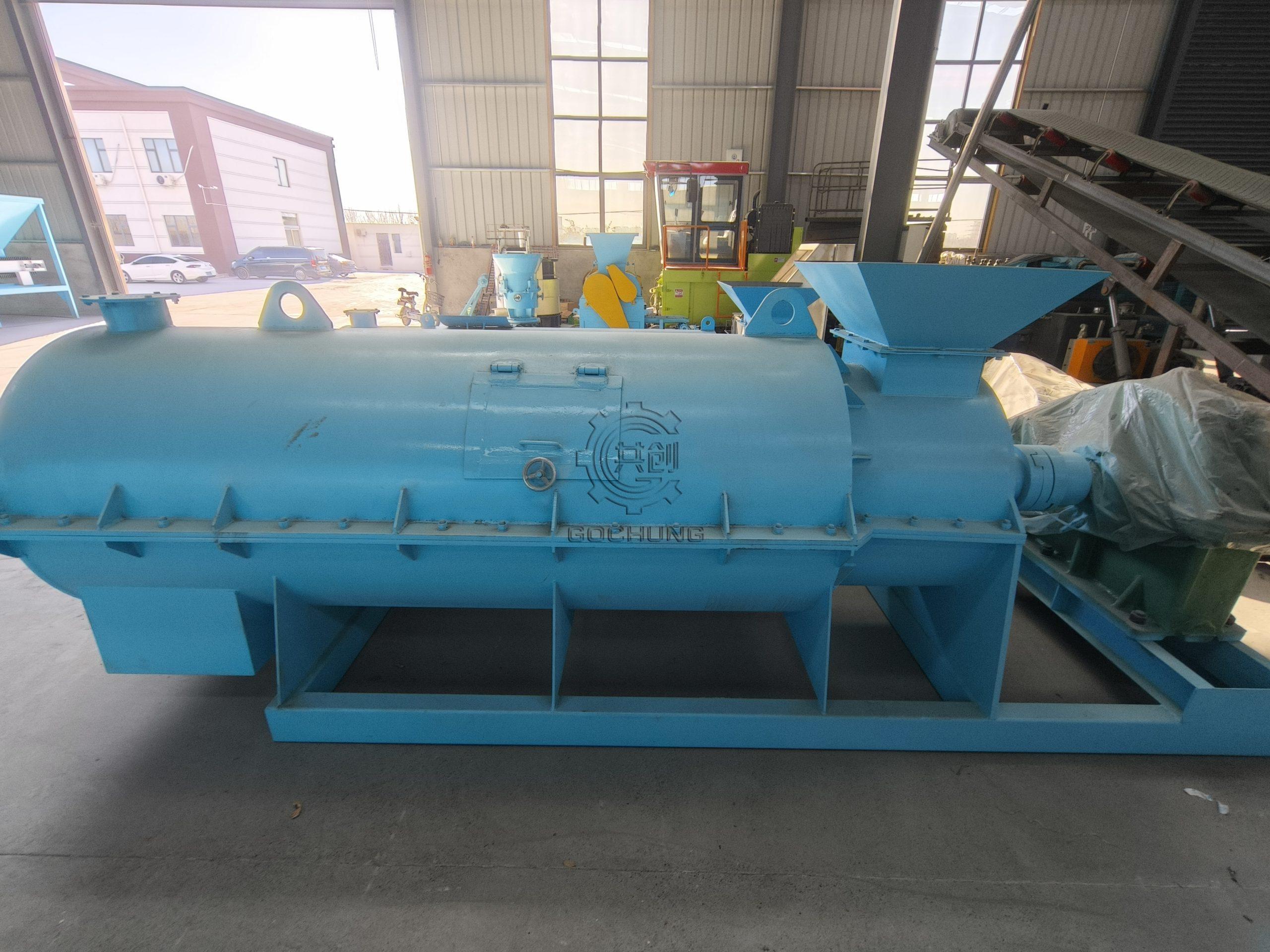

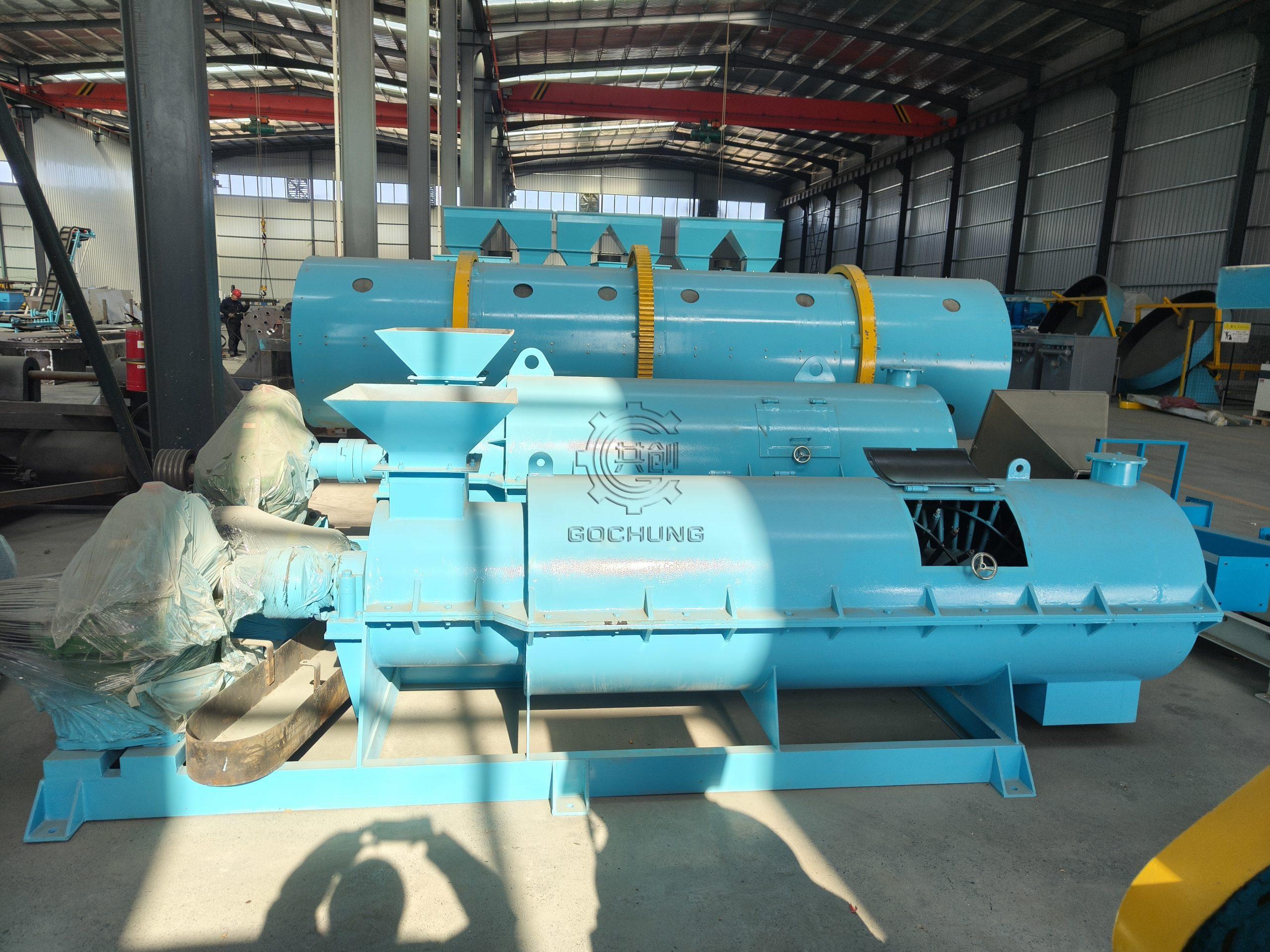

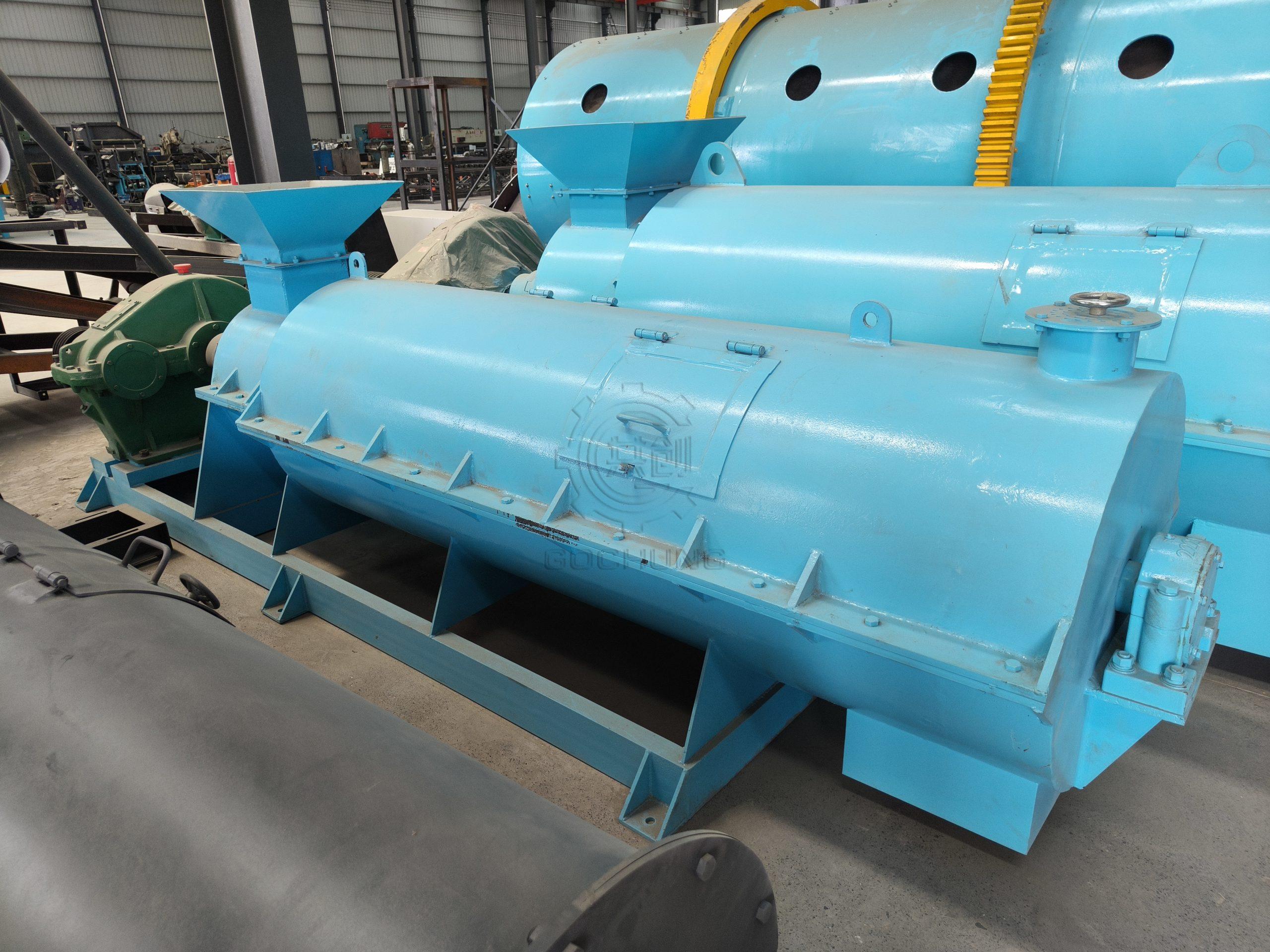

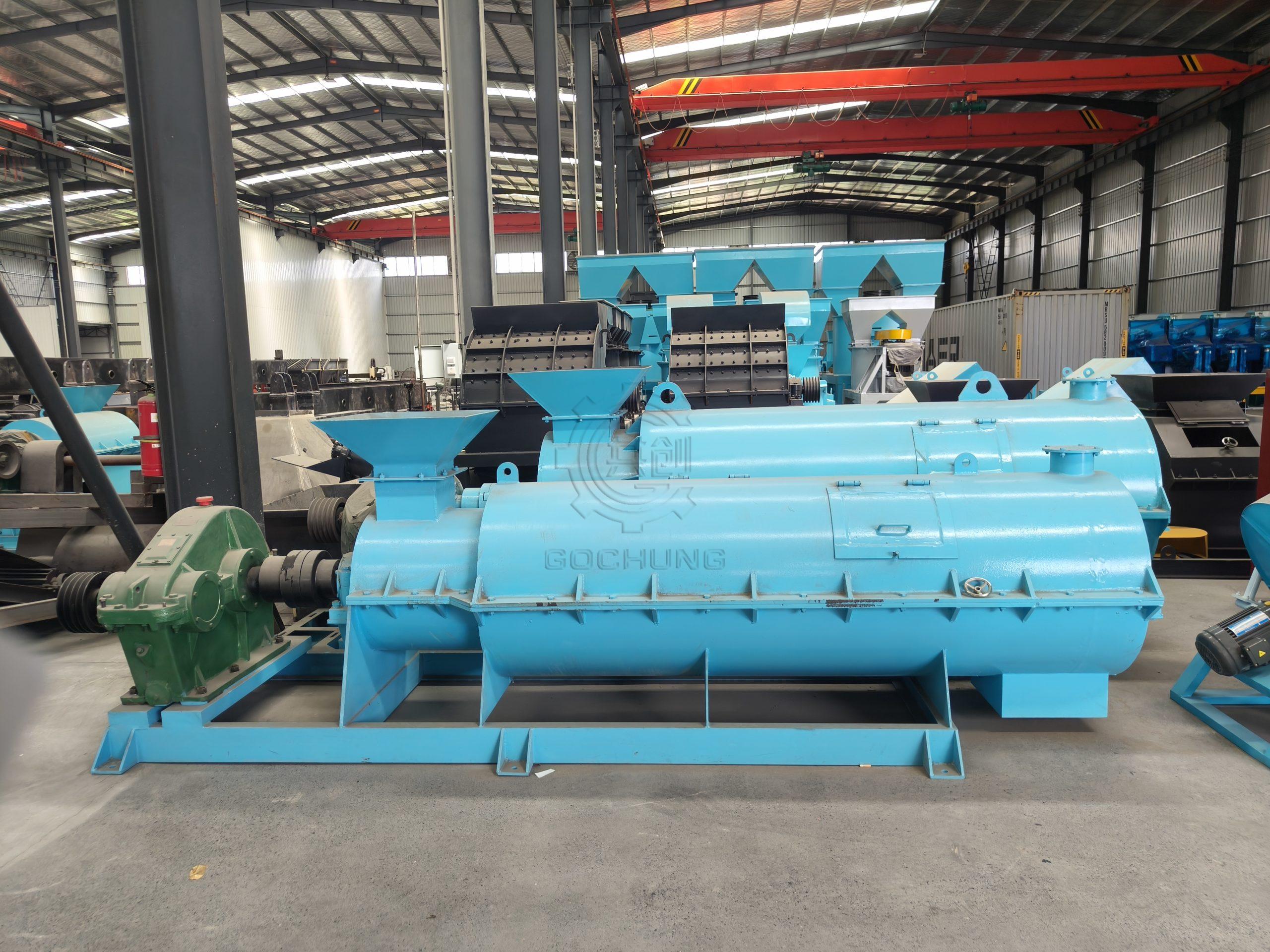

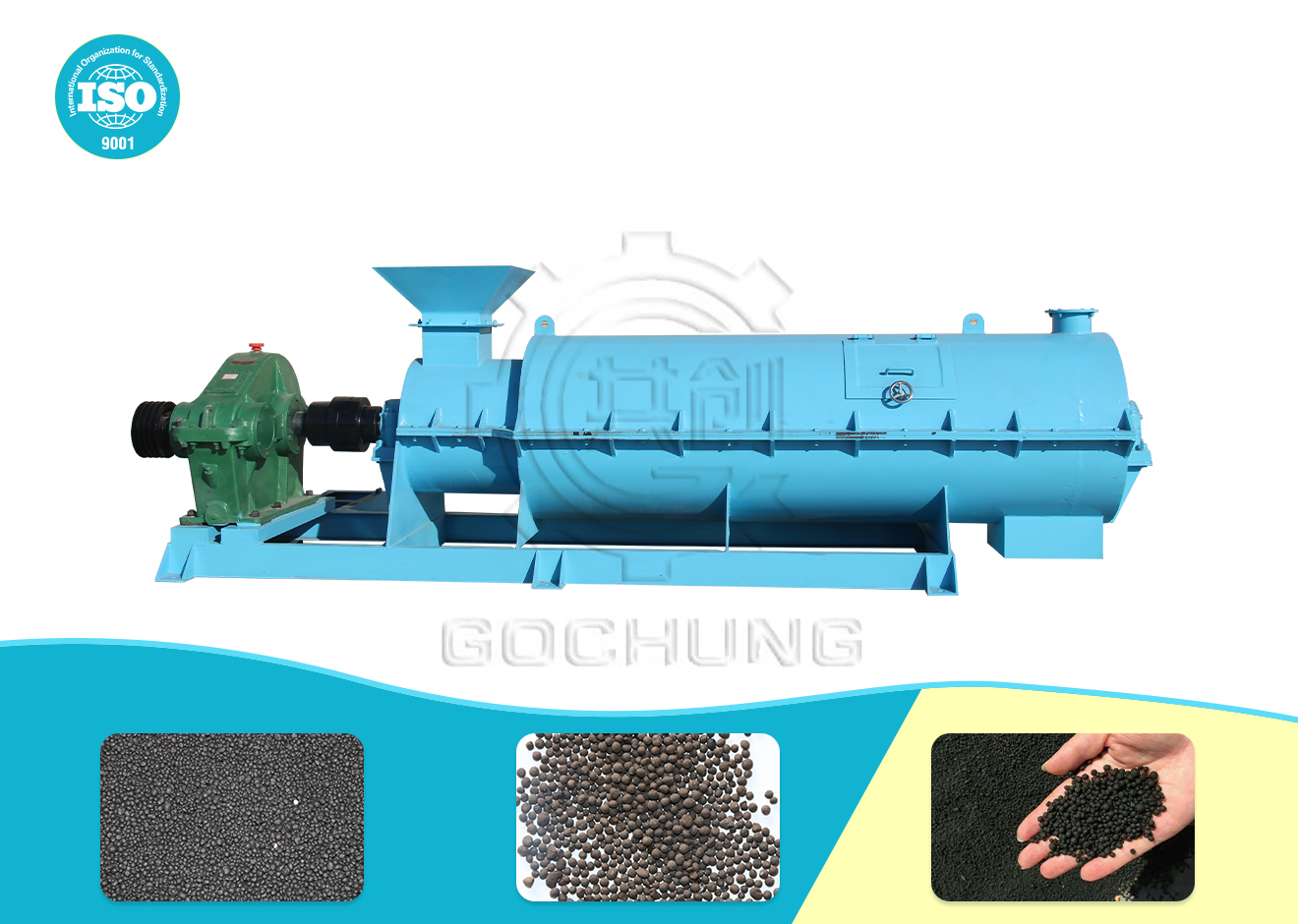

New Organic Fertilizer Granulator

【Capacity】1-7T/H
【Motor Power】30-75kw
【Granular Diameter】3-10mm
【Applications】The granulation process of chicken, pig, cow, sheep, and other animal feces after high-temperature fermentation.

Applications and Functions

New organic fertilizer special granulator, used for livestock manure, urban sludge, and domestic waste processing organic fertilizer one of the granulation equipment. It is mainly used for the granulation process of chicken, pig, cow, sheep, and other animal feces after high-temperature fermentation.

Features and Advantages

It can be directly mixed after crushing, using the mechanical stirring force of high-speed rotation of the granulator and the resulting friction force, so that the powder material is continuously mixed inside the machine, granulation, modulation, and strengthening to achieve the purpose of material granulation. Raw material water content can be about 30%-40% and can be granulated. The particle diameter of the finished product is generally between 0.3-5 mm, and the granulation rate is >85%.

Technical parameters

Specifications and modelsEquipped with power (kw)Rotation speed (r/min)Yield (t/h)Discharge particle size (mm)Length × width × height (mm)Weight (kg)
SHZ-60型303121-1.5163660*950*10501400
SHZ-80型452422-3173665*1200*12802800
SHZ-100型553733-5283660*1400*15004500
SHZ-120型754505-7285410*1500*16106800
