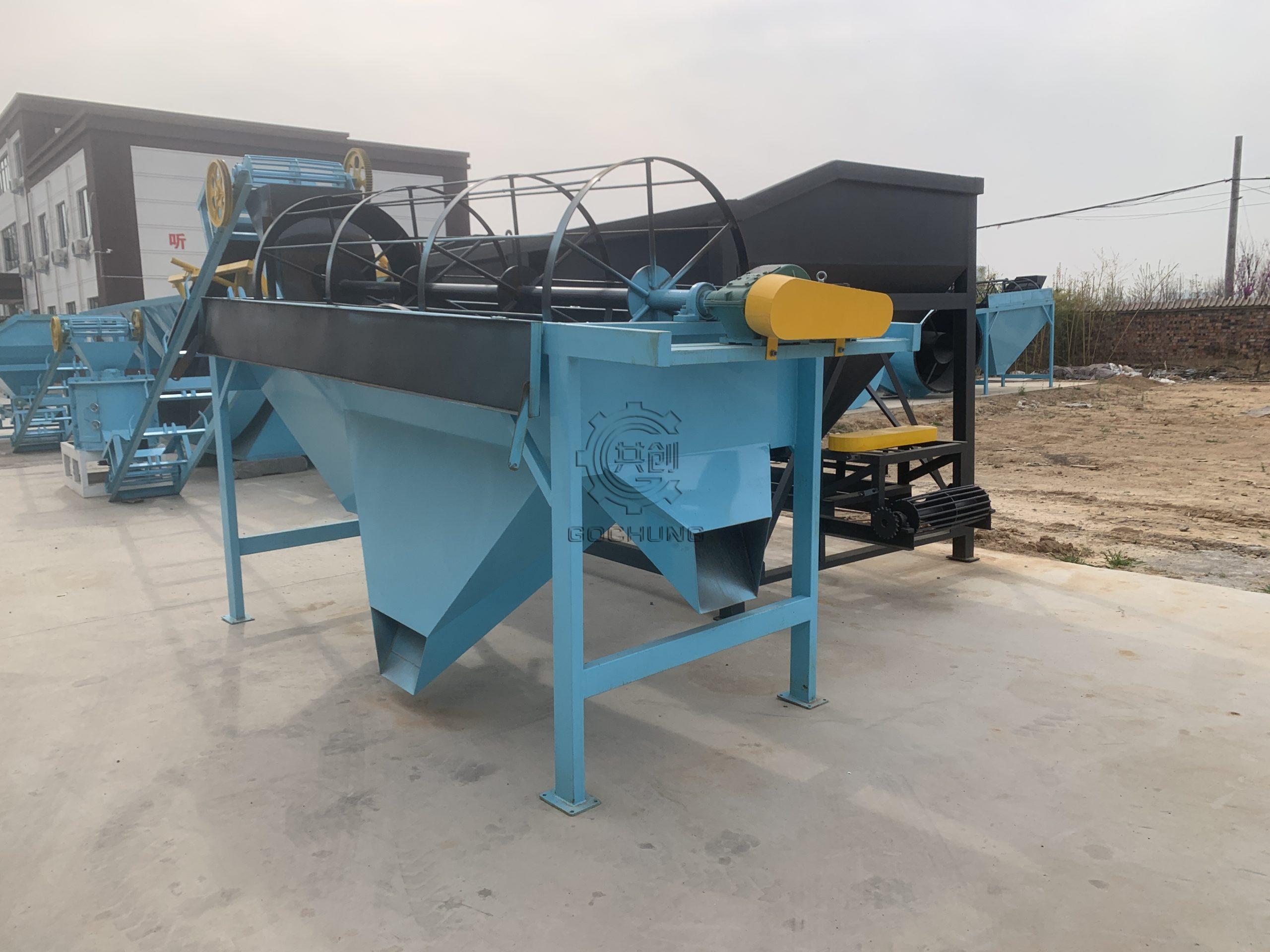

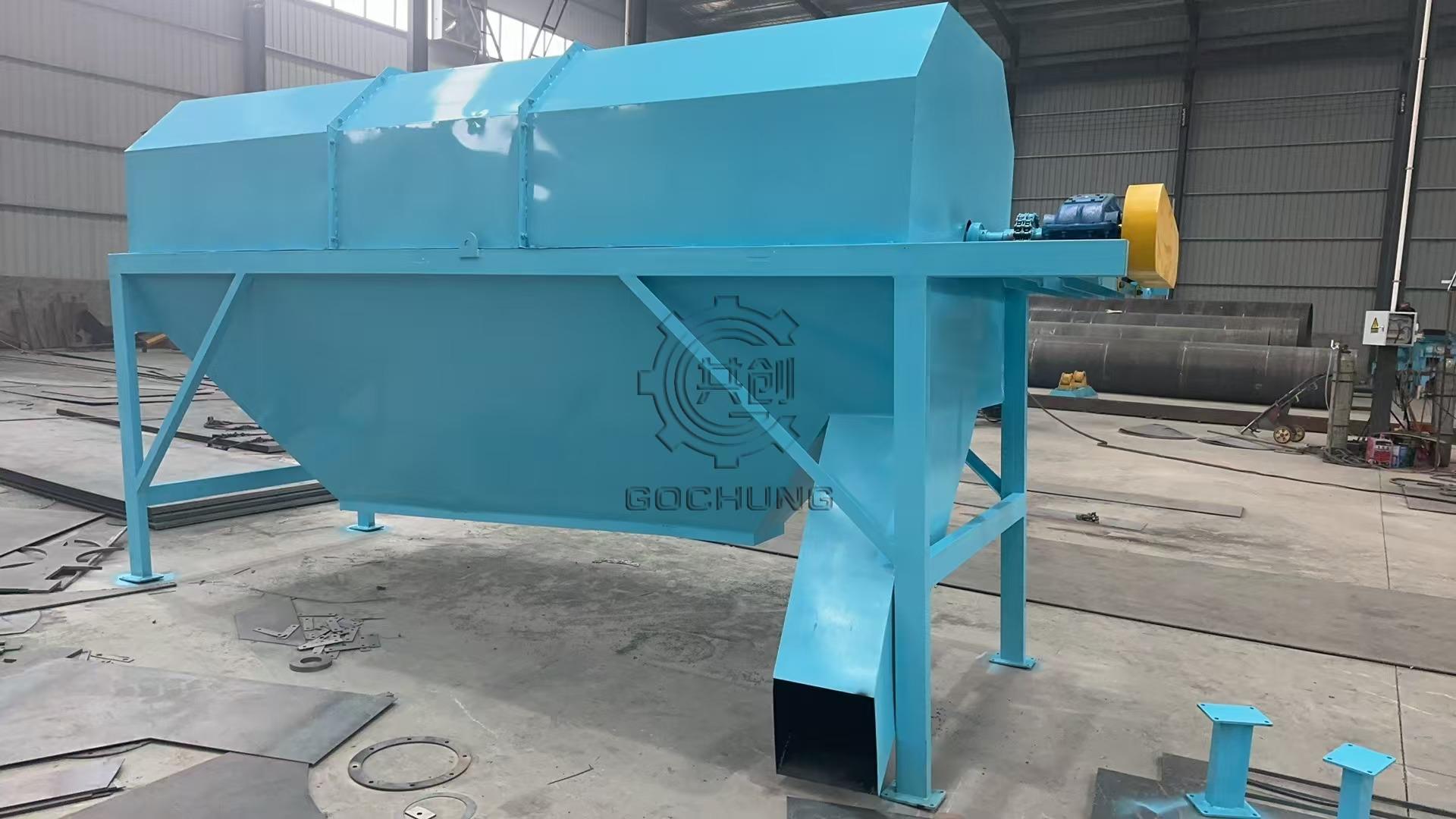

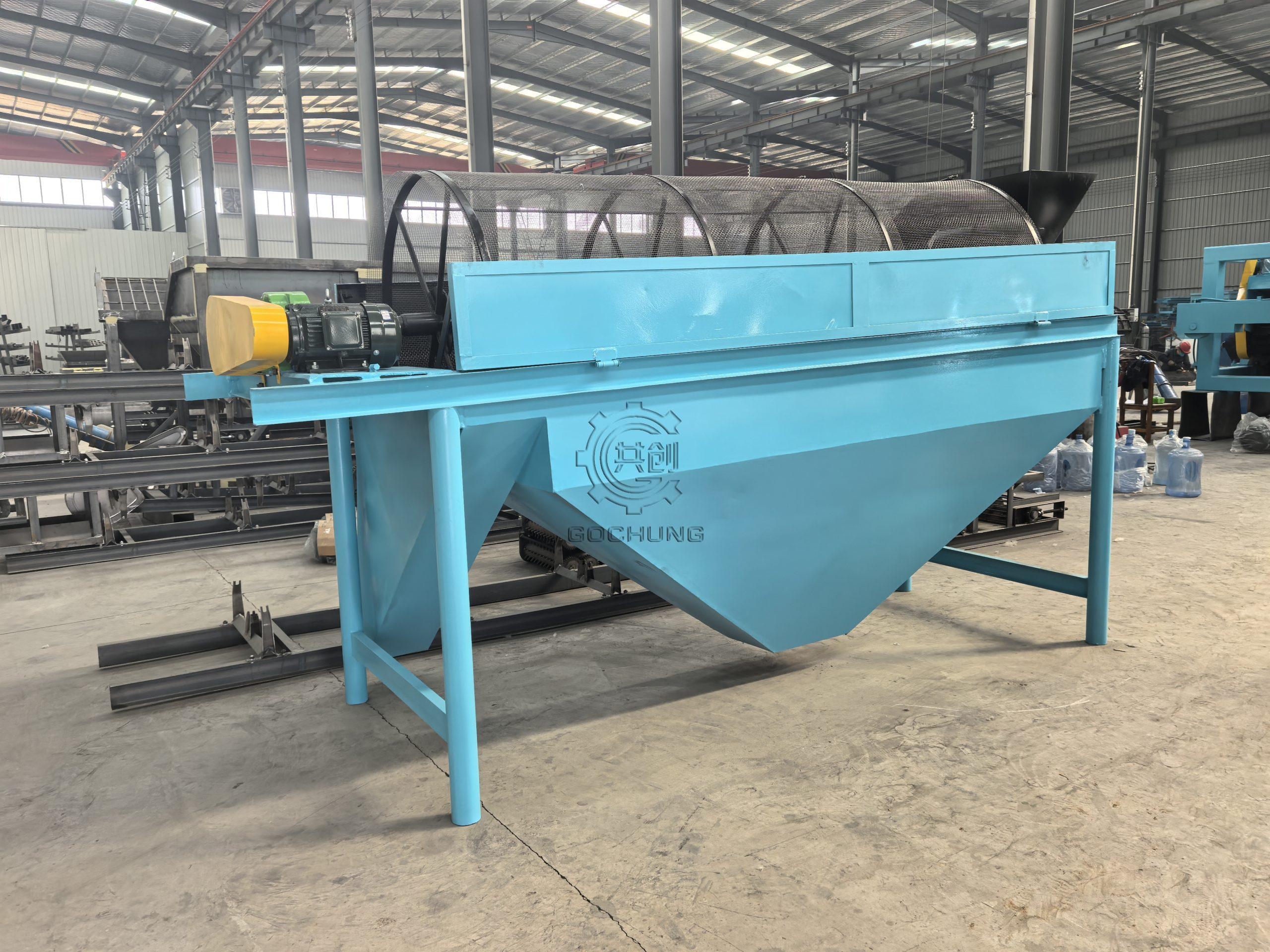

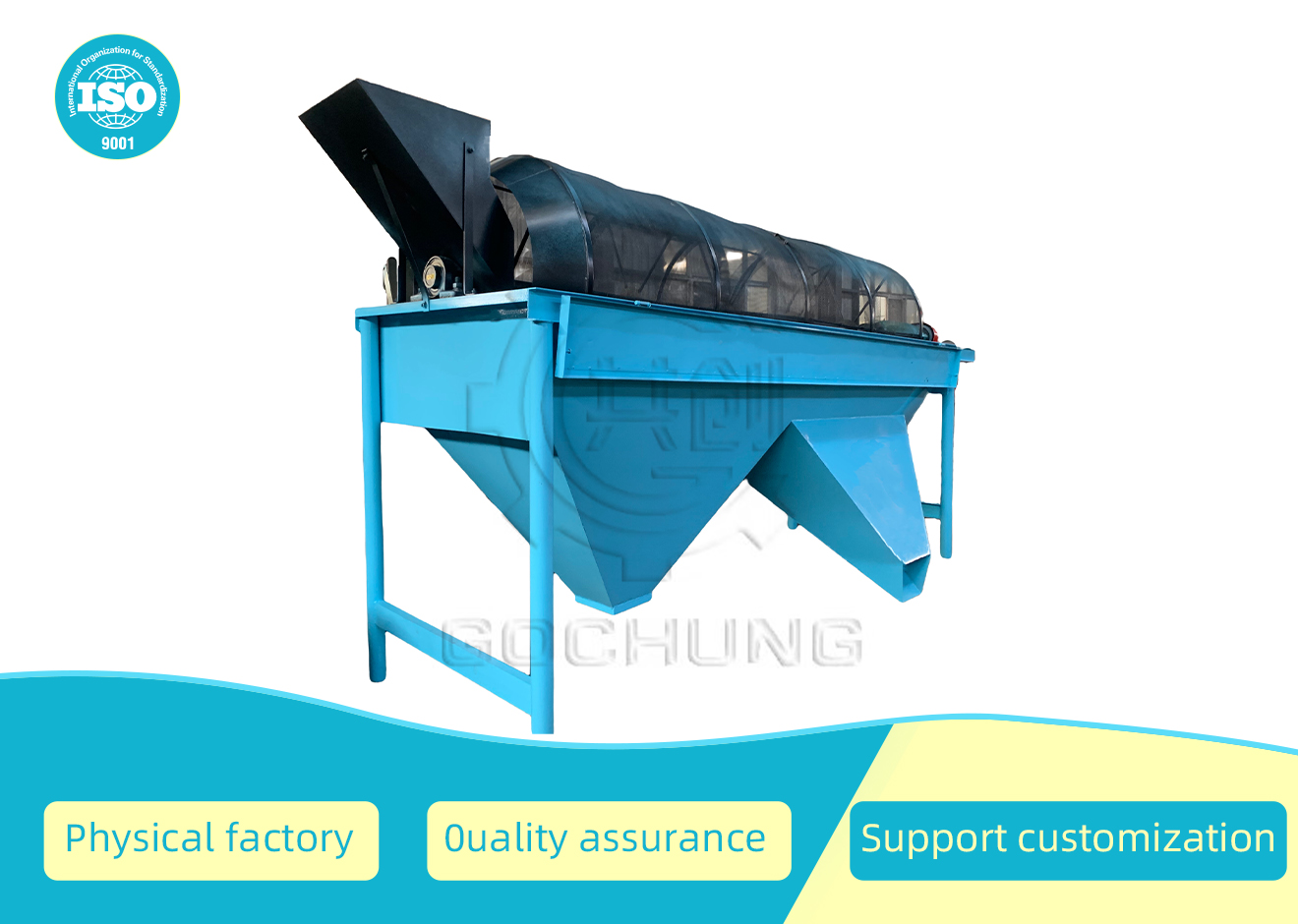

Rotary Screener

【Capacity】1-40T/H
【Motor Power】2.2-15kw
【Introduction】The rotary end extension is mainly composed of a motor, a reducer, a roller device, a frame, a sealing cover, and a material inlet and outlet port.

Features and Advantages

The feeding methods are diverse, that is, manual methods and mechanical transmission, which can realize large-scale production. The central screen uses nylon, stainless steel, manganese steel, and other screens according to different materials. The screen holes are not easy to block, and its screening efficiency is high, and the service life is long. The rotary screener has a low speed, stable operation and low noise. The screening cylinder can be sealed, which is easy to seal and collect dust.

Working Principle

The working principle is to divide the materials into 1–4 sections according to different classification requirements and control the sorting of finished products and resumed materials according to the particle size of the materials, with high sorting accuracy and high efficiency. At the same time, it has strong adaptability to materials, and can screen materials of various natures such as viscosity, high humidity, dirt, miscellaneous, etc.

Technical parameters


Specifications
Cylinder
Speed

Inclination

Power (kw)

Dimensions
length*width*height(m)

Diameter

length

1.0X3.0 1000 3000 22 2-2.5 2.2 3.5X1.3X2.2
1.2X4.0 1200 4000 16 2-2.5 4 5.2X1.5X2.4
1.5X5.0 1500 5000 14 2-2.5 5.5 6.5X1.8X3.0
1.5X6.0 1600 6000 12 2-2.5 7.5 7.5X1.9X3.1
1.8X7.0 1800 7000 11.5 2-2.5 11 7.6X2.2X3.2
2.0X8.0 2000 8000 10 2-2.5 15 8.5X2.2X3.2
