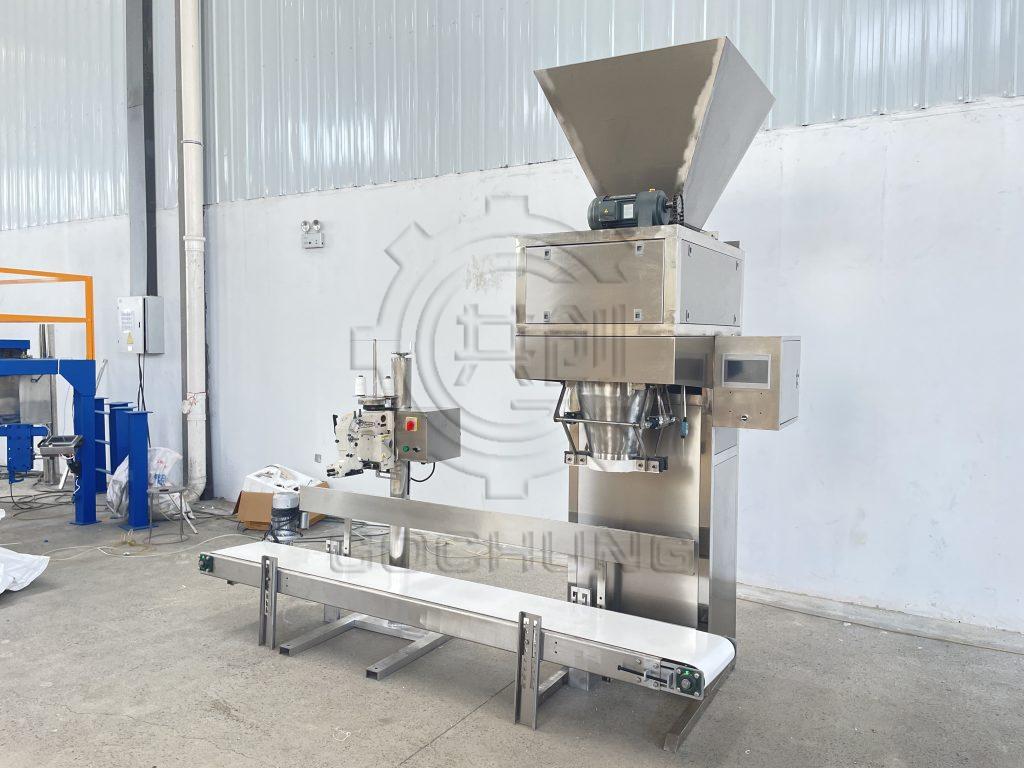

Belt-feed packaging machine

Belt conveyor packaging machines are specifically designed for the automatic weighing and packaging of irregular, granular materials unsuitable for screw conveyors or gravity conveyors. The machine utilizes a belt conveyor system to ensure smooth and stable material transport while minimizing material damage. It is widely used in industries such as fertilizers, feed, biomass, chemicals, mining, and agriculture.

Equipped with a high-precision weighing system and a PLC intelligent control system, this machine offers advantages such as accurate weighing, stable performance, and high packaging efficiency. It can operate independently or be integrated into a fully automated production line.

Features a color touchscreen HMI for intuitive, user-friendly operation and flexible, rapid parameter setting; includes a built-in Chinese help menu, real-time equipment status monitoring, and multi-level password protection to ensure system security and reliability.

Includes automatic statistics and display for package weight and count, showing real-time weight and cumulative totals; supports easy configuration of thresholds for fast and slow feeding stages, as well as seamless switching between automatic and manual operation modes.

Equipped with out-of-tolerance alarms and self-diagnostic functions; automatically detects operational anomalies and displays fault codes to facilitate rapid troubleshooting and maintenance, thereby enhancing operational stability.

Supports preset and automatic control of the number of packages per truckload; automatically stops upon reaching the target count, eliminating the need for manual counting, significantly reducing labor intensity, and improving packaging efficiency.

Utilizes a high-performance PLC weighing control system with features such as automatic calibration, automatic zero tracking, and automatic tare, ensuring long-term weighing accuracy and reliability.

Supports random sample re-checking and verification, allowing for accuracy adjustments based on actual test results to ensure package weights meet production specifications.

Features comprehensive power-loss protection; automatically saves operational status during power outages and allows for quick resumption of operation upon power restoration, while ensuring the material gate resets automatically to prevent spillage or blockages.

Uses RS485 communication for data transmission between the weighing control cabinet and remote I/O modules, ensuring stable, reliable communication with strong anti-interference capabilities.

Comes with intelligent control software integrating parameter configuration, operational monitoring, data management, fault diagnosis, and alarm notifications, enabling automated and digital management of the packaging process.

turn on the power switch, start the equipment button, and the material lifting packaging machine silo stops when the silo reaches a certain limit. At this time, the automatic button device on the touch screen is opened, and the packaging bag is placed at the lower opening to touch the start switch cylinder. Work to fix the bag at the discharge port, the throttle valve is opened (the throttle valve is for the material to fall off when the equipment is stopped), the belt conveyor starts to work, and the controller starts to weigh (the belt conveyor speed is divided into three types: fast, medium and slow). When the equipment reaches the set target value, the belt speed is automatically slowed down, the feeding amount can be controlled more accurately, but the accuracy of the packaging material can be packaged, and the set standard value device stops working, and the touch control switch is called The heavy material door is opened, the material is detached from the packaging bag, the weighing material door is closed, the cylinder opens the packaging bag and automatically falls off, and the conveyor belt starts the transmission sealing, the seam packaging machine automatically seals the process.
