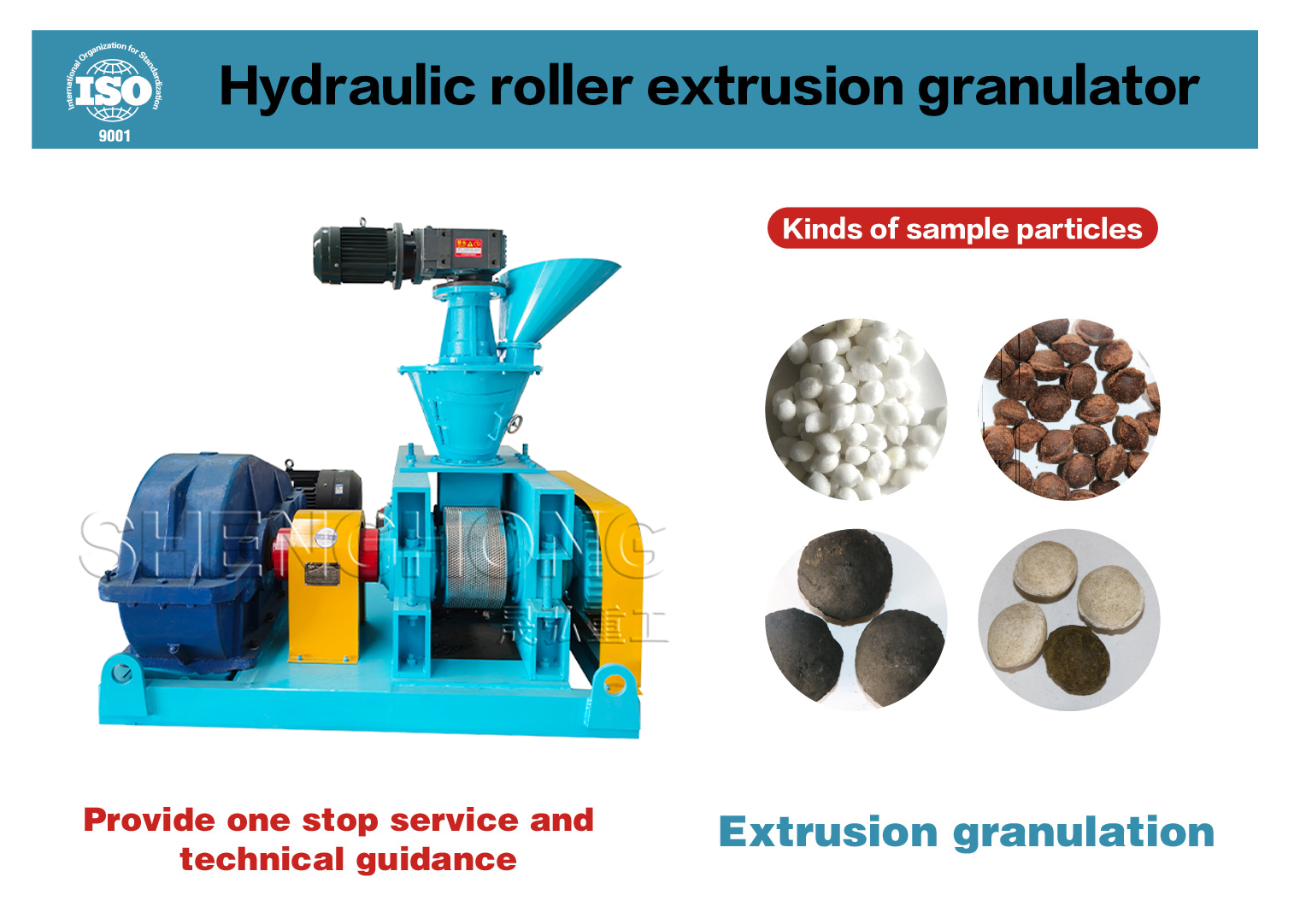

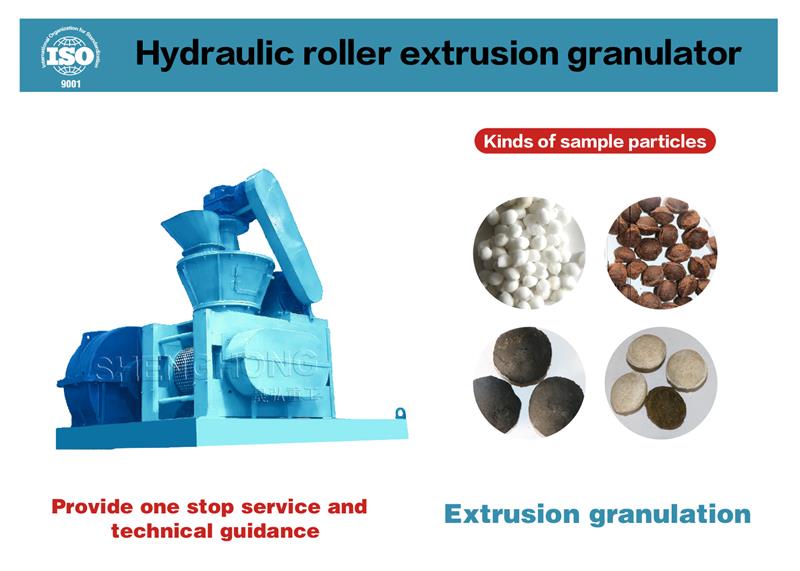

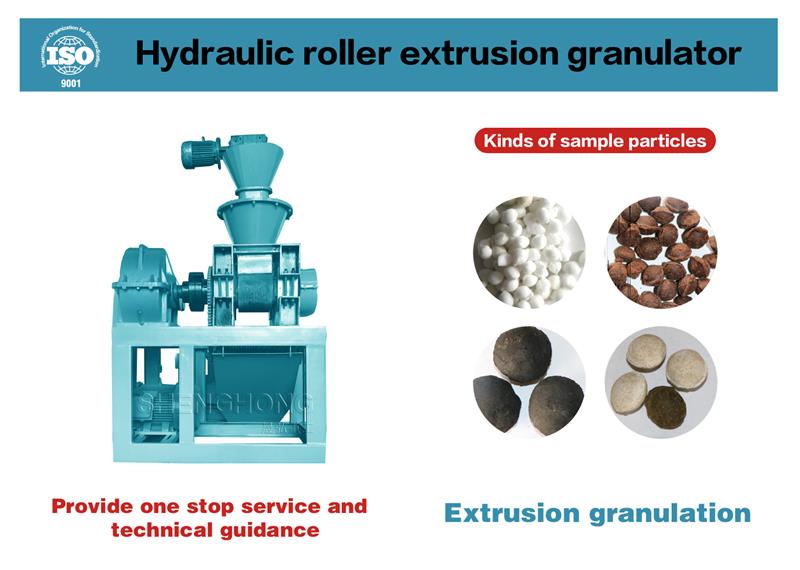

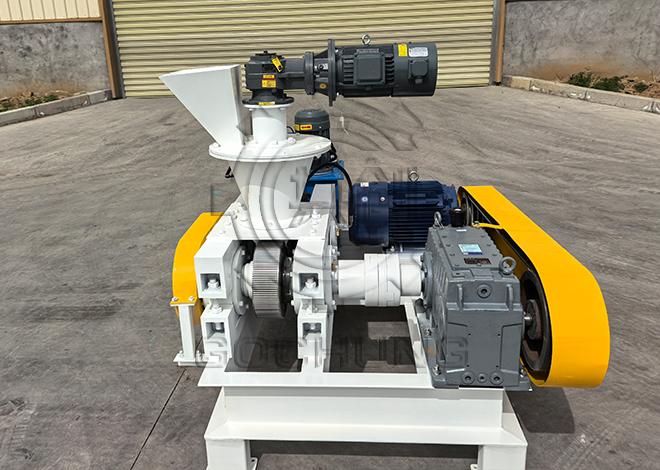

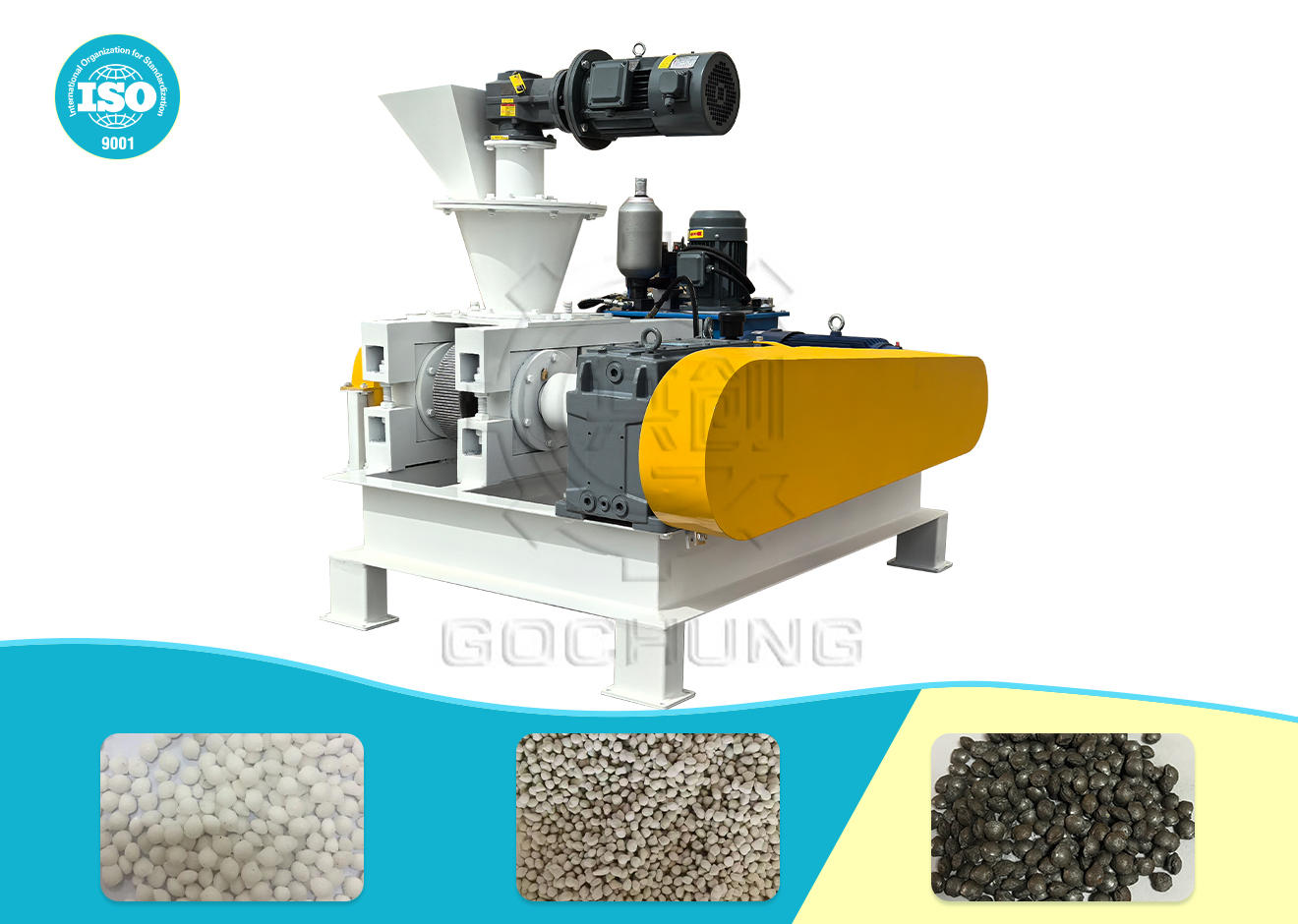

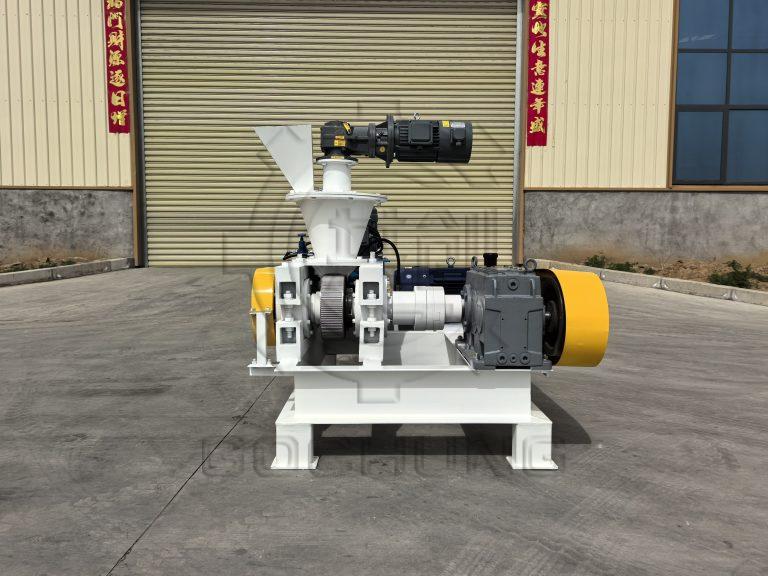

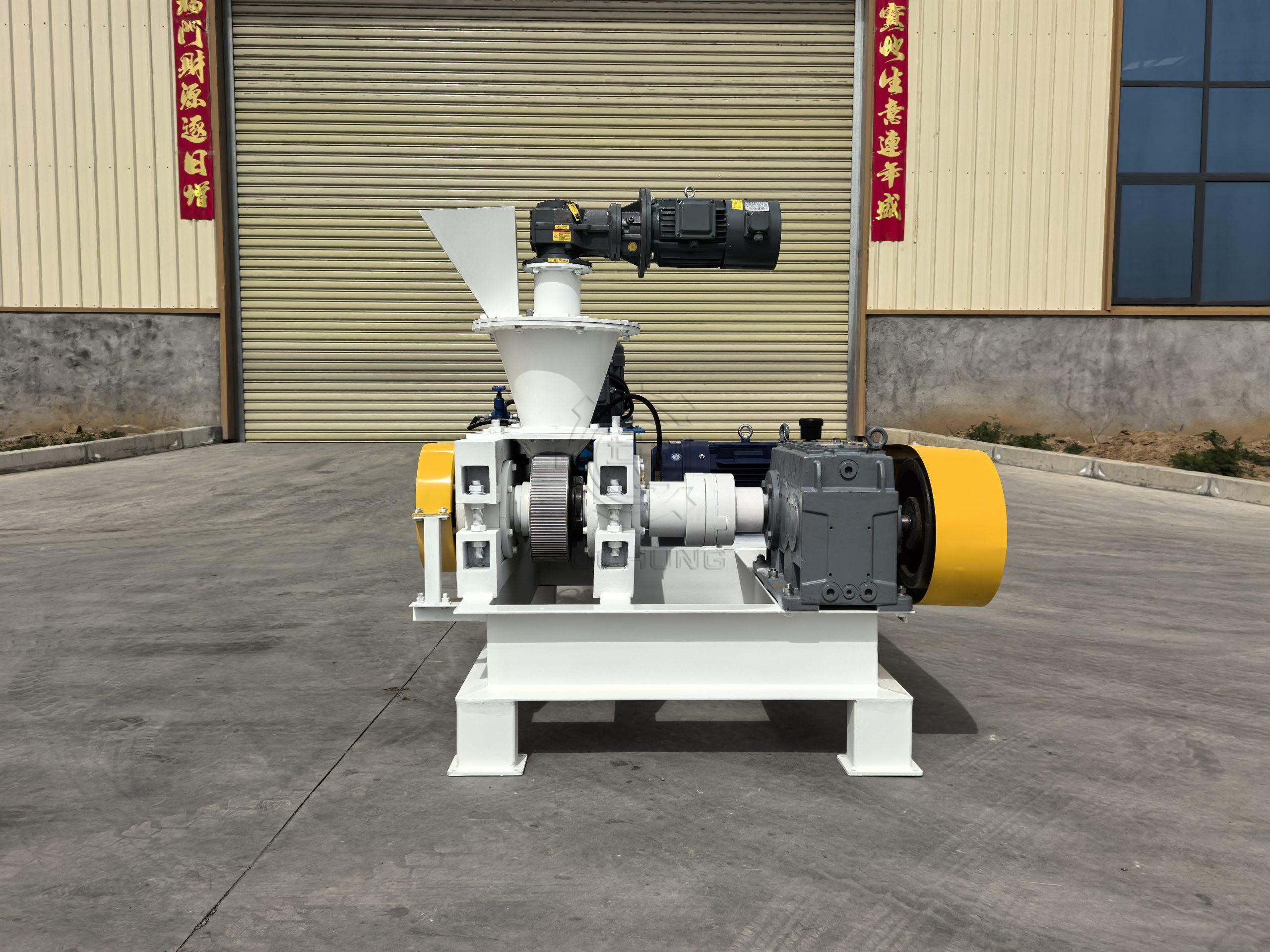

Hydraulic Roller Granulator

【Capacity】2-10T/H
【Motor Power】55-90kw
【Granular Diameter】3-10mm
【Applications】Compound fertilizer, medicine, feed, chemical, rare earth, metallurgy, coal, and other various types of raw materials’ granulation.
【Equipment Video】

Applications and Functions

The hydraulic roller granulator adopts dry roll pressing technology to compress the powder material with water content ≤8% into a sheet or block, and then through the crushing and screening process, the block material becomes the granular material that meets the requirements of use.

Features and Advantages

Dry roll granulation mainly relies on external pressure, so the material is forced through the gap between the two relative rotating rollers, forced compression into pieces, in the rolling process, the actual density of the material can be increased by 1.5 to 3 times, to achieve a certain particle strength requirements.

Technical parameters

Model SHZ-30 SHZ-45 SHZ-60
Rolling diameter (mm) Φ450×250 Φ450x400 Φ600x400
Effective use width (mm) 250 400 250~400
Roll speed (rpm) 14~30 10~25 10~25
Host power (Kw) 55 75 90
Rotation speed (r/min) 1450 1480 1485
Finished product output (t/h) 2~4 3~6 5~10
Finished particle size (mm) 3~30 3~50 5~60
Dimensions (L.W.H.) 2300*2480*2050 2580*2100*2110 3000*2800*2200
