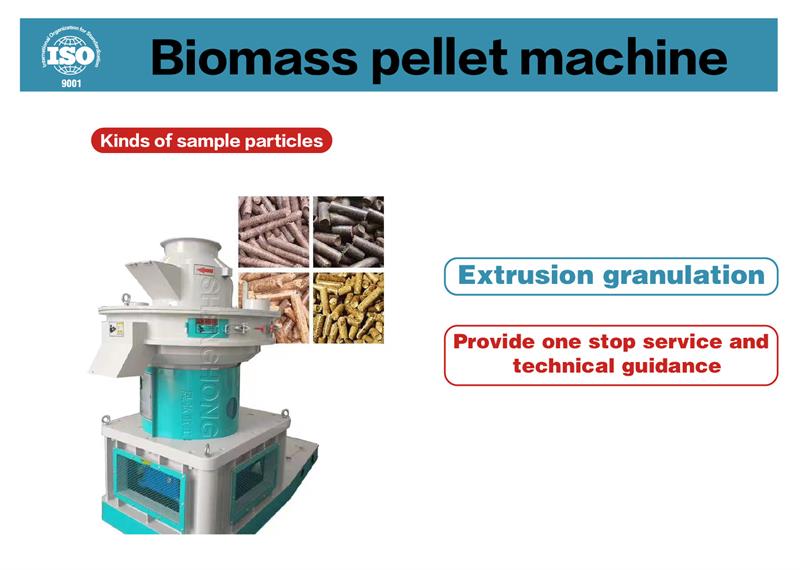

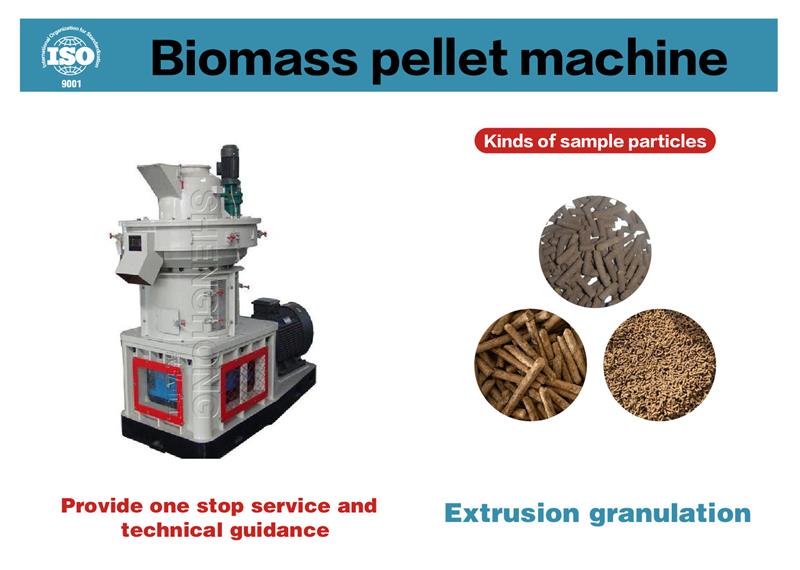

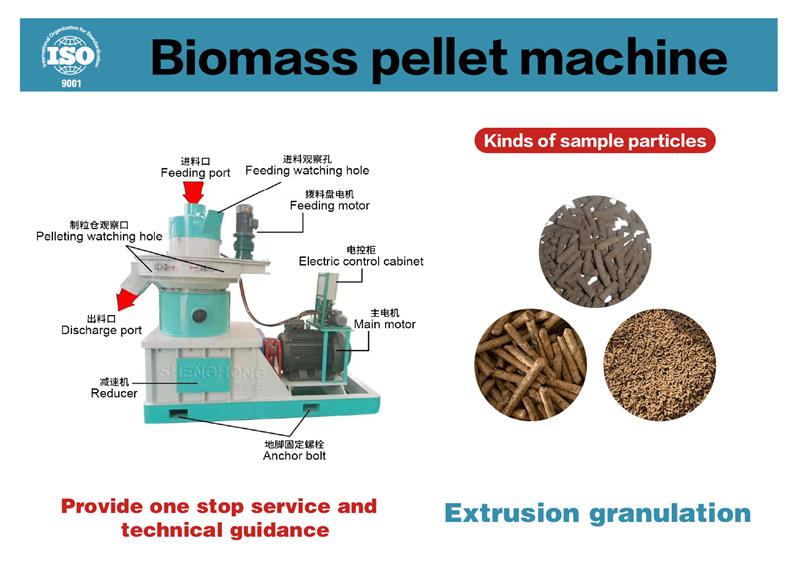

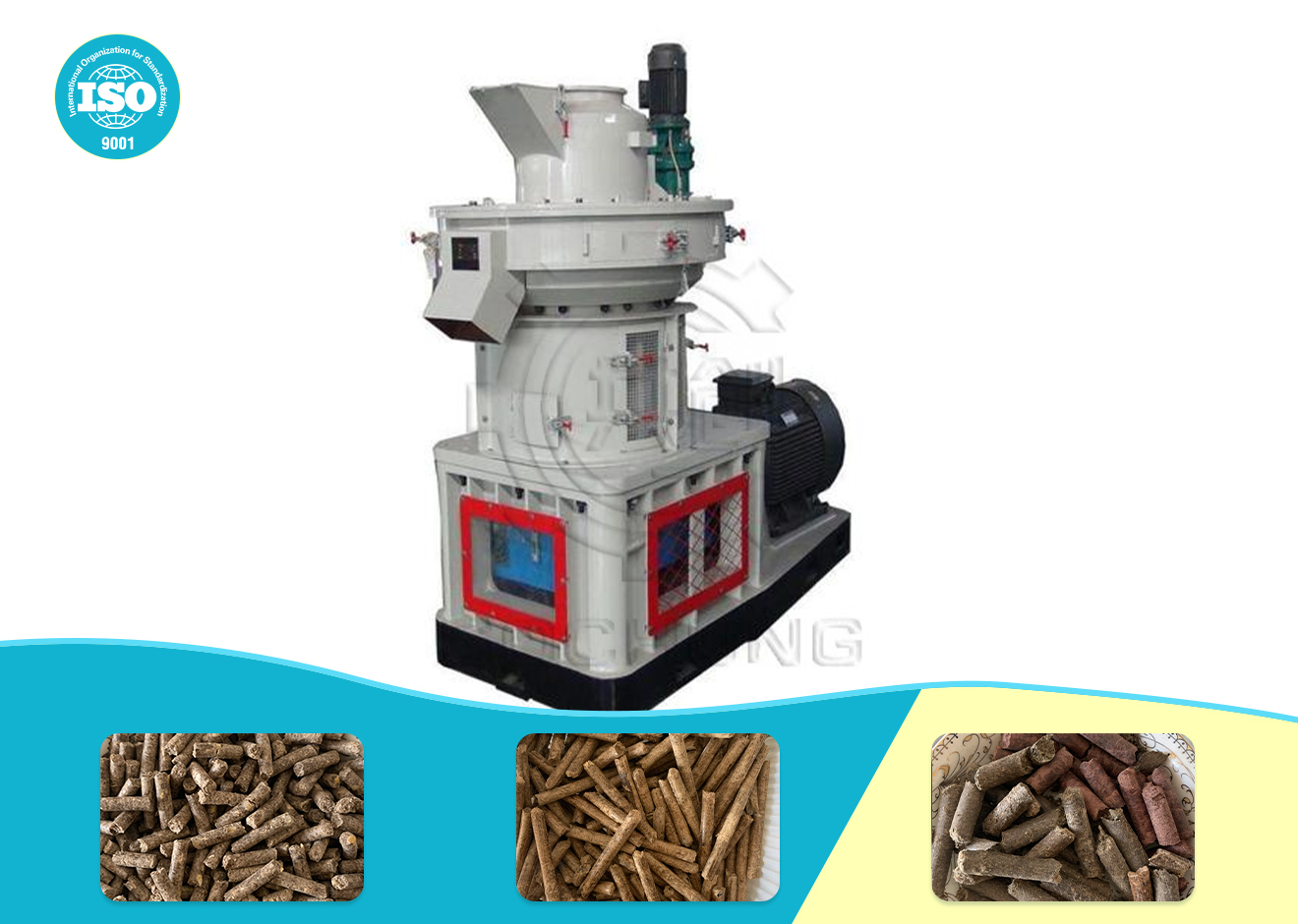

It is widely used in biofuel plant power plants, wood processing plants, fertilizer plants, chemical plants, food factory distilleries, and other waste materials recycling. It is a high-density granulation molding equipment.
| Model | Powder (KW) | Particle size (mm) | Internal diameter | Capacity(t/h) | Dimensions (mm) |
| YFK450 | 55 | Φ4-Φ12 | 450 | 0.3-1 | 2200X900X1600 |
| YFK550 | 75 | Φ4-Φ12 | 550 | 1-2 | 2300X1000X1780 |
| YFK580 | 110 | Φ4-Φ12 | 580 | 2-2.5 | 3200X1400X2400 |
| YFK600 | 132 | Φ4-Φ12 | 600 | 3-4 | 3200X1500X2450 |
| YFK850 | 220 | Φ4-Φ12 | 850 | 4-6 | 3750X1650X3250 |
| YFK880 | 315 | Φ4-Φ12 | 880 | 5-7 | 4300X1900X3600 |
Applications and Functions The hydraulic roller granulator adopts dry roll pressing technology to compress the powder material with water content ≤8% into a sheet or…
Applications and Functions New organic fertilizer special granulator, used for livestock manure, urban sludge, and domestic waste processing organic fertilizer one of the granulation equipment.…
Applications and Functions The rotary drum granulator uses a special rubber liner or acid-resistant stainless steel liner to achieve automatic descaling and detumescence, eliminating the…
Horizontal Fermenter Use This equipment is suitable for various regions, including high humidity and high cold areas, and adopts a vertical, enclosed tank structure to…
