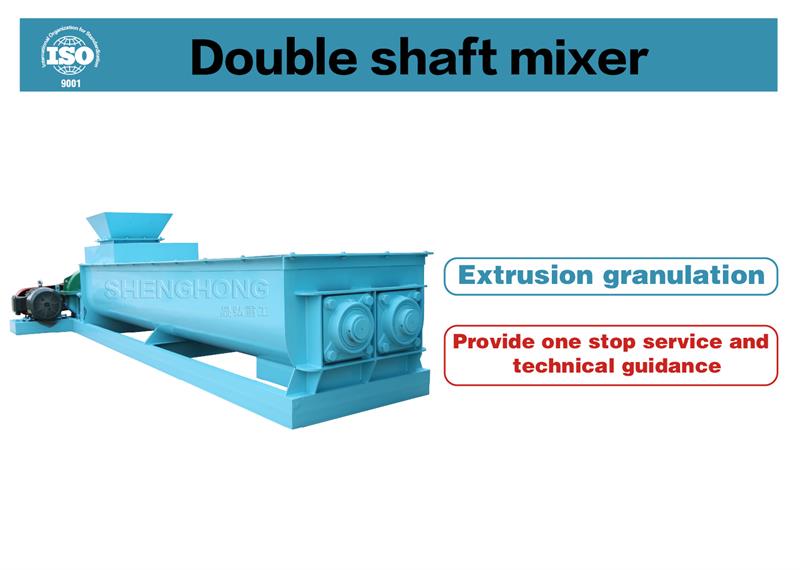

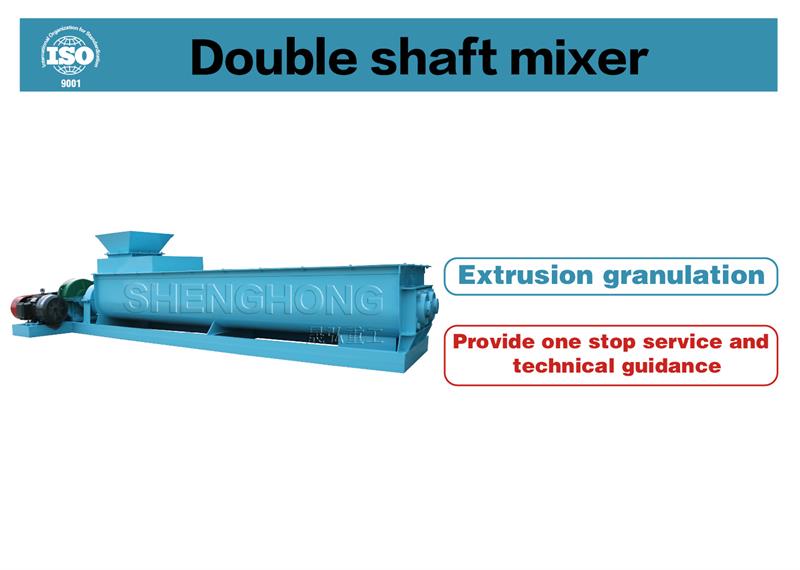

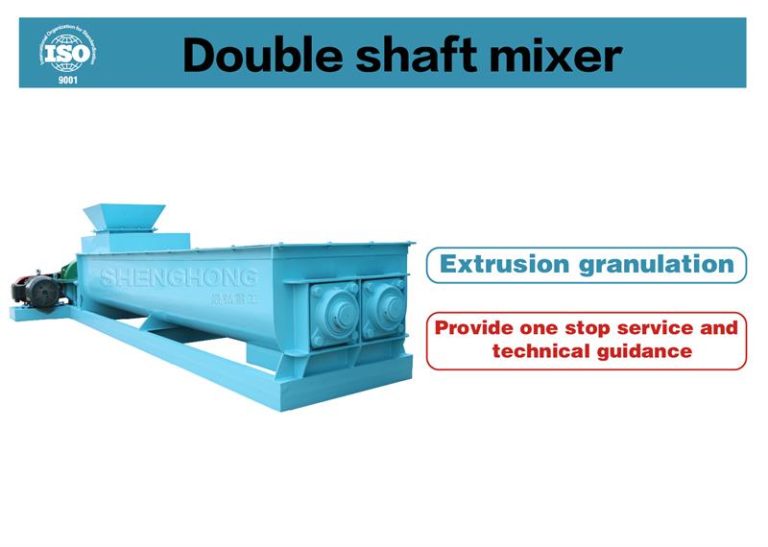

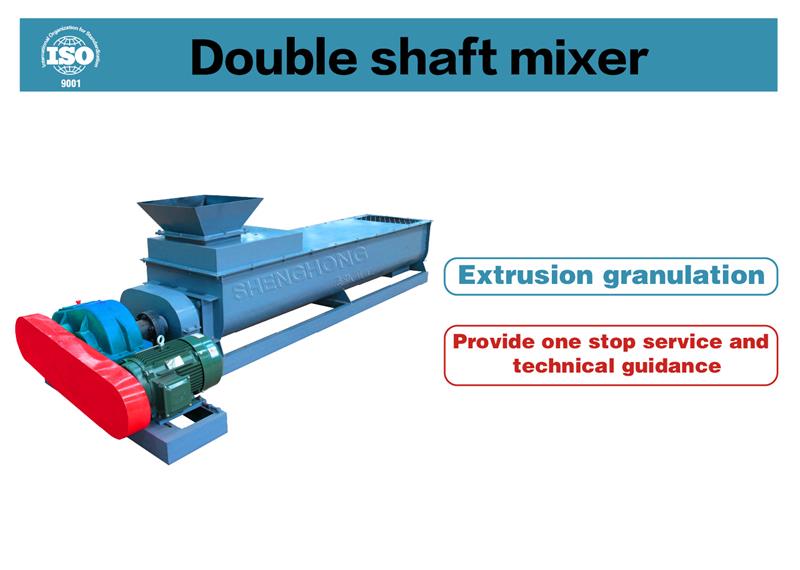

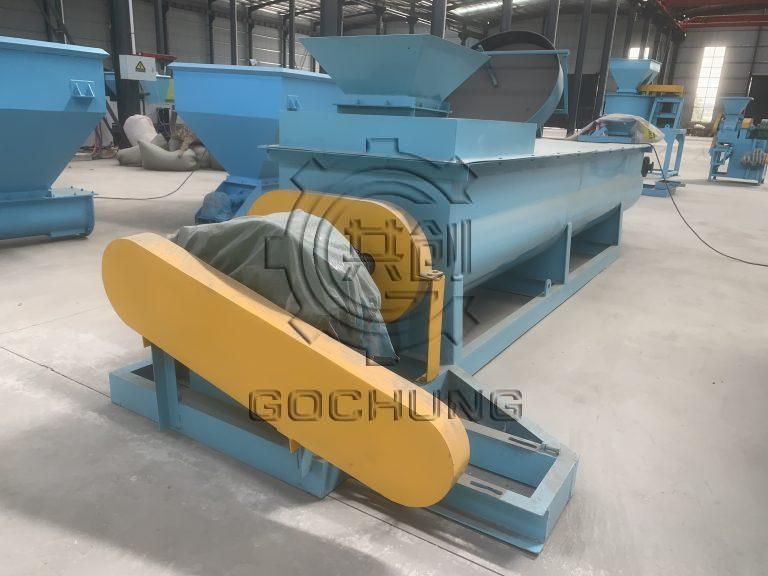

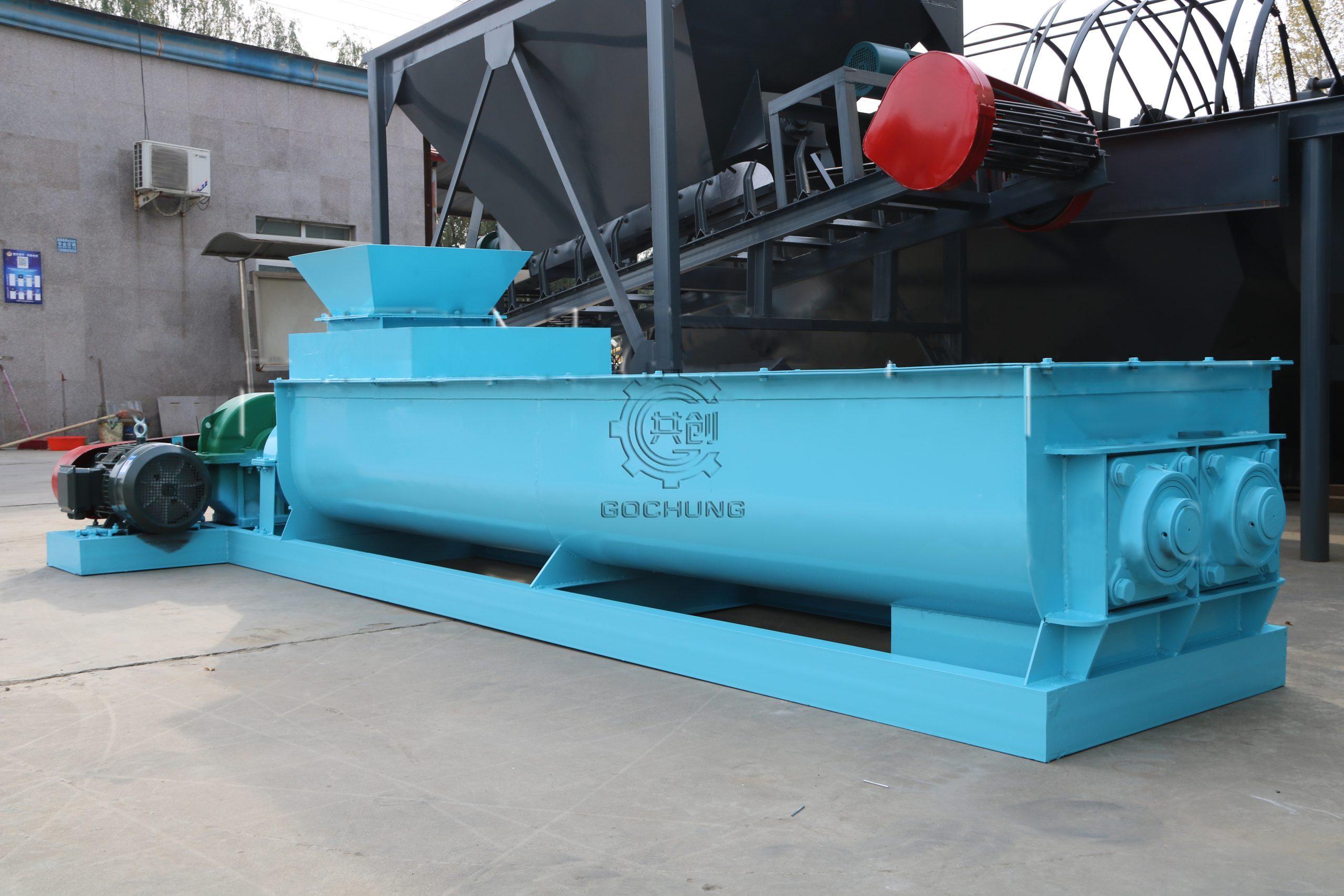

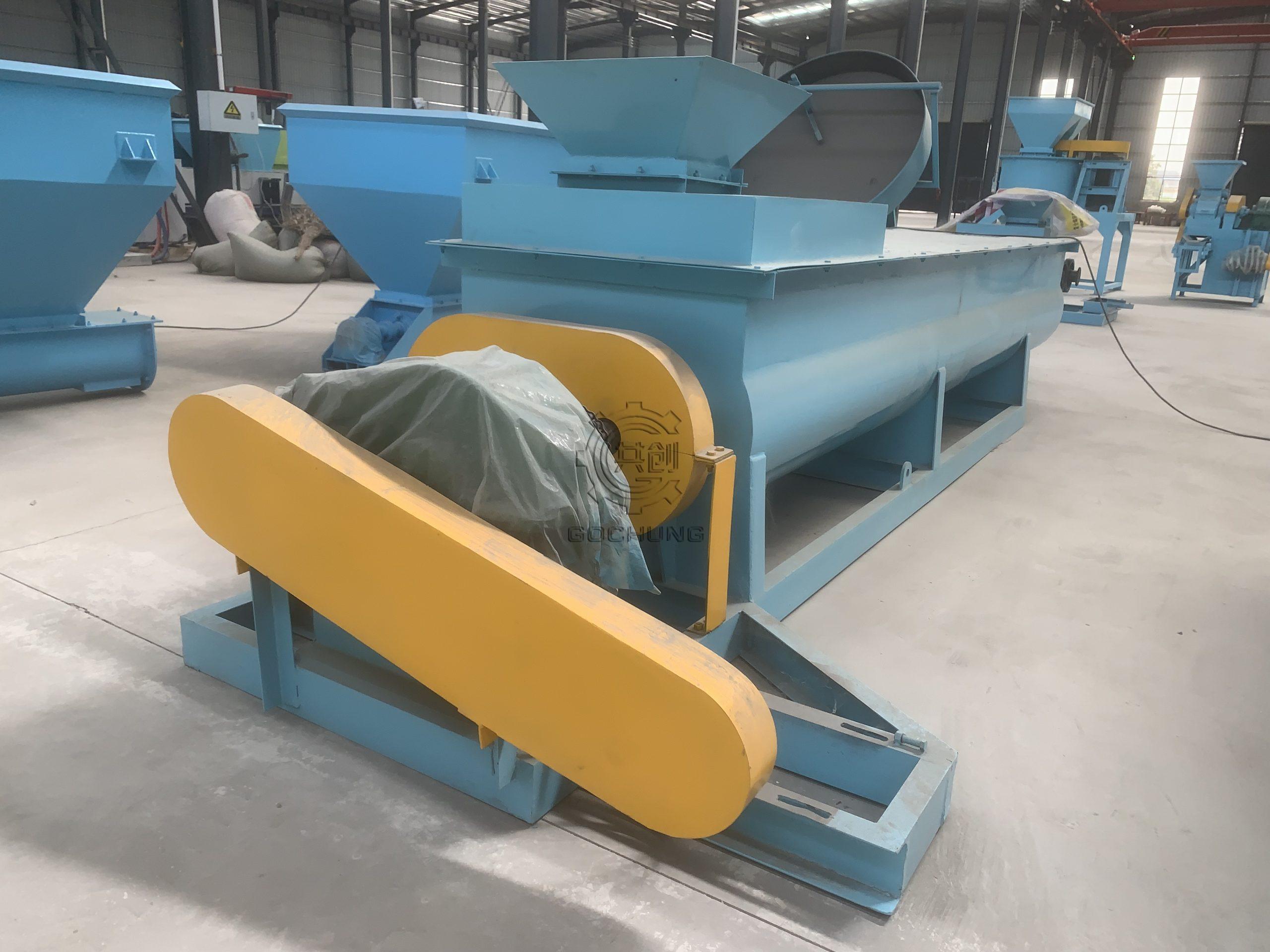

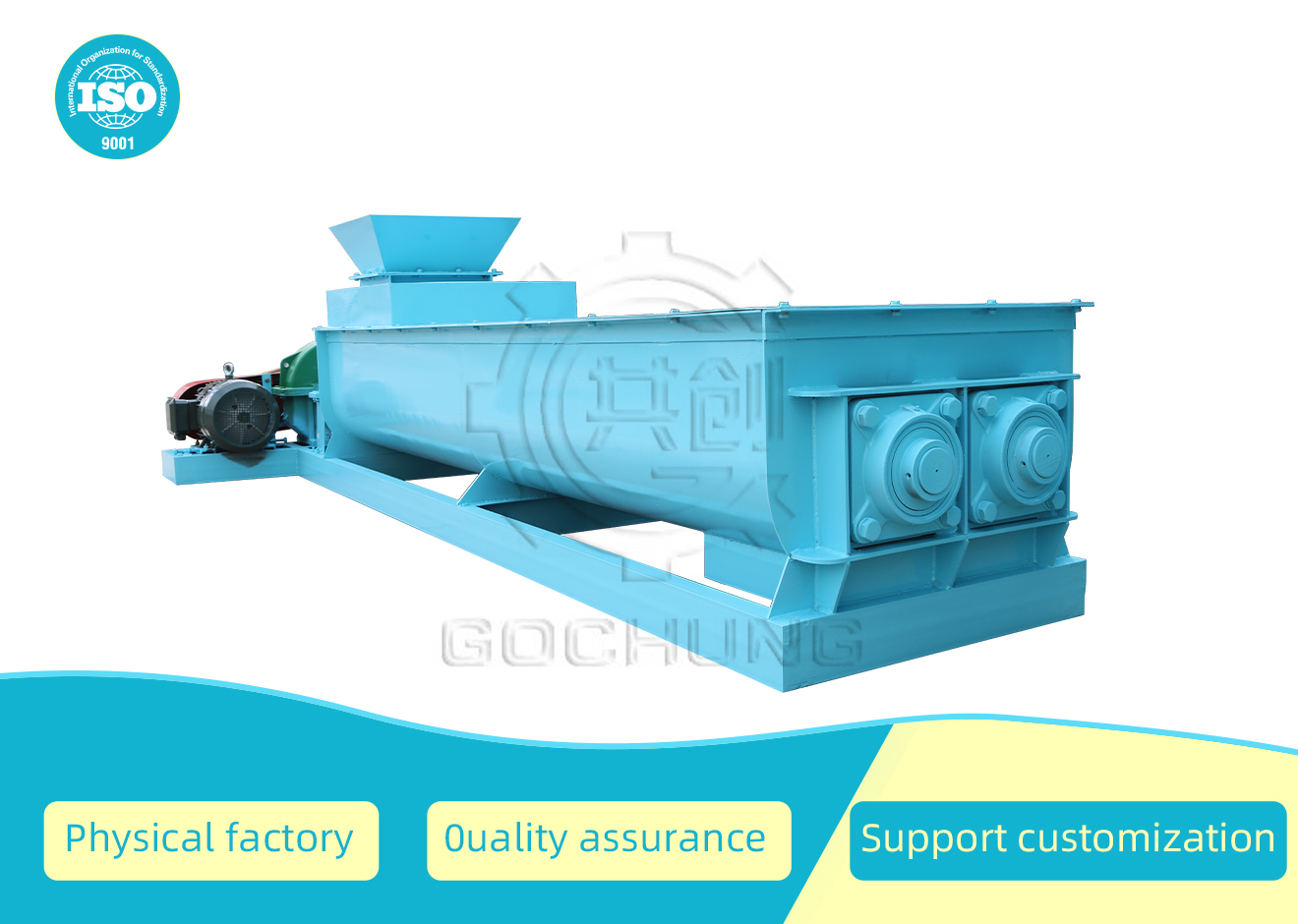

Double Shaft Mixer

【Capacity】1-50T/H
【Power】11-75kw
【Introduction】The double-shaft mixer rotates relatively through two sets of shafts with helical blades and adds water to spray, mix, and transport the powdery materials so that the powdery materials can reach a controllable humidity.

Applications and Functions

This equipment is mainly suitable for the humidification and mixing of raw materials in the fertilizer industry so that the materials are fully mixed and have the function of conveying. When a certain amount of raw powder flows into the mixing tank from the feeding port, it is atomized and sprinkled on the raw powder several waters with relative pressure, and then the shaft of qualitative length is stirred by the mixing blade to form a ball core with consistent water content, The whole mixing is divided into three areas: atomization area, mixing area and discharge area. The stirring blade has good wear resistance and long service life.

Technical parameters

ModelPower (kw)Speed (r/min)Yieldlength X width X height (mm)
SH-4001152154113*1300*1053
SH-5003053305180*1500*1100
SH-6003752505600*1686*1390
SH-7504552605600*2100*1594
SH-10007552806685*3050*1350
