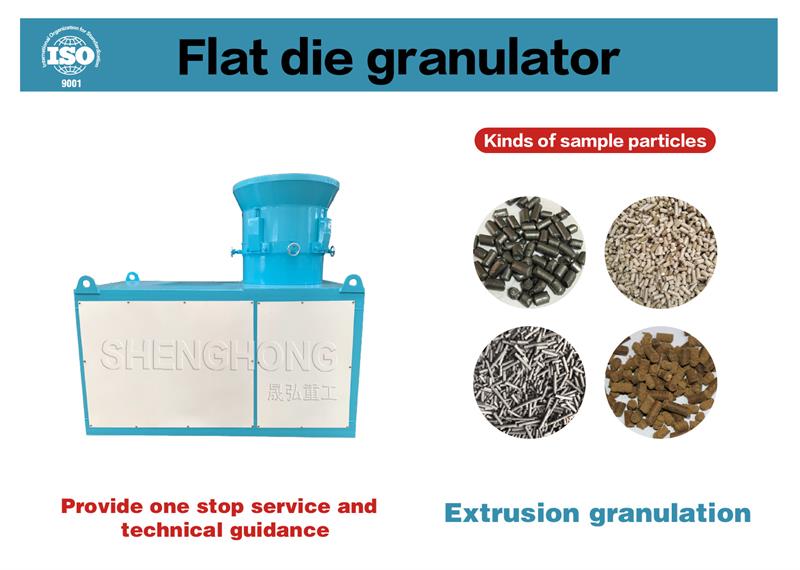

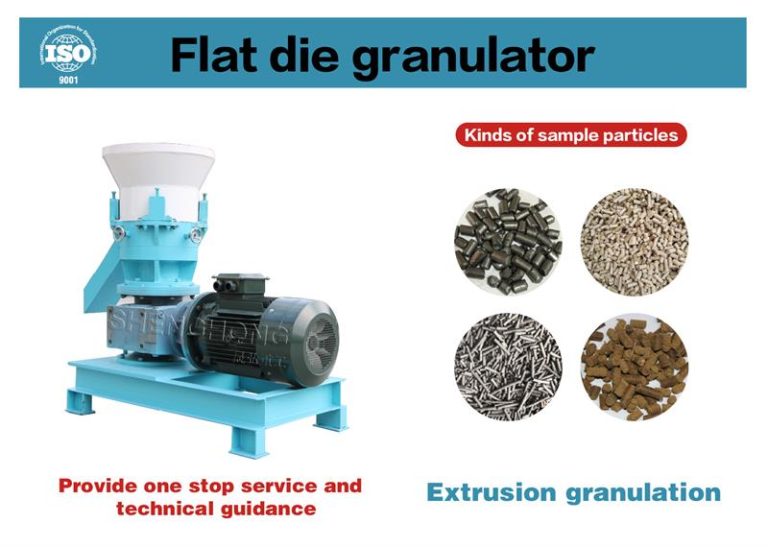

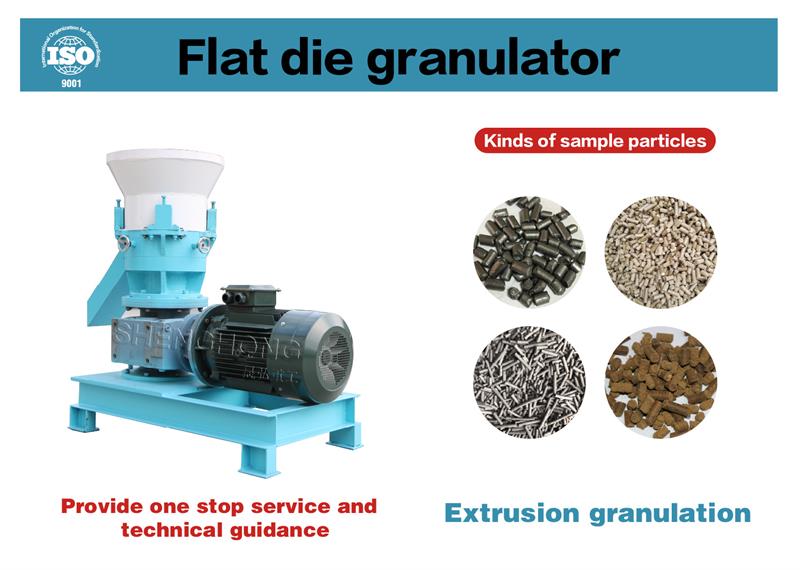

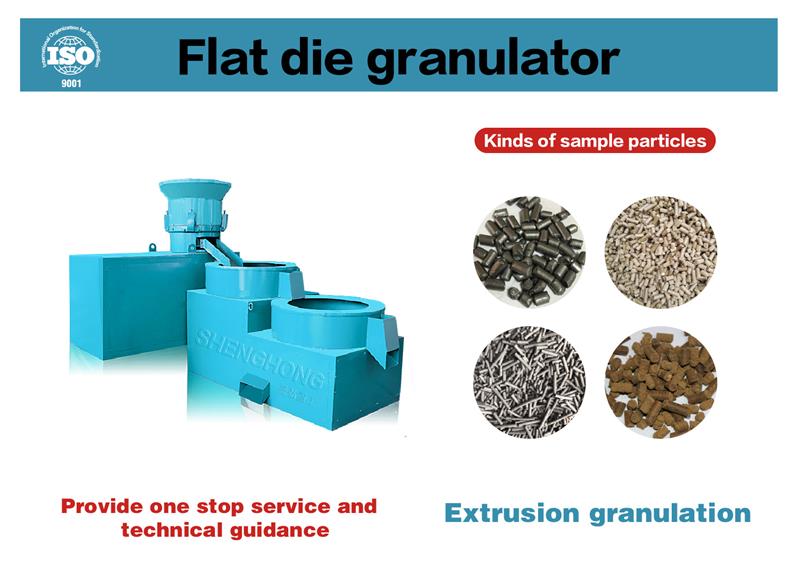

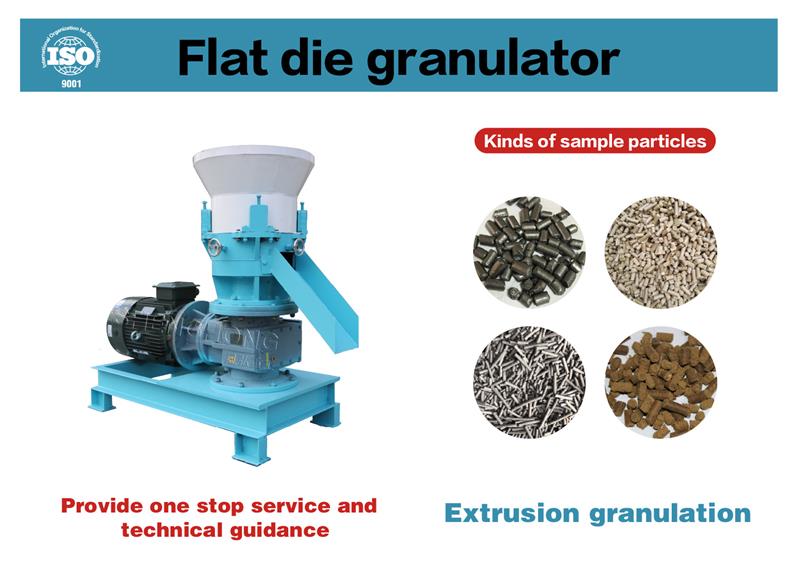

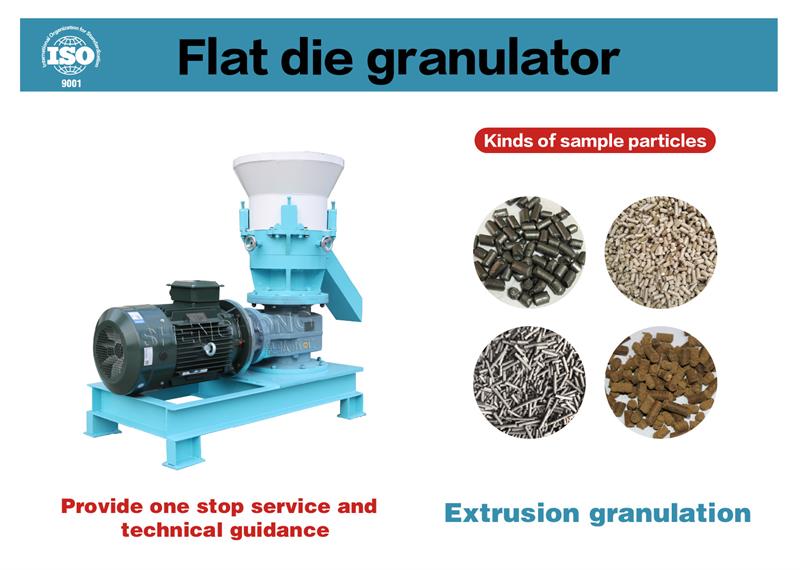

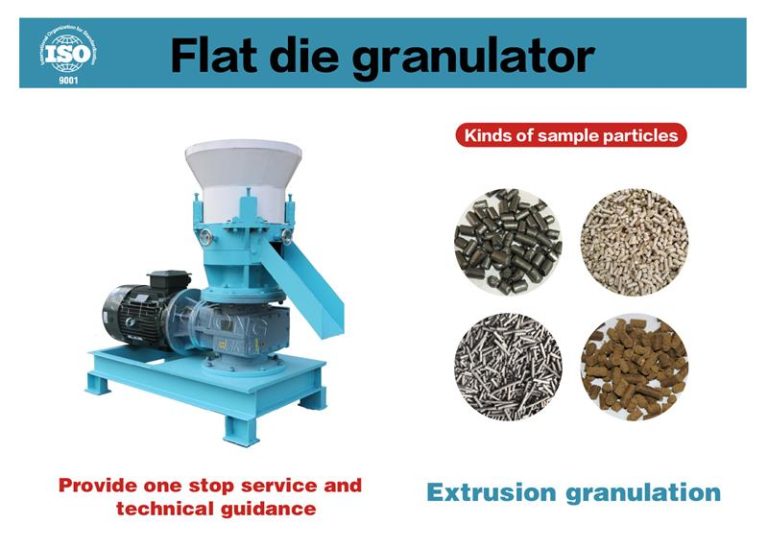

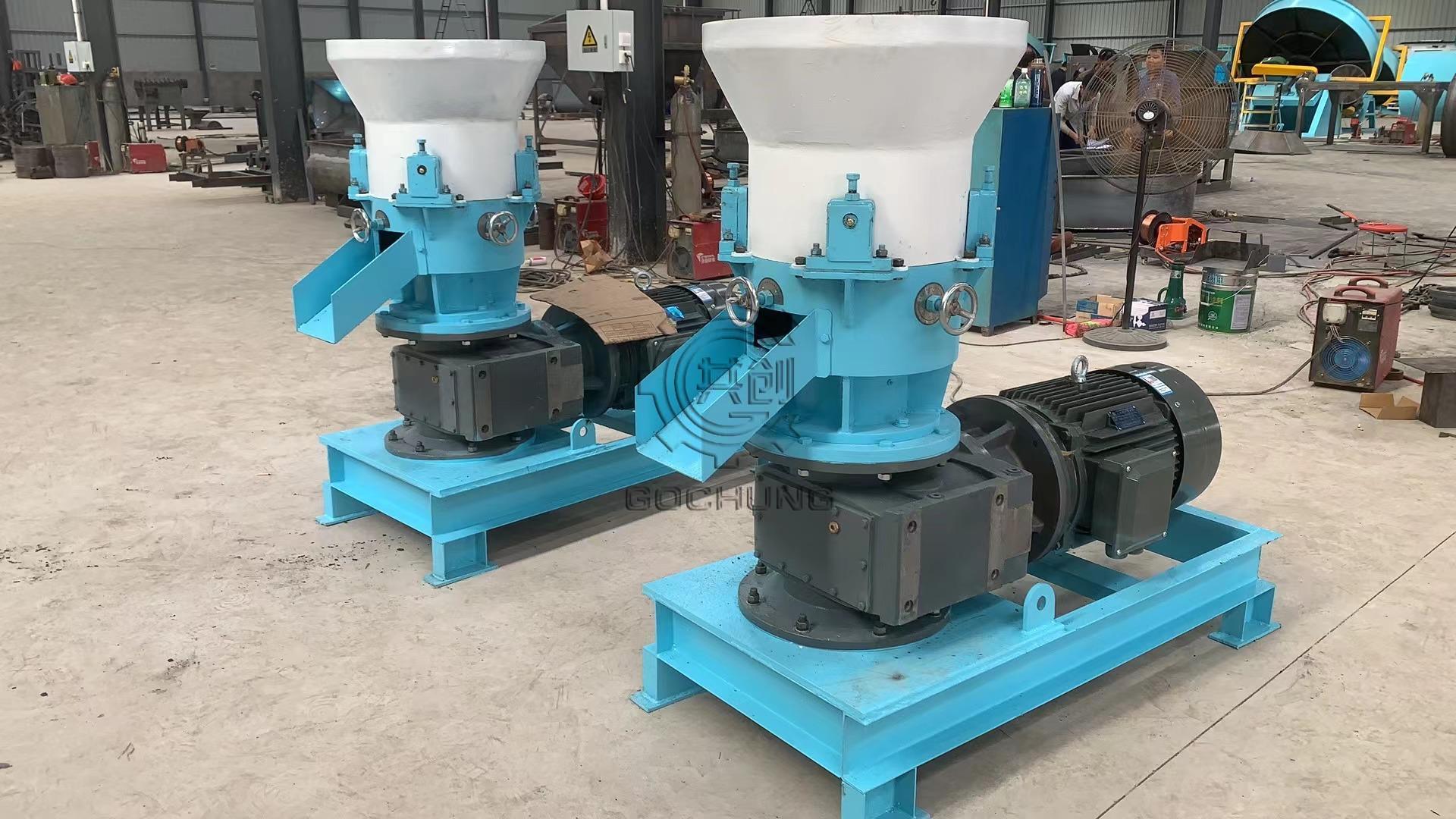

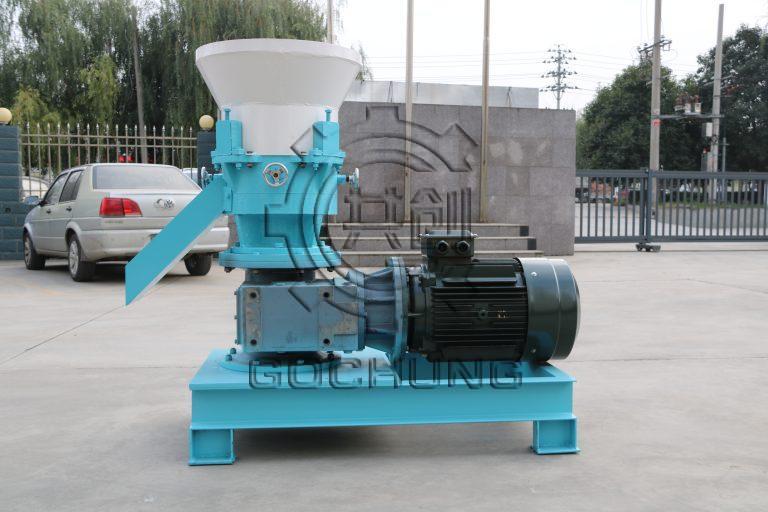

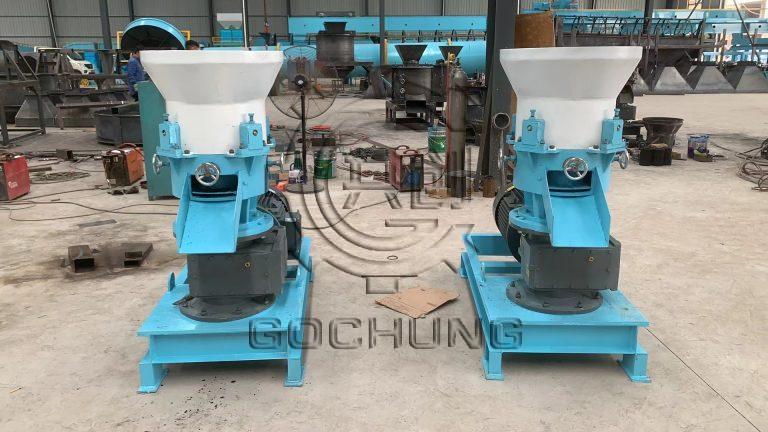

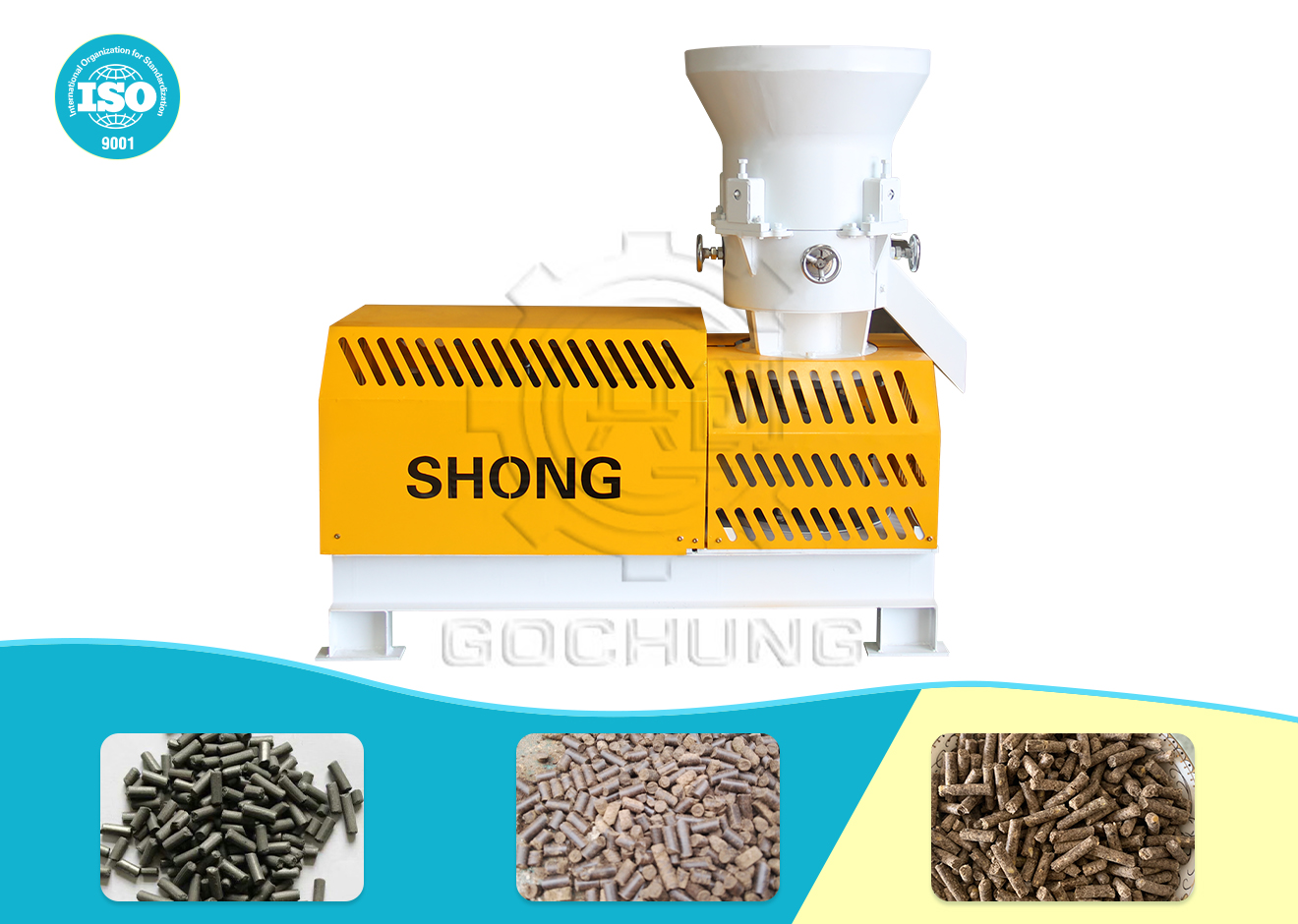

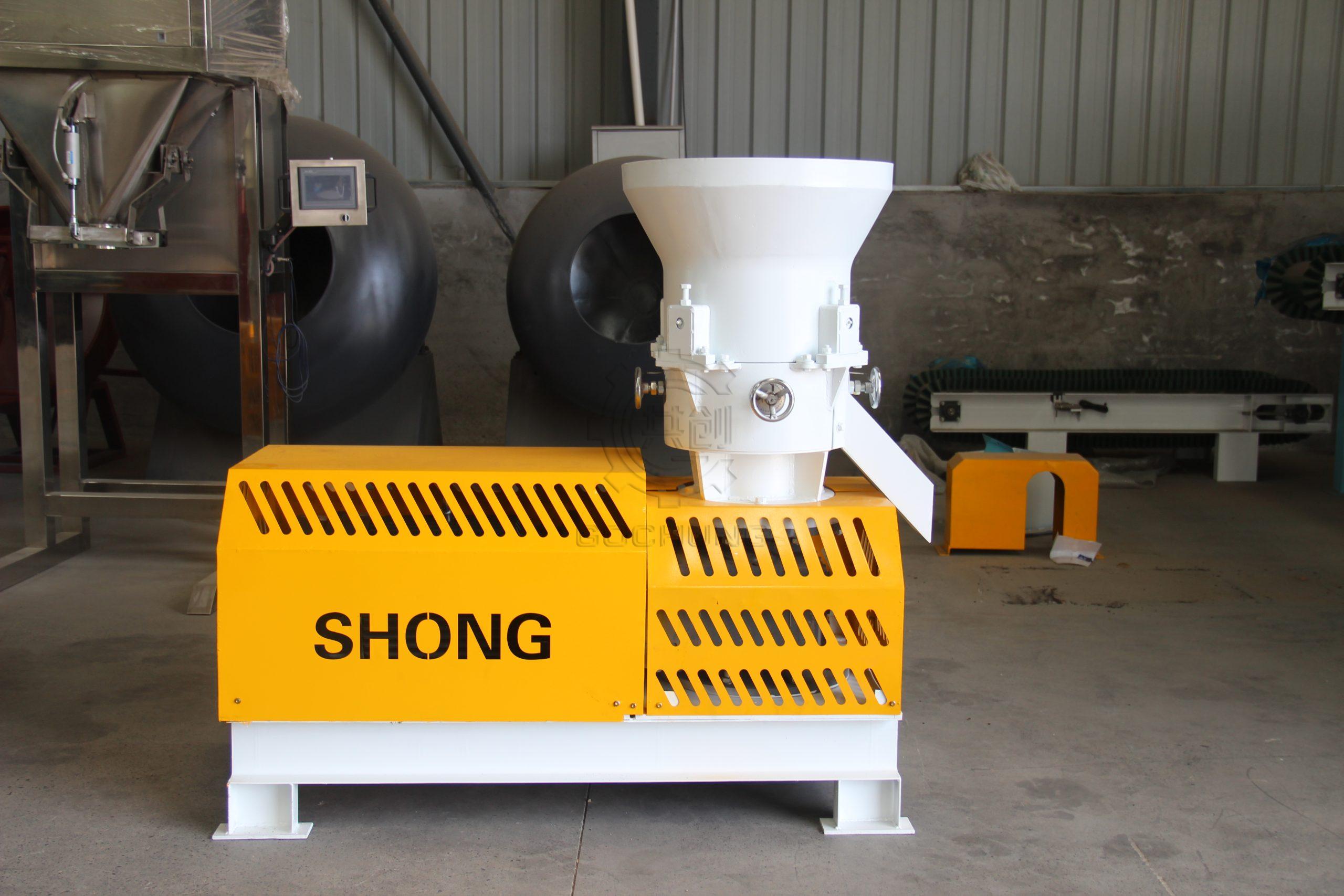

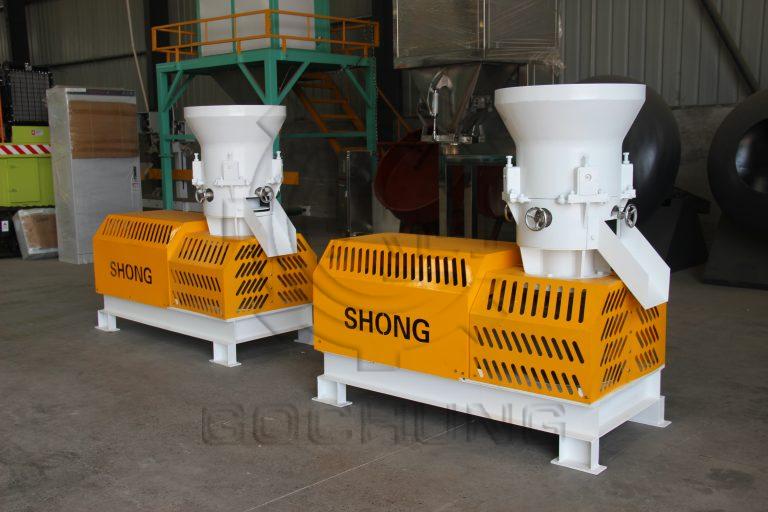

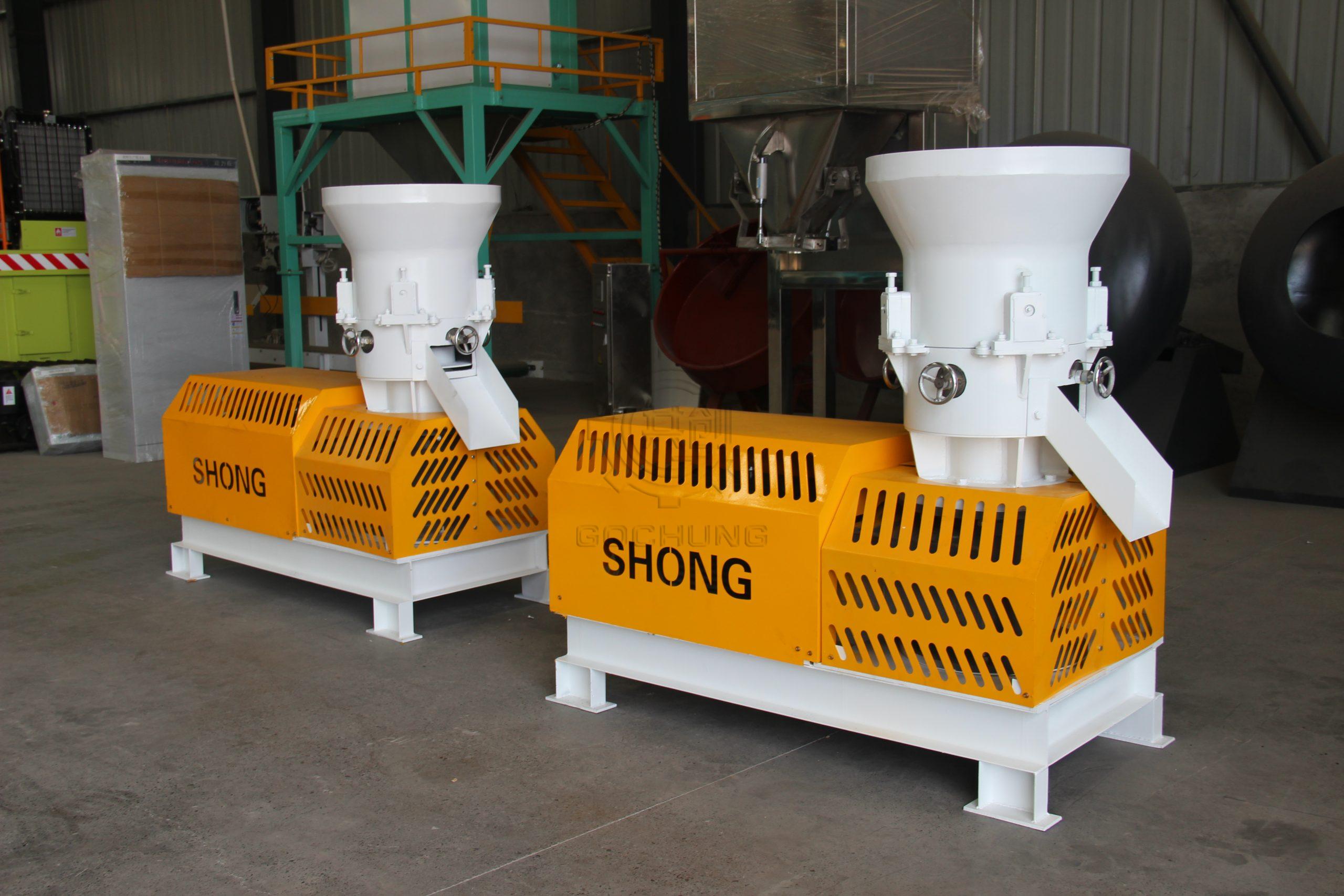

Flat Mold Granulator

【Motor Power】22-45kw
【Granular Diameter】2-10mm
【Applications】The processing and production of animal manure, sludge, biogas slag and other organic fertilizer, inorganic fertilizer, compound fertilizer and other fertilizer particles, and  the processing of biomass energy particles and feed grain processing.

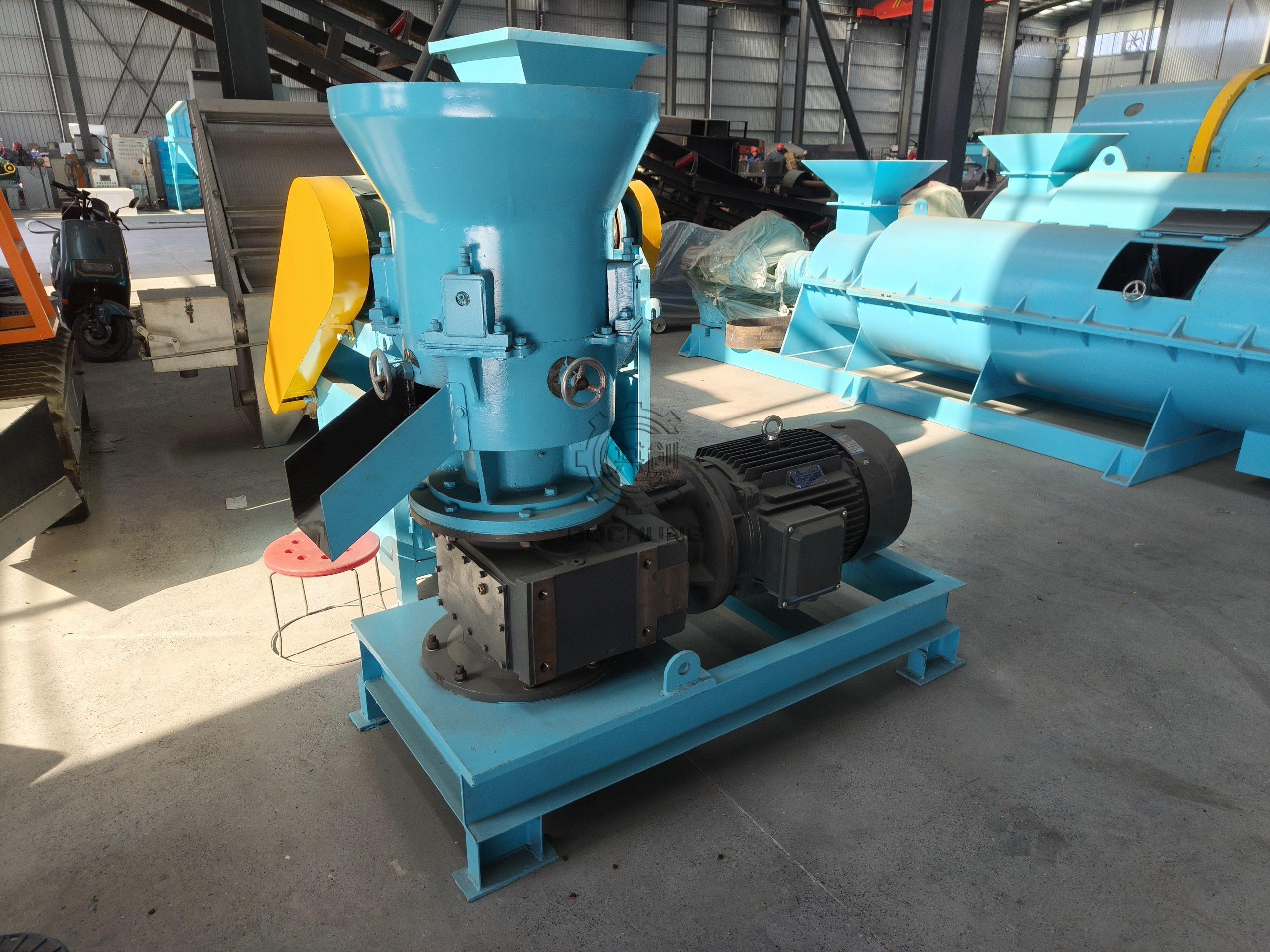

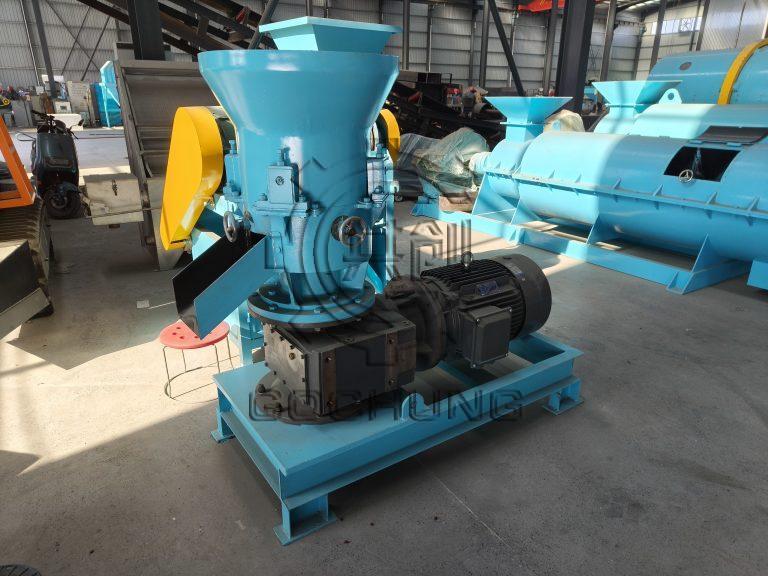

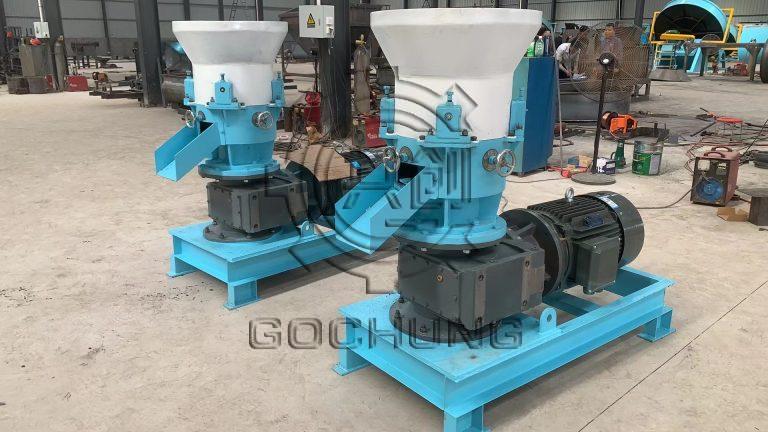

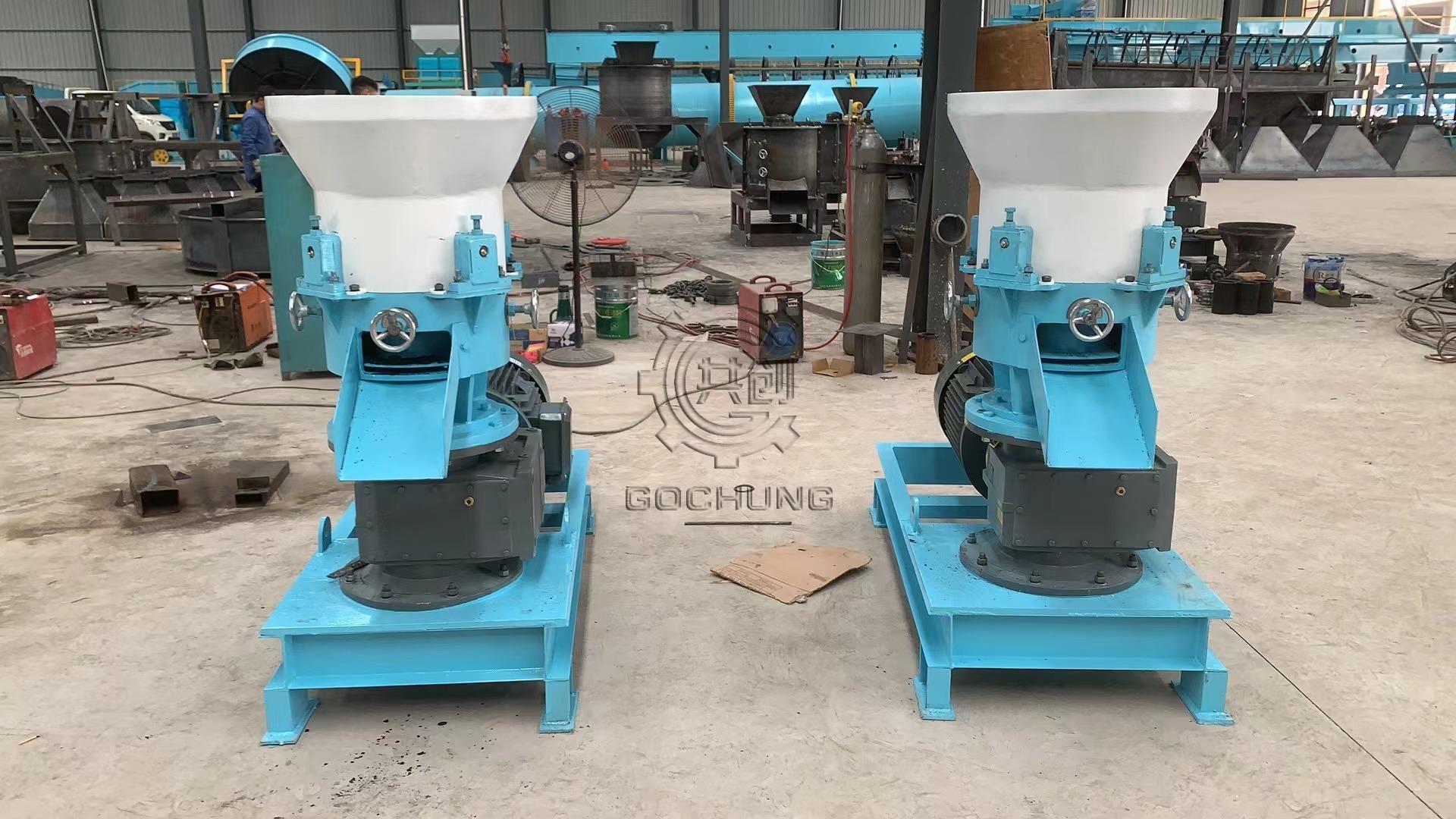

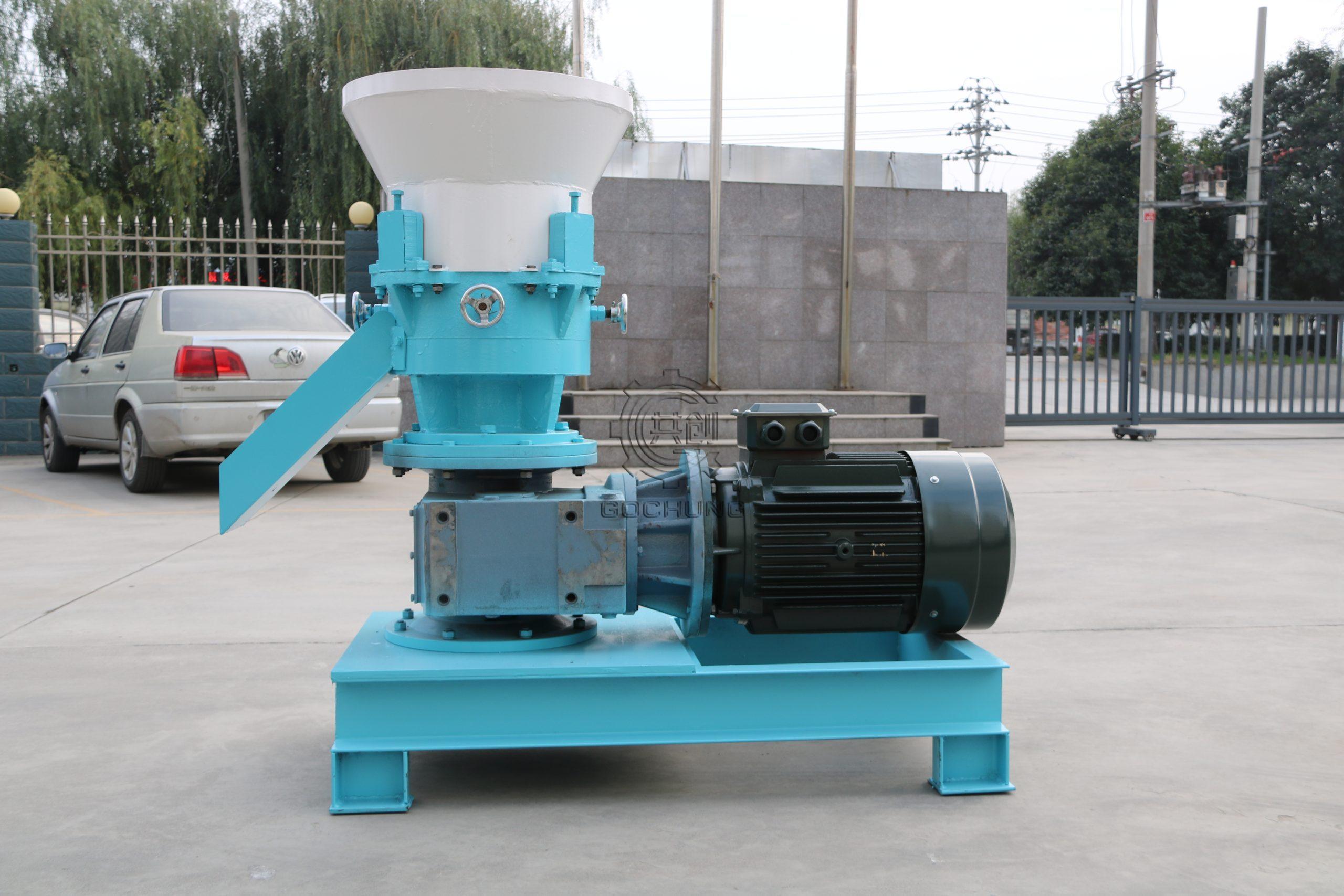

The machine is a multipurpose flat plate roller granulator. It adopts a direct drive to process all kinds of powdery materials into cylindrical particles. It can also shape the cylindrical particles into spherical particles. Furthermore, it has the characteristics of saving power, less power consumption, large output without vibration, and low noise.

Technical parameters

Model SpecificationsSHP-400SHP-400SHP-600SHP-600
Yield (t/h)1-21-32-43-6
Power (kw)22303745
Rotation speed (r/min)208136205116
Transmission modeMotor driveReducer directly connectedMotor driveReducer directly connected
Particle diameter (mm)3-83-83-83-8
Goal formation rate (%)95959595
Length × width × height (mm)1950*780*18001700*700*13002450*900*21002000*950*1500
Weight (kg)78081015001550
