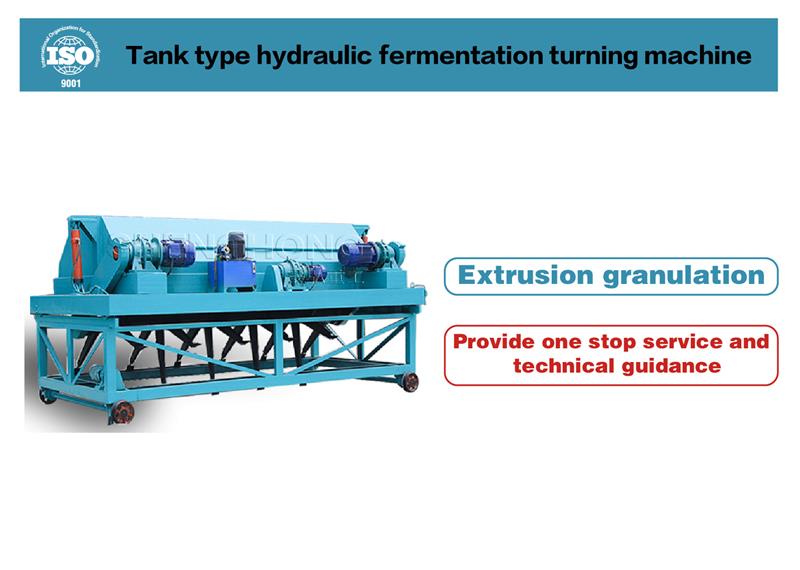

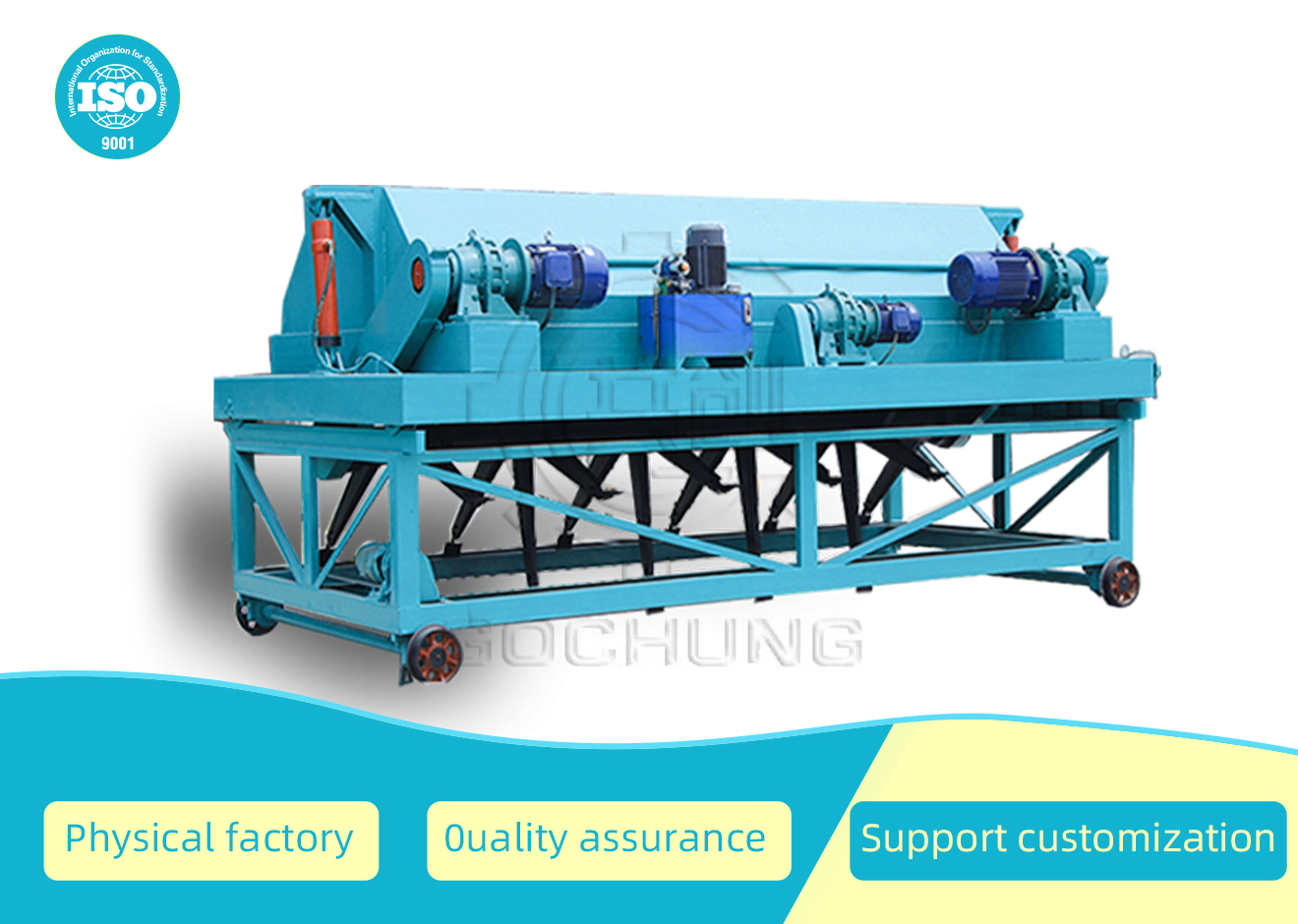

Hydraulic Grooved Turner

Applications:

It is suitable for aerobic fermentation of organic waste such as livestock manure, sludge waste, sugar factory filter mud, dross cake and straw sawdust, and can be used in conjunction with solar fermentation chambers, fermentation tank sand transfer machines.

Applications and Functions

The matching of the main machine and the transfer machine can realize the operation of one machine with multiple slots. Widely used in the fermentation and decomposing of raw materials in organic fertilizer plants, compound fertilizer plants, sludge waste, gardening farms and other industries. The machine has high efficiency, stable operation, durable, and even timing and throwing. Equipped with a limit travel switch to ensure safety and limit operation, and the centralized control of the control cabinet can realize manual or automatic control functions.
The turning machine is equipped with a hydraulic lifting system, and the rake teeth are durable, which is good for fermented materials. There is a certain breaking and mixing function.

Technical parameters

Model Main motor(kw) Travel motor(kw) Lifting motor(kw) Hydraulic pump motor(kw)
SHP-4M 22 1.5 NO NO
SHP-5M 30 2.2 NO NO
SHP-6M 30 2.2 NO NO
SHPY-4M 22 1.5 1.1 4
SHPY-5M 30 1.5 1.5 4
SHPY-6M 37 2.2 1.5 4
