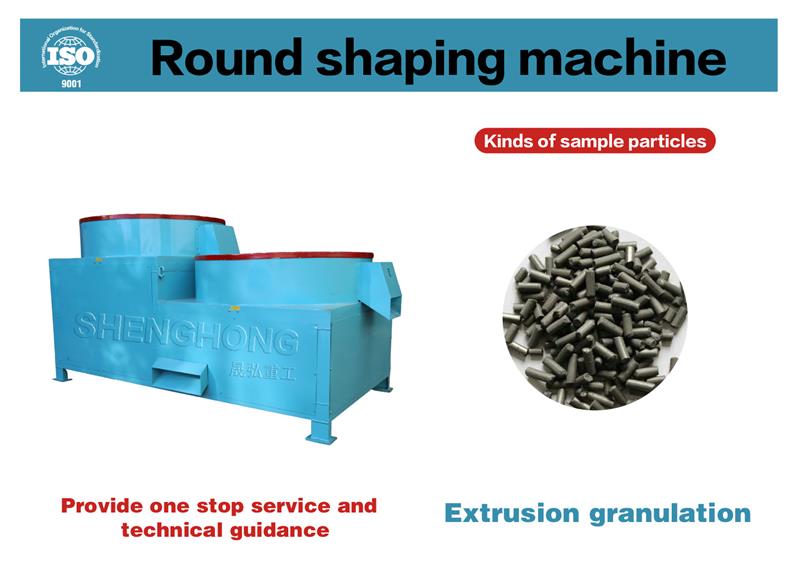

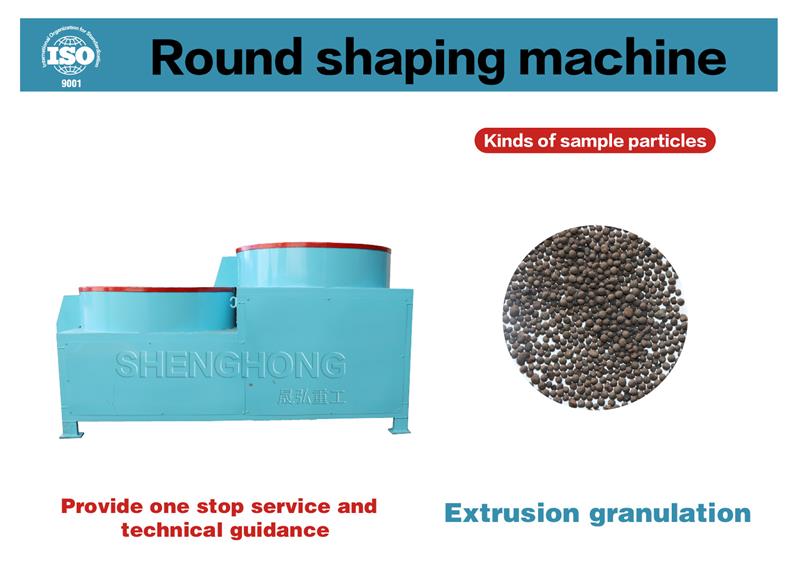

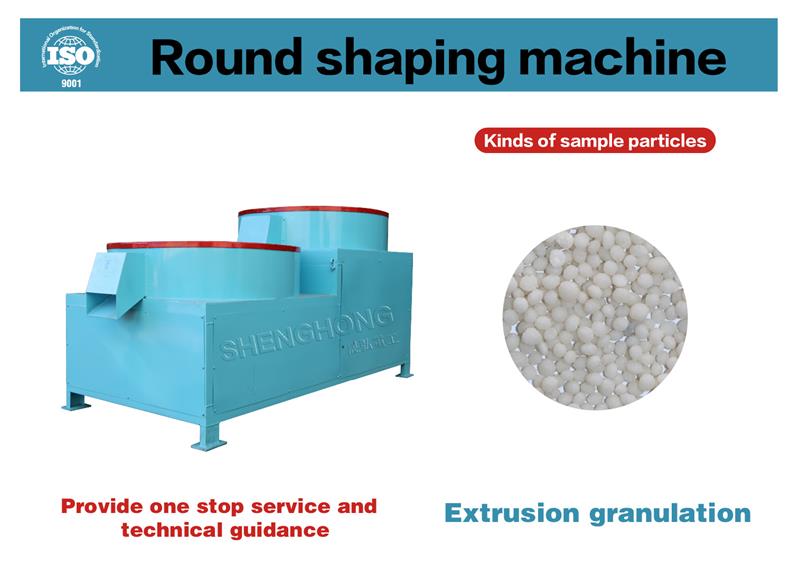

Round Shaping Machine

【Capacity】0.5-12T/H
【Motor Power】4-11kw
【Granular Diameter】3-10mm
【Features】Flowing along the waste port, the machine has the advantages of simple operation, low power consumption and low noise.

Applications and Functions

Round shaping machine in the production process can be combined with organic fertilizer pelletizer, disk pelletizer, flat mold pelletizer and other equipment used at the same time, it is composed of two or three throwing cylinders arranged in sequence, the material after several times of throwing round, finished particles are discharged from the discharge port, the finished particles have the same particle size, round and smooth, and the finished product rate is as high as 98%, and a small amount of fertilizer falls from the disk edge gap of the organic fertilizer throwing round machine.

Technical parameters

ModelSHY-800-2SHY-1000-2SHY-1200-2SHY-1200-3SHY-1500-2SHY-1500-3
Yield (t/h)0.5-22-33-65-86-128-15
Goal formation rate (%)>95>95>95>95>95>95
(℃)<30<30<30<30<30<30
Power (kw)4/45.5/5.57.5/7.57.5/7.5/7.511/1111/11/11
Rotation speed (r/min)296298302305309311
Length × width × height (mm)1920*950*12202180*1080*13202580*1260*13203360*1260*17403350*1640*17404900*1640*2150
Weight (kg)5206401050126521203375
