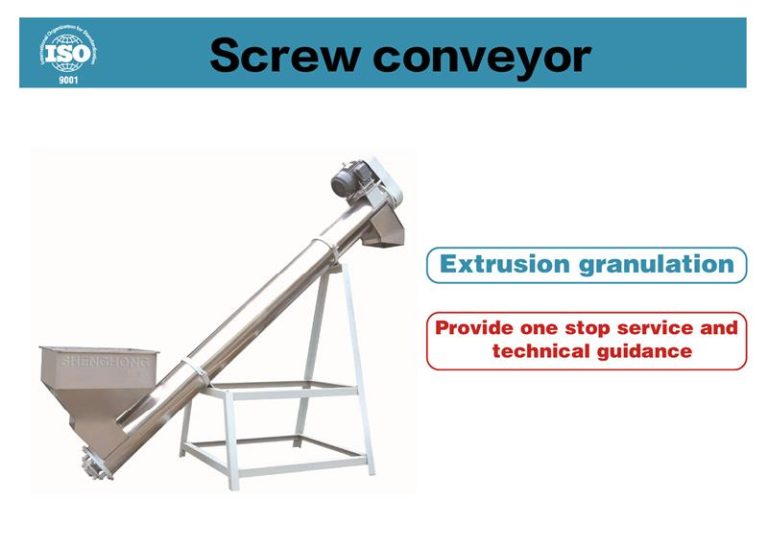

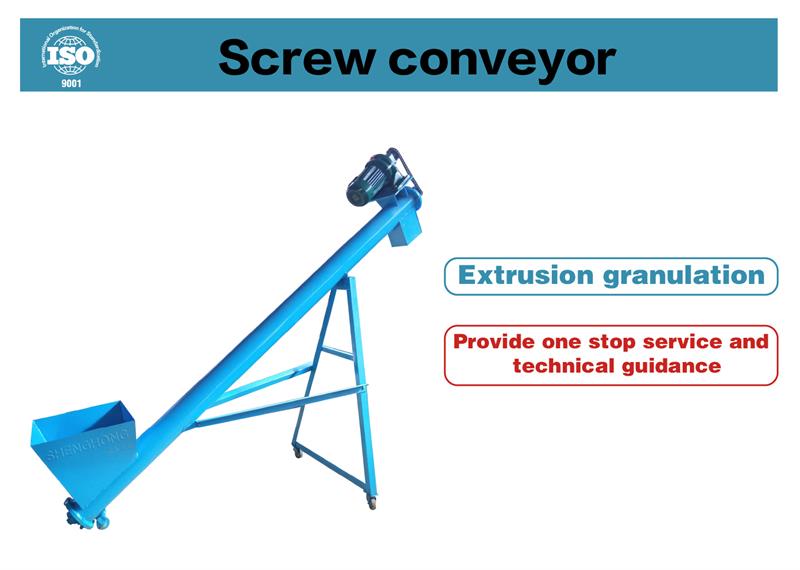

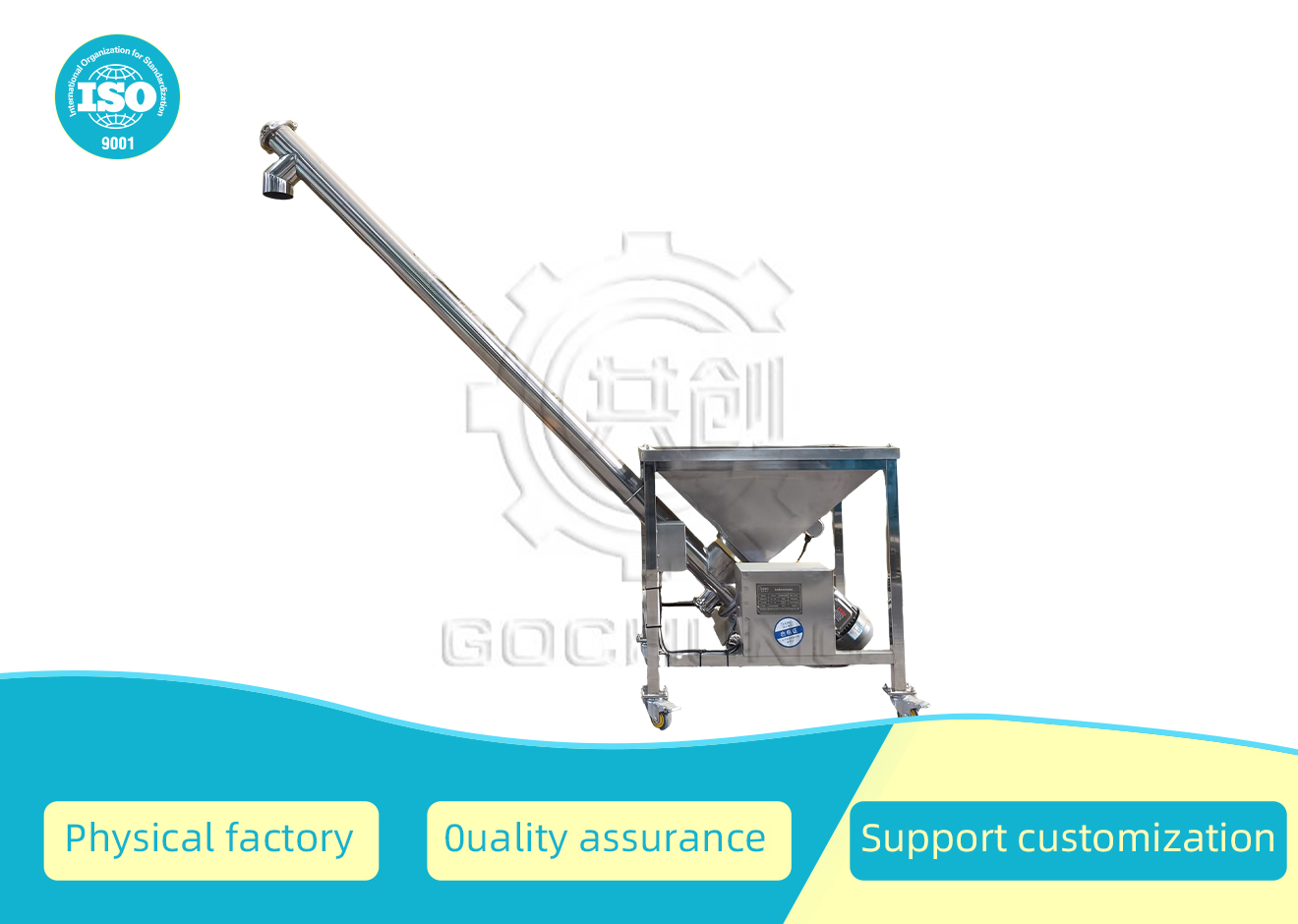

The screw conveyor mainly includes spiral blades, machine grooves, hangers, feeding and discharging ports, transmission devices, and other parts. It is used to transport powdery or small pieces of materials.
Our screw conveyor is widely used in the fertilizer industry, grain transportation, building materials industry, chemical industry, etc. It can transport materials horizontally and obliquely, it is with a simple structure, small cross-sectional area, good sealing, convenient operation, easy maintenance, easily closed transport station, etc.
| Model | SHL160-2.5 | SHL160-4.5 | SHL-200-6 | SHL200-9 | AHL250-9(12) | AHL300-9(12) |
| Spiral diameter (mm) | 160 | 160 | 193 | 193 | 240 | 305 |
| Conveying length (m) | 2.5 | 4.5 | 6 | 9 | 9 | 12 |
| Speed (r/min) | 100 | 100 | 260 | 260 | 216 | 176 |
| Shell diameter (mm) | Φ165 | Φ165 | Φ219 | Φ219 | Φ273 | Φ325 |
| Working Angle（°） | ≤20 | ≤20 | ≤45 | ≤45 | ≤45 | ≤45 |
| Conveying capacity（t/h） | 25 | 25 | 35 | 35 | 50 | 75 |
| Capacity (t/h) | Y100L2-4 | Y112M-4 | Y132M-4 | Y160L-4 | Y160M-4 | Y180L-4 |
| Power | 3 | 4 | 7.5 | 11 | 15 | 18.5 |
