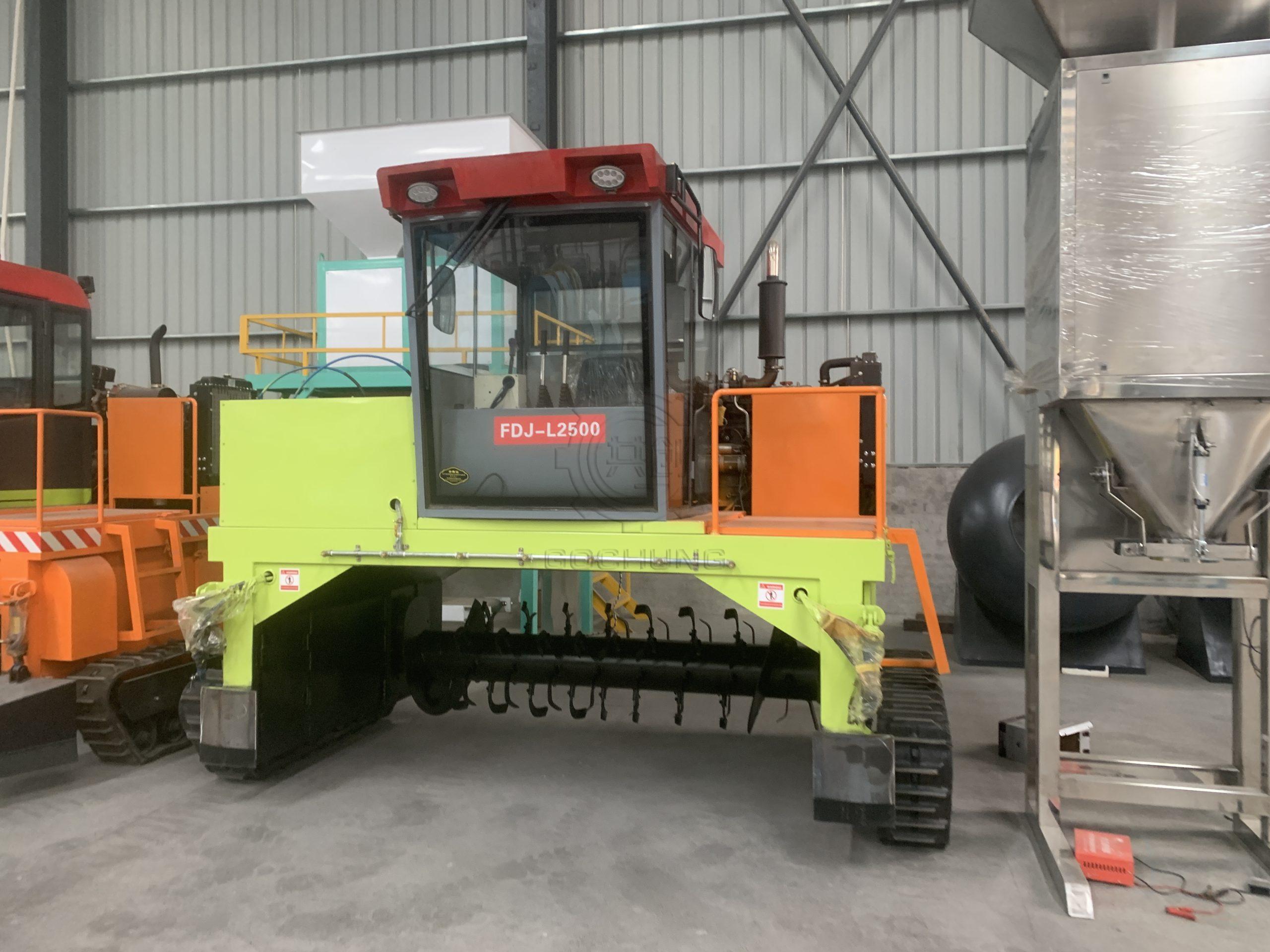

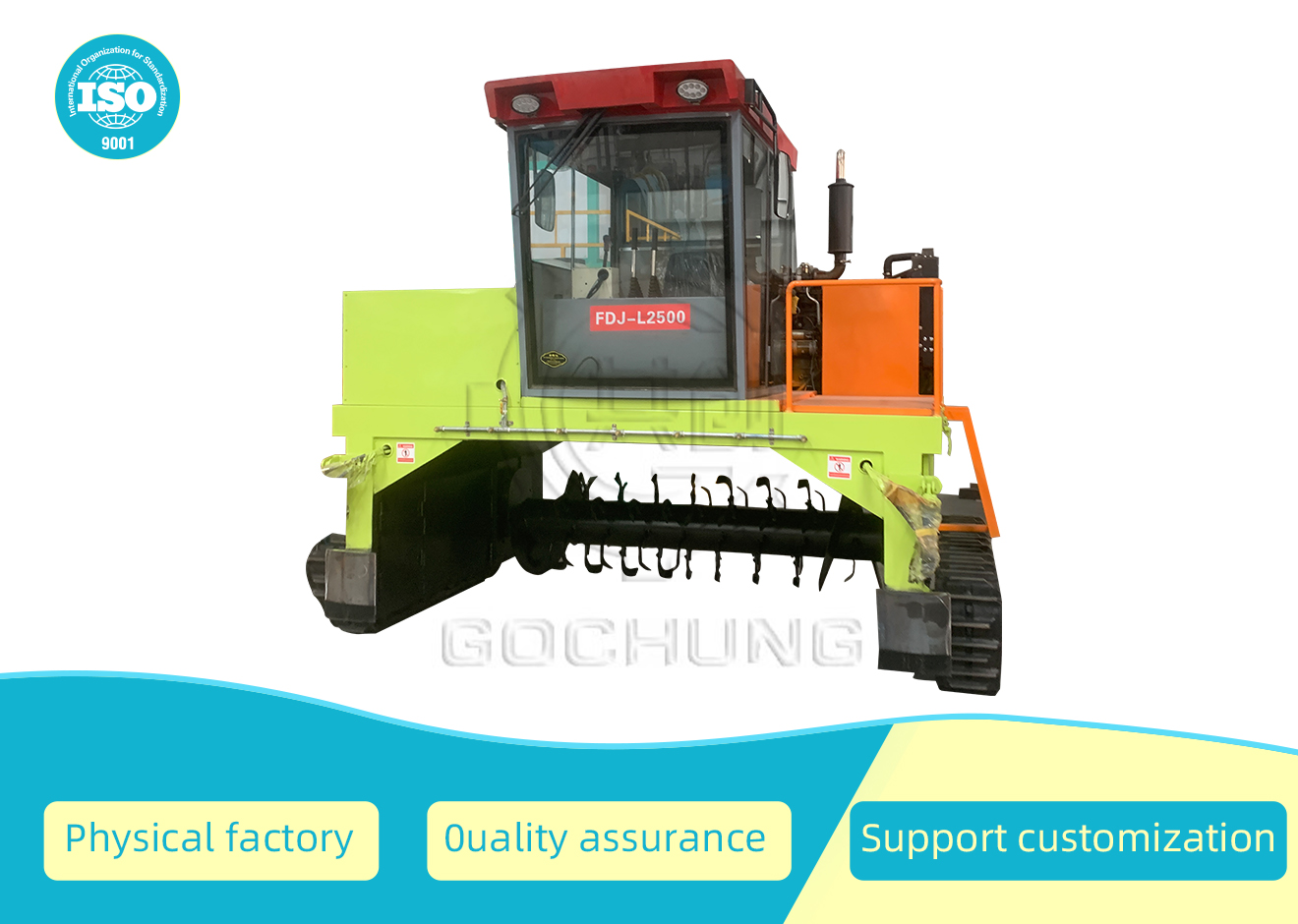

Tracked compost turner dumper is used for ground piling and stacking operations during the fermentation production process. It is a special machine for shaping, crushing, oxygenating and stacking materials.
【Equipment Video】
| Model | FD 2300 | FD 2600 | FD 2800 | FD 3000 |
| flip width(mm) | 2300 | 2600 | 2800 | 3000 |
| Flip width (mm) | 800-1000 | 1000-1200 | 1000-1300 | 1000-1300 |
| Stacking row spacing (m) | 1.0-1.2 | 1.0-1.2 | 1.0-1.2 | 1.0-1.2 |
| Maximum diameter of material particles (mm) | 250 | 250 | 250 | 250 |
| POWER | R4102 Turbocharged | R4108 Turbocharged | R4110 Turbocharged | R6105 Turbocharged |
| 75HP Diesel Engine | 116HP Diesel Engine | 123HP Diesel Engine | 136HP Diesel Engine | |
| Rated power speed | 2200 | 2200 | 2200 | 2200 |
| Working speed | 6-18 | 6-18 | 6-18 | 6-18 |
| Driving speed | 50 | 50 | 50 | 50 |
| Processing power | 400-600 | 600-800 | 800-1000 | 1000-1200 |
| Complete-built unit size | 3.5X2.65X2.8 | 3.9X2.65X3.2 | 4.1X2.65X3.2 | 4.3X2.65X3.2 |
