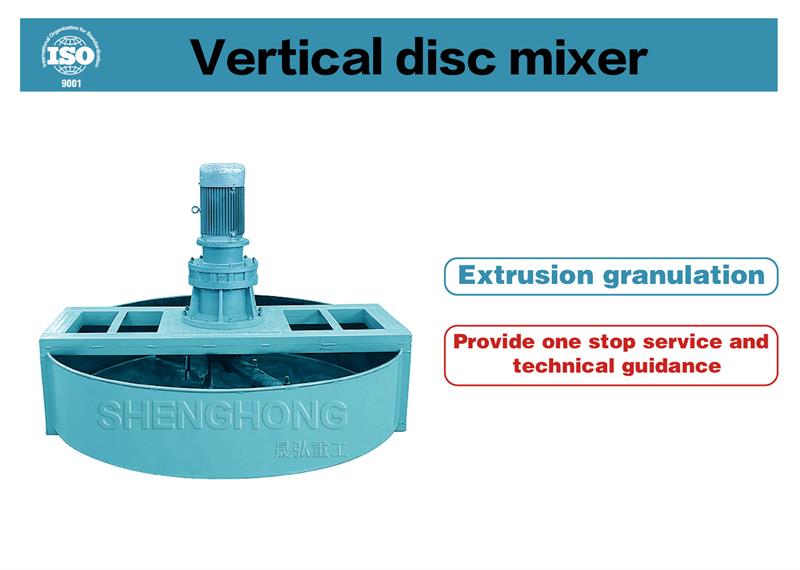

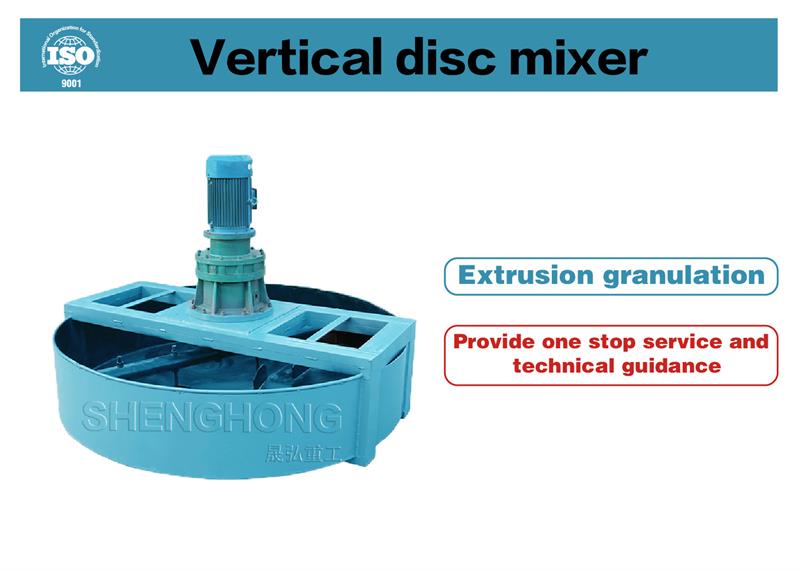

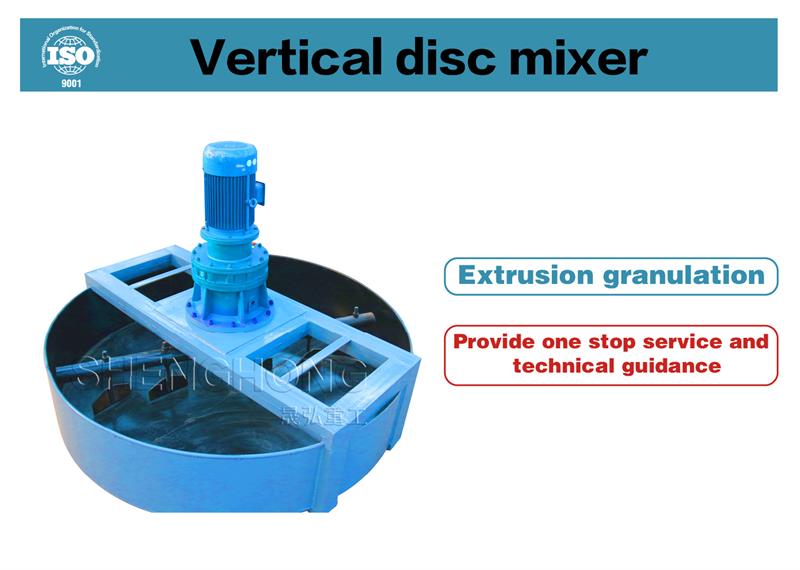

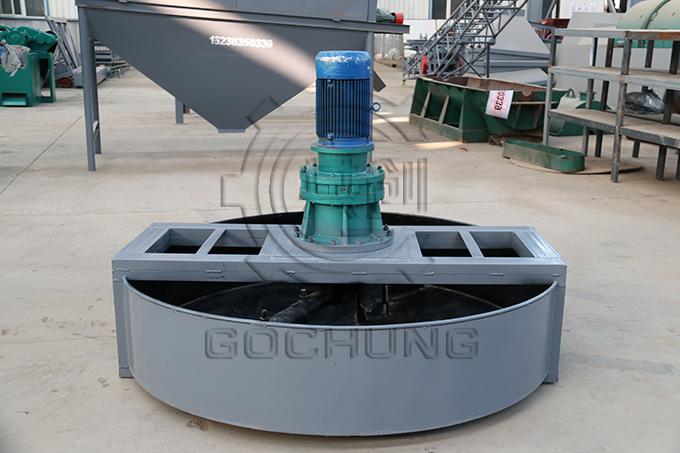

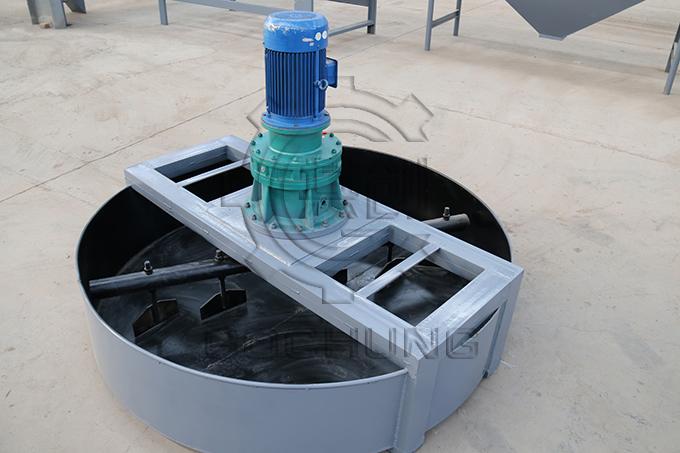

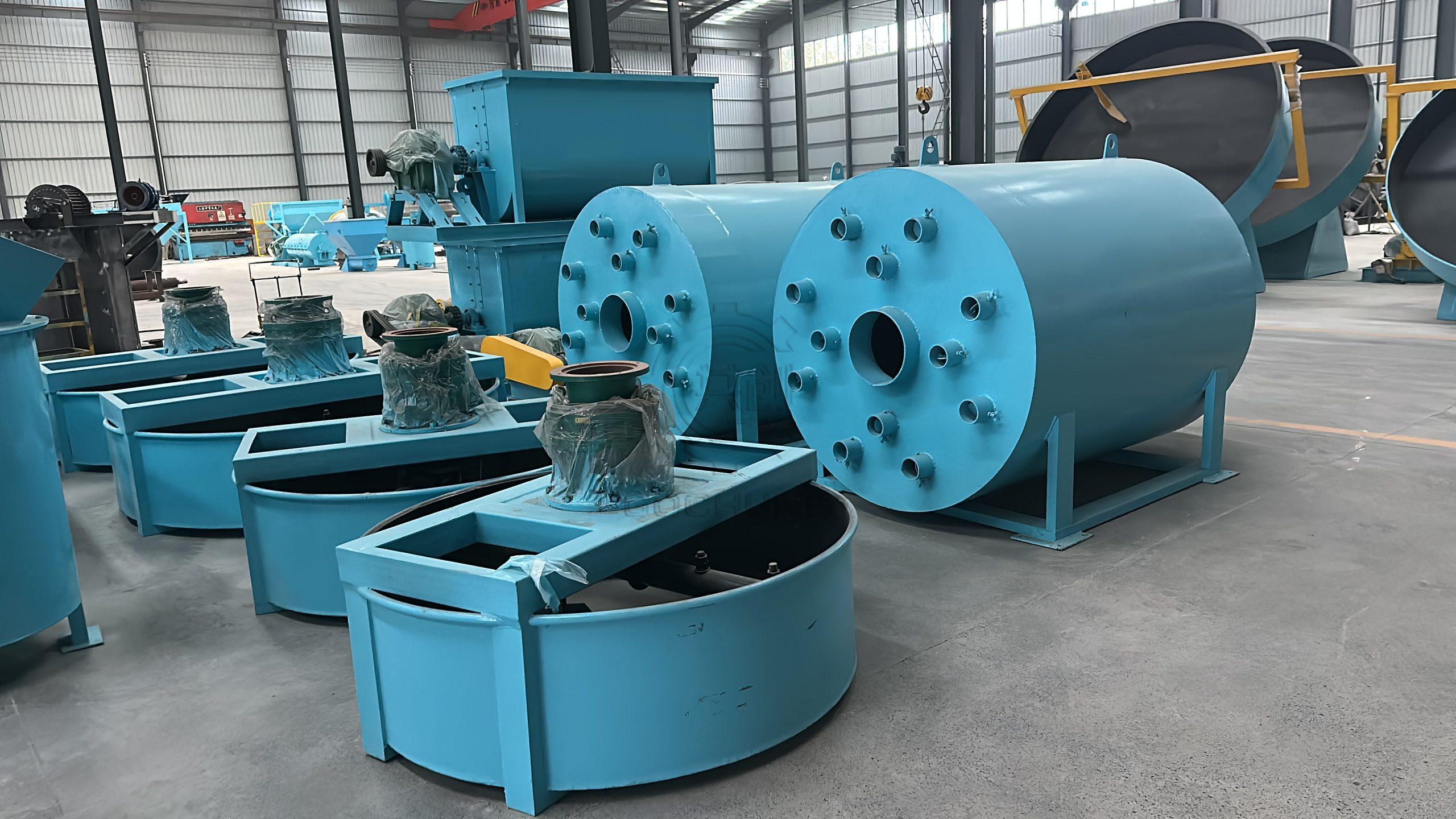

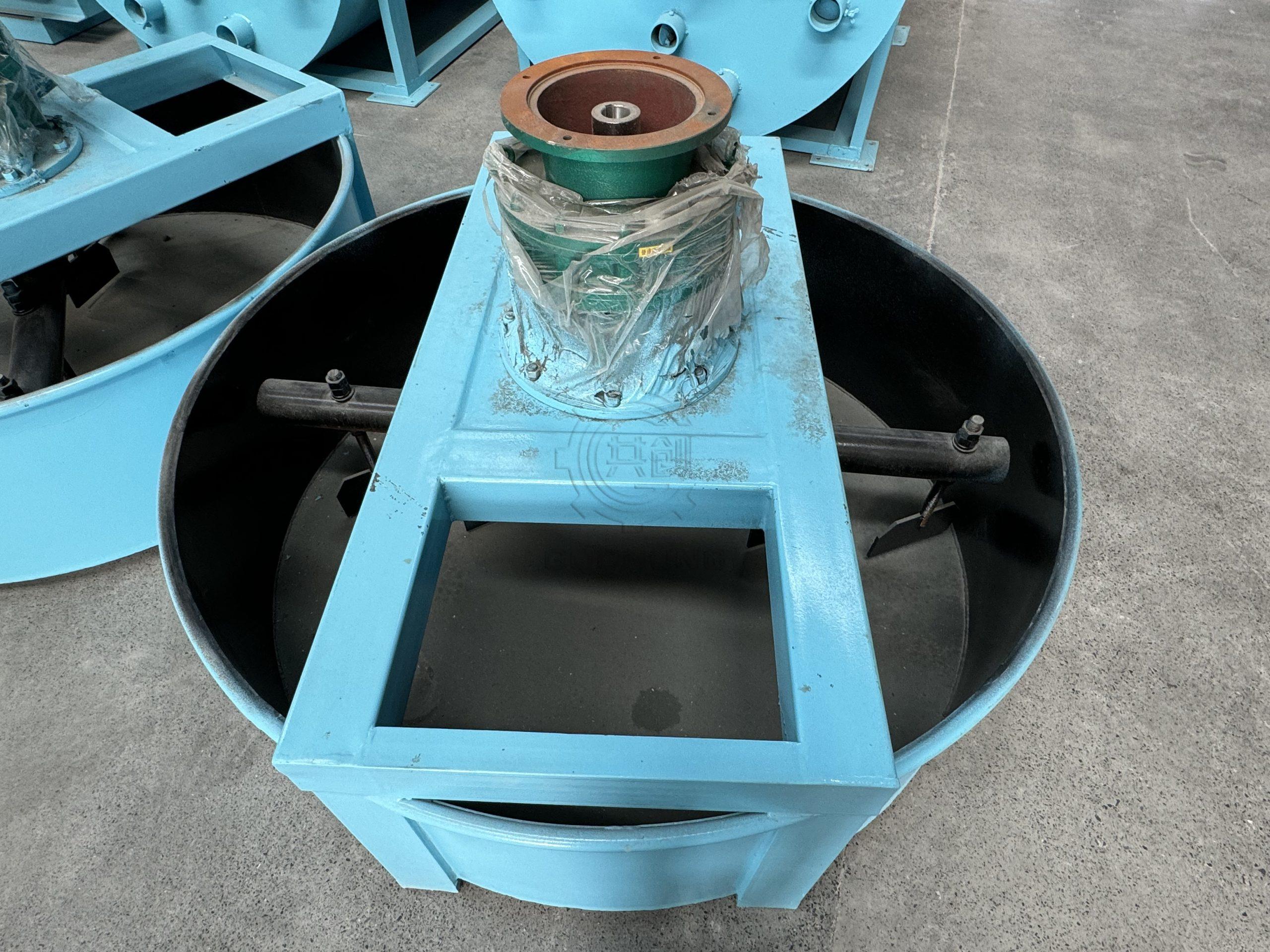

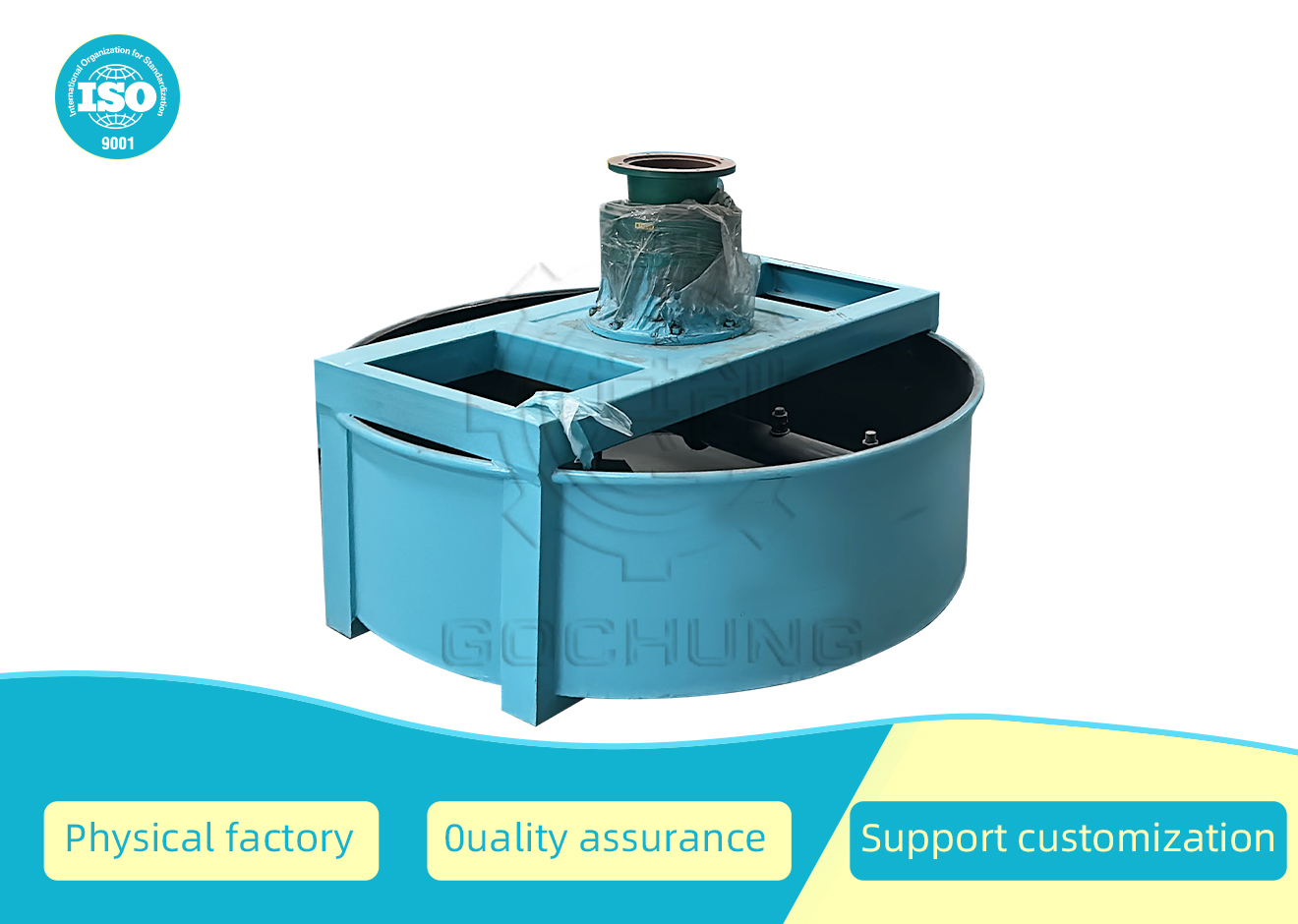

Vertical Disc Mixer

【Capacity】3-16T/H
【Power】5.5-15kw
【Introduction】The vertical disc mixer is a new type of vertical disc mixer, which is composed of a stirring plate, a discharge port, a stirring tube, a frame, a gearbox, and a transmission mechanism.

Applications and Functions

lt is characterized in that the output end of the reducer drives the stirring spindle to make it run. There are fixed stirring teeth on the stirring shaft, and the stirring shaft drives the stirring teeth to fully stir and mix the materials. The mixer has the advantages of long service life, energy saving, small size, fast stirring speed, and continuous work. The machine is used for mixing raw materials, The inner plate can be lined with polypropylene plate or stainless steel plate, which is not easy to stick and is wear-resistant. The use of a cyclical pinwheel reducer gives it the characteristics of a compact structure. Convenient operation, uniform mixing, convenient discharge, and transportation.

Technical parameters

SpecificationsDiameterBi GaoSpeed (r/min)Power (kw)Capacity (t/h)Weight (kg)
YJ16001600400125.53-51200
YJ1800180040010.57.54-61400
YJ2200220050010.5116-101668
YJ2500250055091510-162050
